XLinks and XPointers


XLinks and XPointers

Elliotte Rusty Harold

XML One 2001 London

March 20, 2001

elharo@metalab.unc.edu

http://www.ibiblio.org/xml/


Please turn off all


HTML Hypertext is Limited


XML Hypertext

Linking in XML is divided into multiple parts:


XML Hypertext Example

<?xml version="1.0"?>
<story date="January 9, 2001"
       xmlns:xlink="http://www.w3.org/1999/xlink"
       xmlns:xinclude="http://www.w3.org/1999/XML/xinclude"
       xml:base="http://www.cafeaulait.org/">

  <p>
    The W3C XML Linking Working Group has pushed the
    <link xlink:type="simple"
      xlink:href="http://www.w3.org/TR/2001/WD-xptr-20010108">
      XPointer specification
    </link>
    back to working draft status. The specific issue that was
    uncovered during Candidate Recommendation was some
    <link xlink:type="simple"
      xlink:href="http://www.w3.org/TR/xptr#xpointer(//div[@class='div3'][7])">
      confusion
    </link>
    over how to integrate XPointers, particularly those in non-XML documents,
    with namespaces.
   </p>

   <p>
     It's also come to light in this draft that Sun has
     <link xlink:type="simple"
      xlink:href=
      "http://lists.w3.org/Archives/Public/www-xml-linking-comments/2000OctDec/0092.html"
      >
      claimed a patent</link> on some of the technologies needed to
      implement XPointer. I think this is particularly offensive because Eve
      L. Maler, a Sun employee, served as co-chair of the XML Linking
      Working Group and a co-editor of the XPointer specification. As usual
      Sun wants to use this as a club to lock implementers and users into a
      licensing agreement that goes beyond what Sun and the W3C could
      otherwise demand. The specific patent is <cite>United States Patent
      No. 5,659,729, Method and system for implementing hypertext scroll
      attributes</cite>, issued to Jakob Nielsen in 1997. The patent was
      filed on February 1, 1996. It claims:
  </p>
  <blockquote>
    <xinclude:include
      href=
      "http://www.delphion.com/details?&pn=US05659729__#xpointer(//abstract)"
      >
    </xinclude:include>
  </blockquote>

</story>

Versions

This talk covers:


Part I: XLinks

Once you've tasted XLink's Chunky Monkey, it's hard to reconcile yourself to HTML's vanilla.
--John E. Simpson on the xsl-list mailing list


XLinks are More Powerful


Application Support


Linking Elements


For example

<FOOTNOTE xmlns:xlink="http://www.w3.org/1999/xlink"
          xlink:type="simple"
          xlink:href="footnote7.xml">7</FOOTNOTE>
<COMPOSER xmlns:xlink="http://www.w3.org/1999/xlink"
          xlink:type="simple"
          xlink:href="http://www.interport.net/~beand/">
    Beth Anderson
</COMPOSER>
<IMAGE xmlns:xlink="http://www.w3.org/1999/xlink"
       xlink:type="simple" xlink:href="logo.gif"/>

Declaring XLink Attributes in DTDs

<!ELEMENT FOOTNOTE (#PCDATA)>
<!ATTLIST FOOTNOTE
  xmlns:xlink CDATA #FIXED "http://www.w3.org/1999/xlink"
  xlink:type  CDATA #FIXED "simple"
  xlink:href  CDATA #REQUIRED
>
<!ELEMENT COMPOSER (#PCDATA)>
<!ATTLIST COMPOSER
  xmlns:xlink CDATA #FIXED "http://www.w3.org/1999/xlink"
  xlink:type  CDATA #FIXED "simple"
  xlink:href  CDATA #REQUIRED
>
<!ELEMENT IMAGE EMPTY>
<!ATTLIST IMAGE
  xmlns:xlink CDATA #FIXED "http://www.w3.org/1999/xlink"
  xlink:type  CDATA #FIXED "simple"
  xlink:href  CDATA #REQUIRED
>

Fixed Attributes

<FOOTNOTE xlink:href="footnote7.xml">7</FOOTNOTE>
<COMPOSER xlink:href="http://www.interport.net/~beand/">
  Beth Anderson
</COMPOSER>
<IMAGE xlink:href="logo.gif"/>

Other Attributes

<!ELEMENT IMAGE EMPTY>
<!ATTLIST IMAGE
  xmlns:xlink CDATA #FIXED "http://www.w3.org/1999/xlink"
  xlink:type  CDATA #FIXED "simple"
  xlink:href  CDATA #REQUIRED
  ALT         CDATA #REQUIRED
  HEIGHT      CDATA #REQUIRED
  WIDTH       CDATA #REQUIRED
>

Descriptions of the Remote Resource


Link Behavior

Linking elements can contain two more optional attributes that suggest to applications how the remote resource is associated with the current page. These are:


xlink:show


xlink:actuate

A linking element's xlink:actuate attribute has four predefined values:

<IMAGE
  xmlns:xlink="http://www.w3.org/1999/xlink"
       xlink:type="simple" xlink:href="logo.gif"
       xlink:actuate="onLoad"/>

Like all attributes in valid documents, the actuate attribute must be declared in the DTD in a <!ATTLIST> declaration for the link elements in which it appears. For example:

<!ELEMENT IMAGE EMPTY>
<!ATTLIST IMAGE
 xmlns:xlink CDATA #FIXED "http://www.w3.org/1999/xlink"
  xlink:type CDATA #FIXED "simple"
  xlink:href CDATA #REQUIRED
  xlink:show    (new | replace | embed) "embed"
  xlink:actuate (onRequest | onLoad)    "onLoad"
>

Parameter Entities for Link Attributes

<!ENTITY % link-attributes
   "xlink:type     CDATA  #FIXED 'simple'
    xlink:role     CDATA  #IMPLIED
    xlink:title    CDATA  #IMPLIED

    xmlns:xlink    CDATA  #FIXED 'http://www.w3.org/1999/xlink'
    xlink:href     CDATA  #REQUIRED
    xlink:show     (new | replace | embed) 'replace'
    xlink:actuate  (onRequest | onLoad)    'onRequest'"
>

<!ELEMENT COMPOSER (#PCDATA)>
<!ATTLIST COMPOSER
    %link-attributes;
>
<!ELEMENT AUTHOR (#PCDATA)>
<!ATTLIST AUTHOR
    %link-attributes;
>
<!ELEMENT WEBSITE (#PCDATA)>
<!ATTLIST WEBSITE
    %link-attributes;
>

Extended Links


Extended Links

<WEBSITE xmlns:xlink="http://www.w3.org/1999/xlink"
         xlink:type="extended">
 ...
</WEBSITE>

Resources


Resource Example

<WEBSITE xmlns:xlink="http://www.w3.org/1999/xlink"
         xlink:type="extended">
  <NAME xlink:type="resource">Cafe au Lait</NAME>
  <HOMESITE xlink:type="locator"
            xlink:href="http://ibiblio.org/javafaq/"/>
  <MIRROR xlink:type="locator"
          xlink:href="http://sunsite.kth.se/javafaq"/>
  <MIRROR xlink:type="locator"
          xlink:href="http://sunsite.informatik.rwth-aachen.de/javafaq/"/>
  <MIRROR xlink:type="locator"
          xlink:href="http://sunsite.cnlab-switch.ch/javafaq/"/>
</WEBSITE>

This WEBSITE element describes an extended link with five resources:

Since one of the resources referenced by this extended link is contained in the extended link, it is called an inline link. It will be included as part of one of the documents it connects.

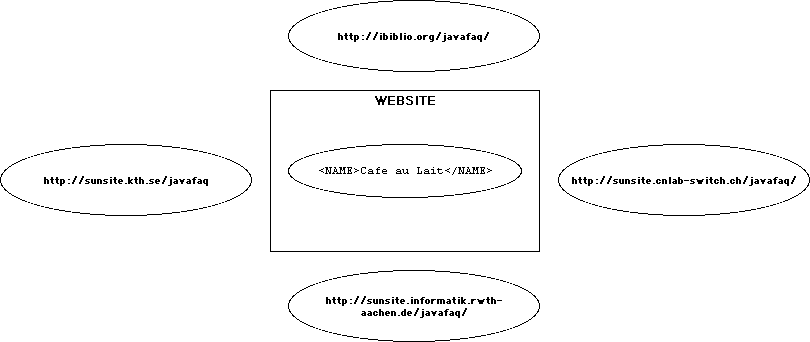

Resource Example Diagram

This picture shows the WEBSITE extended link element and five resources, one of which WEBSITE contains, the other four of which are referred to by URLs. However, this just describes these resources. No connections are implied between them.

Four local and one remote resource with no connections

Roles and Titles for Resources

<WEBSITE xmlns:xlink="http://www.w3.org/1999/xlink"
         xlink:type="extended" xlink:title="Cafe au Lait">
  <NAME xlink:type="resource"
        xlink:role="http://ibiblio.org/javafaq/">
    Cafe au Lait
  </NAME>
  <HOMESITE xlink:type="locator"
          xlink:href="http://ibiblio.org/javafaq/"
          xlink:role="http://ibiblio.org/"/>
  <MIRROR xlink:type="locator"
         xlink:title="Cafe au Lait Swedish Mirror"
         xlink:role="http://sunsite.kth.se/"
         xlink:href="http://sunsite.kth.se/javafaq"/>
  <MIRROR xlink:type="locator"
         xlink:title="Cafe au Lait German Mirror"
         xlink:role="http://sunsite.informatik.rwth-aachen.de/"
         xlink:href=
          "http://sunsite.informatik.rwth-aachen.de/javafaq/"/>
  <MIRROR xlink:type="locator"
         xlink:title="Cafe au Lait Swiss Mirror"
         xlink:role="http://sunsite.cnlab-switch.ch/"
         xlink:href="http://sunsite.cnlab-switch.ch/javafaq/"/>
</WEBSITE>

DTD for Extended Links

<!ELEMENT WEBSITE (NAME, HOMESITE, MIRROR*) >
<!ATTLIST WEBSITE
  xmlns:xlink  CDATA     #FIXED "http://www.w3.org/1999/xlink"
  xlink:type  (extended) #FIXED  "extended"
  xlink:title  CDATA     #IMPLIED
  xlink:role   CDATA     #IMPLIED
>

<!ELEMENT NAME (#PCDATA)>
<!ATTLIST NAME
   xlink:type  (resource) #FIXED    "resource"
   xlink:role   CDATA     #IMPLIED
   xlink:title  CDATA     #IMPLIED
>

<!ELEMENT HOMESITE (#PCDATA)>
<!ATTLIST HOMESITE
   xlink:type  (locator)  #FIXED    "locator"
   xlink:href   CDATA     #REQUIRED
   xlink:role   CDATA     #IMPLIED
   xlink:title  CDATA     #IMPLIED
>

<!ELEMENT MIRROR (#PCDATA)>
<!ATTLIST MIRROR
   xlink:type  (locator)  #FIXED    "locator"
   xlink:href   CDATA     #REQUIRED
   xlink:role   CDATA     #IMPLIED
   xlink:title  CDATA     #IMPLIED
>

Another Shortcut for the DTD

<!ENTITY % extended.att
  "xlink:type   CDATA    #FIXED 'extended'
   xmlns:xlink  CDATA    #FIXED 'http://www.w3.org/1999/xlink'
   xlink:role   CDATA    #IMPLIED
   xlink:title  CDATA    #IMPLIED"
>

<!ENTITY % resource.att
  "xlink:type (resource) #FIXED  'resource'
   xlink:href    CDATA   #REQUIRED
   xlink:role    CDATA   #IMPLIED
   xlink:title   CDATA   #IMPLIED"
>

<!ENTITY % locator.att
  "xlink:type (locator)  #FIXED  'locator'
   xlink:href    CDATA   #REQUIRED
   xlink:role    CDATA   #IMPLIED
   xlink:title   CDATA   #IMPLIED"
>

<!ELEMENT WEBSITE (HOMESITE, MIRROR*) >
<!ATTLIST WEBSITE
   %extended.att;
>

<!ELEMENT NAME (#PCDATA)>
<!ATTLIST NAME
   %resource.att;
>

<!ELEMENT HOMESITE (#PCDATA)>
<!ATTLIST HOMESITE
   %locator.att;
>

<!ELEMENT MIRROR (#PCDATA)>
<!ATTLIST MIRROR
   %locator.att;
>

Arcs


Arc Example

<?xml version="1.0"?>
<WEBSITE xmlns:xlink="http://www.w3.org/1999/xlink"
         xlink:type="extended" xlink:title="Cafe au Lait">

  <NAME xlink:type="resource" xlink:label="source">
    Cafe au Lait
  </NAME>

  <HOMESITE xlink:type="locator"
            xlink:href="http://ibiblio.org/javafaq/"
            xlink:label="us"/>

  <MIRROR xlink:type="locator"
          xlink:title="Cafe au Lait Swedish Mirror"
          xlink:label="se"
          xlink:href="http://sunsite.kth.se/javafaq"/>

  <MIRROR xlink:type="locator"
          xlink:title="Cafe au Lait German Mirror"
          xlink:label="de"
          xlink:href="http://sunsite.informatik.rwth-aachen.de/javafaq/"/>

  <MIRROR xlink:type="locator"
          xlink:title="Cafe au Lait Swiss Mirror"
          xlink:label="ch"
          xlink:href="http://sunsite.cnlab-switch.ch/javafaq/"/>

  <CONNECTION xlink:type="arc" xlink:from="source"
              xlink:to="ch"    xlink:show="replace"
              xlink:actuate="onRequest"/>
  <CONNECTION xlink:type="arc" xlink:from="source"
              xlink:to="us"    xlink:show="replace"
              xlink:actuate="onRequest"/>
  <CONNECTION xlink:type="arc" xlink:from="source"
              xlink:to="se"    xlink:show="replace"
              xlink:actuate="onRequest"/>
  <CONNECTION xlink:type="arc" xlink:from="source"
              xlink:to="sk"    xlink:show="replace"
              xlink:actuate="onRequest"/>

</WEBSITE>

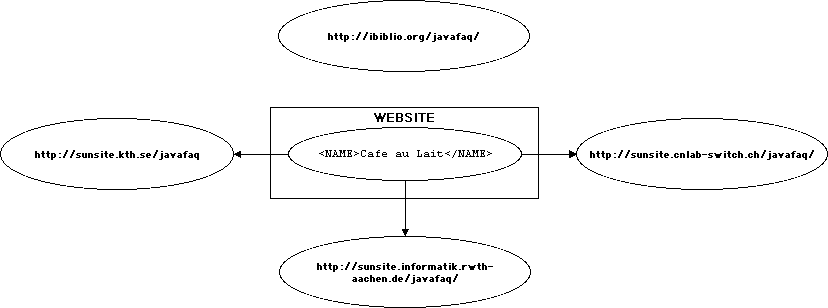

Arc Example Diagram

An extended link with arcs

Arc Example

<WEBSITE xmlns:xlink="http://www.w3.org/1999/xlink"
         xlink:type="extended" xlink:title="Cafe au Lait">

  <NAME xlink:type="resource" xlink:label="source">
    Cafe au Lait
  </NAME>

  <HOMESITE xlink:type="locator"
           xlink:href="http://ibiblio.org/javafaq/"
           xlink:label="us"/>

  <MIRROR xlink:type="locator"
         xlink:title="Cafe au Lait Swedish Mirror"
         xlink:label="mirror"
         xlink:href="http://sunsite.kth.se/javafaq"/>

  <MIRROR xlink:type="locator"
         xlink:title="Cafe au Lait German Mirror"
         xlink:label="mirror"
         xlink:href="http://sunsite.informatik.rwth-aachen.de/javafaq/"/>

  <MIRROR xlink:type="locator"
         xlink:title="Cafe au Lait Swiss Mirror"
         xlink:label="mirror"
         xlink:href="http://sunsite.cnlab-switch.ch/javafaq/"/>

  <CONNECTION xlink:type="arc"  xlink:from="source"
              xlink:to="mirror" xlink:show="replace"
              xlink:actuate="onRequest"/>

</WEBSITE>

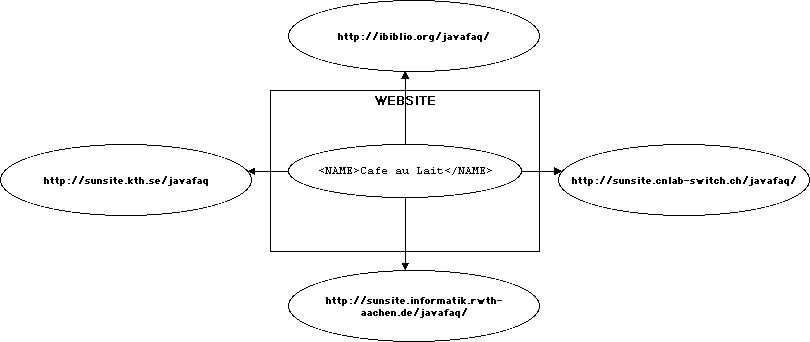

Arc Example Diagram

mirror role diagram

Arc Example with omitted to attribute

<?xml version="1.0"?>
<WEBSITE xmlns:xlink="http://www.w3.org/1999/xlink"
         xlink:type="extended" xlink:title="Cafe au Lait">

  <NAME xlink:type="resource" xlink:label="source">
    Cafe au Lait
  </NAME>

  <HOMESITE xlink:type="locator"
            xlink:href="http://ibiblio.org/javafaq/"
            xlink:label="us"/>

  <MIRROR xlink:type="locator"
          xlink:title="Cafe au Lait Swedish Mirror"
          xlink:label="se"
          xlink:href="http://sunsite.kth.se/javafaq"/>

  <MIRROR xlink:type="locator"
          xlink:title="Cafe au Lait German Mirror"
          xlink:label="sk"
          xlink:href="http://sunsite.informatik.rwth-aachen.de/javafaq/"/>

  <MIRROR xlink:type="locator"
          xlink:title="Cafe au Lait Swiss Mirror"
          xlink:label="ch"
          xlink:href="http://sunsite.cnlab-switch.ch/javafaq/"/>

  <xlink:arc from="source" show="new" actuate="onRequest"/>

  <CONNECTION xlink:type="arc" xlink:from="source"
              xlink:show="replace" xlink:actuate="onRequest"/>

</WEBSITE>

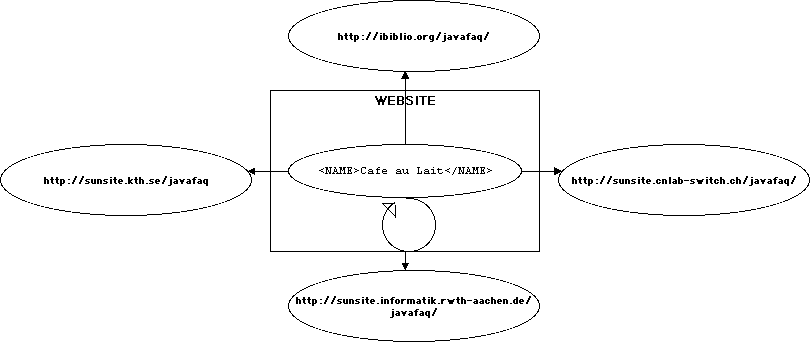

Arc Example Diagram

Arcs can return to the same resource they started from

Arc DTD Fragment

<!ELEMENT WEBSITE (HOMESITE, MIRROR*, xlink:arc*) >
<!ATTLIST WEBSITE
  xmlns:xlink  CDATA  #FIXED "http://www.w3.org/1999/xlink"
  xlink:type  (extended) #FIXED  "extended"
  xlink:title  CDATA     #IMPLIED
  xlink:label  CDATA     #IMPLIED
>

<!ELEMENT HOMESITE (#PCDATA)>
<!ATTLIST HOMESITE
   xlink:type     (locator) #FIXED  "locator"
   xlink:href      CDATA    #REQUIRED
   xlink:label     CDATA    #REQUIRED
   xlink:title     CDATA    #IMPLIED
>

<!ELEMENT MIRROR (#PCDATA)>
<!ATTLIST MIRROR
   xlink:type     (locator) #FIXED  "locator"
   xlink:href      CDATA    #REQUIRED
   xlink:label     CDATA    #REQUIRED
   xlink:title     CDATA    #IMPLIED
>

<!ELEMENT xlink:arc EMPTY>
<!ATTLIST CONNECTION
  xlink:type     (arc)               #FIXED   "arc"
  xlink:from     CDATA               #IMPLIED
  xlink:to       CDATA               #IMPLIED
  xlink:show    (replace)            "replace"
  xlink:actuate (onRequest | onLoad) "onRequest"
>

Out-of-Line Links

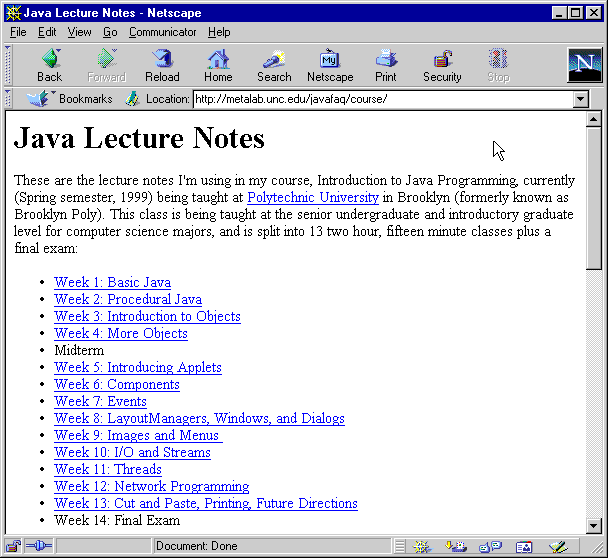

Out of line Link example

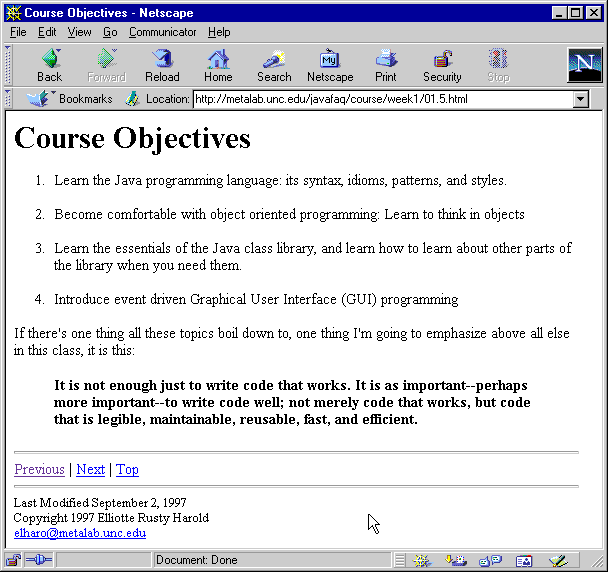

Out of line Link example


Out of line Link Example

<COURSE xmlns:xlink="http://www.w3.org/1999/xlink"
         xlink:type="extended">

  <TOC xlink:type="locator"
          xlink:href="http://www.ibiblio.org/javafaq/course/"
          xlink:label="index"/>

  <CLASS xlink:type="locator" xlink:label="class" xlink:label="class"
         xlink:href="http://www.ibiblio.org/javafaq/course/week1.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="http://www.ibiblio.org/javafaq/course/week2.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="http://www.ibiblio.org/javafaq/course/week3.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="http://www.ibiblio.org/javafaq/course/week4.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="http://www.ibiblio.org/javafaq/course/week5.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="http://www.ibiblio.org/javafaq/course/week6.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="http://www.ibiblio.org/javafaq/course/week7.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="http://www.ibiblio.org/javafaq/course/week8.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="http://www.ibiblio.org/javafaq/course/week9.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="http://www.ibiblio.org/javafaq/course/week10.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="http://www.ibiblio.org/javafaq/course/week11.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="http://www.ibiblio.org/javafaq/course/week12.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="http://www.ibiblio.org/javafaq/course/week13.xml"/>

  <CONNECTION xlink:type="arc" from="index" to="class"/>
  <CONNECTION xlink:type="arc" from="class" to="index"/>

</COURSE>

Another Out of line Link Example

<COURSE xmlns:xlink="http://www.w3.org/1999/xlink"
         xlink:type="extended">

  <CLASS xlink:type="locator" xlink:label="1"
         xlink:href="http://www.ibiblio.org/javafaq/course/week1.xml"/>
  <CLASS xlink:type="locator" xlink:label="2"
         xlink:href="http://www.ibiblio.org/javafaq/course/week2.xml"/>
  <CLASS xlink:type="locator" xlink:label="3"
         xlink:href="http://www.ibiblio.org/javafaq/course/week3.xml"/>
  <CLASS xlink:type="locator" xlink:label="4"
         xlink:href="http://www.ibiblio.org/javafaq/course/week4.xml"/>
  <CLASS xlink:type="locator" xlink:label="5"
         xlink:href="http://www.ibiblio.org/javafaq/course/week5.xml"/>
  <CLASS xlink:type="locator" xlink:label="6"
         xlink:href="http://www.ibiblio.org/javafaq/course/week6.xml"/>
  <CLASS xlink:type="locator"  xlink:label="7"
         xlink:href="http://www.ibiblio.org/javafaq/course/week7.xml"/>
  <CLASS xlink:type="locator"   xlink:label="8"
         xlink:href="http://www.ibiblio.org/javafaq/course/week8.xml"/>
  <CLASS xlink:type="locator" xlink:label="9"
         xlink:href="http://www.ibiblio.org/javafaq/course/week9.xml"/>
  <CLASS xlink:type="locator"  xlink:label="10"
         xlink:href="http://www.ibiblio.org/javafaq/course/week10.xml"/>
  <CLASS xlink:type="locator" xlink:label="11"
         xlink:href="http://www.ibiblio.org/javafaq/course/week11.xml"/>
  <CLASS xlink:type="locator" xlink:label="12"
         xlink:href="http://www.ibiblio.org/javafaq/course/week12.xml"/>
  <CLASS xlink:type="locator" xlink:label="13"
         xlink:href="http://www.ibiblio.org/javafaq/course/week13.xml"/>

  <!-- Previous Links -->
  <CONNECTION xlink:type="arc" xlink:from="2" xlink:to="1"/>
  <CONNECTION xlink:type="arc" xlink:from="3" xlink:to="2"/>
  <CONNECTION xlink:type="arc" xlink:from="4" xlink:to="3"/>
  <CONNECTION xlink:type="arc" xlink:from="5" xlink:to="4"/>
  <CONNECTION xlink:type="arc" xlink:from="6" xlink:to="5"/>
  <CONNECTION xlink:type="arc" xlink:from="7" xlink:to="6"/>
  <CONNECTION xlink:type="arc" xlink:from="8" xlink:to="7"/>
  <CONNECTION xlink:type="arc" xlink:from="9" xlink:to="8"/>
  <CONNECTION xlink:type="arc" xlink:from="10" xlink:to="9"/>
  <CONNECTION xlink:type="arc" xlink:from="11" xlink:to="10"/>
  <CONNECTION xlink:type="arc" xlink:from="12" xlink:to="11"/>
  <CONNECTION xlink:type="arc" xlink:from="13" xlink:to="12"/>

  <!-- Next Links -->
  <CONNECTION xlink:type="arc" xlink:from="1" xlink:to="2"/>
  <CONNECTION xlink:type="arc" xlink:from="2" xlink:to="3"/>
  <CONNECTION xlink:type="arc" xlink:from="3" xlink:to="4"/>
  <CONNECTION xlink:type="arc" xlink:from="4" xlink:to="5"/>
  <CONNECTION xlink:type="arc" xlink:from="5" xlink:to="6"/>
  <CONNECTION xlink:type="arc" xlink:from="6" xlink:to="7"/>
  <CONNECTION xlink:type="arc" xlink:from="7" xlink:to="8"/>
  <CONNECTION xlink:type="arc" xlink:from="8" xlink:to="9"/>
  <CONNECTION xlink:type="arc" xlink:from="9" xlink:to="10"/>
  <CONNECTION xlink:type="arc" xlink:from="10" xlink:to="11"/>
  <CONNECTION xlink:type="arc" xlink:from="11" xlink:to="12"/>
  <CONNECTION xlink:type="arc" xlink:from="12" xlink:to="13"/>

</COURSE>

Linkbases

<METADATA xlink:type="xlink:extended"
          xmlns:xlink="http://www.w3.org/1999/xlink">
  <LINKBASE xlink:type="arc"
            xmlns:xlink="http://www.w3.org/1999/xlink"
            xlink:arcrole="http://www.w3.org/1999/xlink/properties/linkbase"
            xlink:to="courselinks"/>
  <RESOURCE xlink:type="locator" href="courselinks.xml"
            xlink:label="courselinks"/>
</METADATA>

XLink Summary


To Learn More



Part II: XPointers

The many advantages of descriptive pointing are crucial for a scalable, generic pointing system. Descriptive pointing is crucial for all the same reasons that descriptive markup is crucial to documents, and that making links first-class objects is crucial to linking. It is also clearly feasible, as shown by multiple implementations of the prior WDs from the XML WG, and of TEI extended pointers.
--XML Linking Working Group, XML XPointer Requirements


XPointers


What are XPointers?


Why Use XPointers?


XPointer Examples

xpointer(id("ebnf"))
xpointer(descendant::language[position()=2])
ebnf
xpointer(/child::spec/child::body/child::*/child::language[position()=2])
/1/14/2
xpointer(id("ebnf"))xpointer(id("EBNF"))

XPointers in URIs


XPointers in XLinks

<SPECIFICATION xmlns:xlink="http://www.w3.org/1999/xlink" xlink:type="simple" xlink:href="http://www.w3.org/TR/1998/REC-xml-19980210.xml#xpointer(id('ebnf'))"> xlink:actuate="onRequest" xlink:show="replace">
Extensible Markup Language (XML) 1.0
</SPECIFICATION>


A Concrete Example

<?xml version="1.0"?>
<!DOCTYPE FAMILYTREE [

  <!ELEMENT FAMILYTREE (PERSON | FAMILY)*>

  <!-- PERSON elements -->
  <!ELEMENT PERSON (NAME*, BORN*, DIED*, SPOUSE*)>
  <!ATTLIST PERSON
    ID      ID     #REQUIRED
    FATHER  CDATA  #IMPLIED
    MOTHER  CDATA  #IMPLIED
  >
  <!ELEMENT NAME (#PCDATA)>
  <!ELEMENT BORN (#PCDATA)>
  <!ELEMENT DIED  (#PCDATA)>
  <!ELEMENT SPOUSE EMPTY>
  <!ATTLIST SPOUSE IDREF IDREF #REQUIRED>

  <!--FAMILY-->
  <!ELEMENT FAMILY (HUSBAND?, WIFE?, CHILD*) >
  <!ATTLIST FAMILY ID ID #REQUIRED>

  <!ELEMENT HUSBAND EMPTY>
  <!ATTLIST HUSBAND IDREF IDREF #REQUIRED>
  <!ELEMENT WIFE EMPTY>
  <!ATTLIST WIFE IDREF IDREF #REQUIRED>
  <!ELEMENT CHILD EMPTY>
  <!ATTLIST CHILD IDREF IDREF #REQUIRED>

]>
<FAMILYTREE>

  <PERSON ID="p1">
    <NAME>Domeniquette Celeste Baudean</NAME>
    <BORN>21 Apr 1836</BORN>
    <DIED>Unknown</DIED>
    <SPOUSE IDREF="p2"/>
  </PERSON>

  <PERSON ID="p2">
    <NAME>Jean Francois Bellau</NAME>
    <SPOUSE IDREF="p1"/>
  </PERSON>

  <PERSON ID="p3" FATHER="p2" MOTHER="p1">
    <NAME>Elodie Bellau</NAME>
    <BORN>11 Feb 1858</BORN>
    <DIED>12 Apr 1898</DIED>
    <SPOUSE IDREF="p4"/>
  </PERSON>

  <PERSON ID="p4" FATHER="p2" MOTHER="p1">
    <NAME>John P. Muller</NAME>
    <SPOUSE IDREF="p3"/>
  </PERSON>

  <PERSON ID="p7">
    <NAME>Adolf Eno</NAME>
    <SPOUSE IDREF="p6"/>
  </PERSON>

  <PERSON ID="p6" FATHER="p2" MOTHER="p1">
    <NAME>Maria Bellau</NAME>
    <SPOUSE IDREF="p7"/>
  </PERSON>

  <PERSON ID="p5" FATHER="p2" MOTHER="p1">
    <NAME>Eugene Bellau</NAME>
  </PERSON>

  <PERSON ID="p8" FATHER="p2" MOTHER="p1">
    <NAME>Louise Pauline Bellau</NAME>
    <BORN>29 Oct 1868</BORN>
    <DIED>3 May 1938</DIED>
    <SPOUSE IDREF="p9"/>
  </PERSON>

  <PERSON ID="p9">
    <NAME>Charles Walter Harold</NAME>
    <BORN>about 1861</BORN>
    <DIED>about 1938</DIED>
    <SPOUSE IDREF="p8"/>
  </PERSON>

  <PERSON ID="p10" FATHER="p2" MOTHER="p1">
    <NAME>Victor Joseph Bellau</NAME>
    <SPOUSE IDREF="p11"/>
  </PERSON>

  <PERSON ID="p11">
    <NAME>Ellen Gilmore</NAME>
    <SPOUSE IDREF="p10"/>
  </PERSON>

  <PERSON ID="p12" FATHER="p2" MOTHER="p1">
    <NAME>Honore Bellau</NAME>
  </PERSON>

  <FAMILY ID="f1">
    <HUSBAND IDREF="p2"/>
    <WIFE IDREF="p1"/>
    <CHILD IDREF="p3"/>
    <CHILD IDREF="p5"/>
    <CHILD IDREF="p6"/>
    <CHILD IDREF="p8"/>
    <CHILD IDREF="p10"/>
    <CHILD IDREF="p12"/>
  </FAMILY>

  <FAMILY ID="f2">
    <HUSBAND IDREF="p7"/>
    <WIFE IDREF="p6"/>
  </FAMILY>

</FAMILYTREE>

Location Paths, Steps, and Sets


Location Steps


Location Paths


Location Paths that Identify Multiple Nodes


Axes


Location Step Axes

Axis Selects From
ancestor the parent of the context node, the parent of the parent of the context node, the parent of the parent of the parent of the context node, and so forth back to the root node
ancestor-or-self the ancestors of the context node and the context node itself
attribute the attributes of the context node
child the immediate children of the context node
descendant the children of the context node, the children of the children of the context node, and so forth
descendant-or-self the context node itself and its descendants
following all nodes that start after the end of the context node, excluding attribute and namespace nodes
following-sibling all nodes that start after the end of the context node and have the same parent as the context node
parent the unique parent node of the context node
preceding all nodes that end before the beginning of the context node, excluding attribute and namespace nodes
preceding-sibling all nodes that start before the beginning of the context node and have the same parent as the context node
self the context node

Node Tests


Predicates


Boolean Conversion


The position() function


Identifying an element by its position

xpointer(/child::FAMILYTREE/child::*[1])
xpointer(/child::FAMILYTREE/child::*[2])
xpointer(/child::FAMILYTREE/child::*[3])
xpointer(/child::FAMILYTREE/child::*[4])
xpointer(/child::FAMILYTREE/child::*[5])
xpointer(/child::FAMILYTREE/child::*[6])
xpointer(/child::FAMILYTREE/child::*[7])
xpointer(/child::FAMILYTREE/child::*[8])
xpointer(/child::FAMILYTREE/child::*[9])
xpointer(/child::FAMILYTREE/child::*[10])
xpointer(/child::FAMILYTREE/child::*[11])
xpointer(/child::FAMILYTREE/child::*[12])
xpointer(/child::FAMILYTREE/child::*[13])
xpointer(/child::FAMILYTREE/child::*[14])

Functions that Return Node Sets

The last two, here() and origin() are XPointer extensions to XPath that are not available in XSLT.


id()


here()

Consider a simple slide show. In this example, here()/following::SLIDE[1] refers to the next slide in the show. here()/preceding::SLIDE[1] refers to the previous slide in the show. Presumably this would be used in conjunction with a style sheet that showed one slide at a time.

<?xml version="1.0"?>
<SLIDESHOW xmlns:xlink="http://www.w3.org/1999/xlink">
  <SLIDE>
    <H1>Welcome to the slide show!</H1>
    <BUTTON xlink:type="simple"
            xlink:href="here()/following::SLIDE[1]">
      Next
    </BUTTON>
  </SLIDE>
  <SLIDE>
    <H1>This is the second slide</H1>
    <BUTTON xlink:type="simple"
            xlink:href="here()/preceding::SLIDE[1]">
      Previous
    </BUTTON>
    <BUTTON xlink:type="simple"
            xlink:href="here()/following::SLIDE[1]">
      Next
    </BUTTON>
  </SLIDE>
  <SLIDE>
    <H1>This is the second slide</H1>
    <BUTTON xlink:type="simple"
            xlink:href="here()/preceding::SLIDE[1]">
      Previous
    </BUTTON>
    <BUTTON xlink:type="simple"
           xlink:href="here()/following::SLIDE[1]">
      Next
    </BUTTON>
  </SLIDE>
  <SLIDE>
    <H1>This is the third slide</H1>
    <BUTTON xlink:type="simple"
            xlink:href="here()/preceding::SLIDE[1]">
      Previous
    </BUTTON>
    <BUTTON xlink:type="simple"
            xlink:href="here().following(1,SLIDE)">
      Next
    </BUTTON>
  </SLIDE>
  ...
  <SLIDE>
    <H1>This is the last slide</H1>
    <BUTTON xlink:type="simple"
            xlink:href="here()/preceding::SLIDE[1]">
      Previous
    </BUTTON>
  </SLIDE>

</SLIDESHOW>

Generally, the here() location term is only used in fully relative URIs in XLinks. If any URI part is included, it must be the same as the URI of the current document.


origin()

The origin() function is much the same as here(); that is, it refers to the source of a link. However, origin() is used in out-of-line links where the link is not actually present in the source document. It points to the element in the source document from which the user activated the link.


Points

Every point is either between two nodes or between two characters in the parsed character data of a document. To make sense of this you have to remember that parsed character data is part of a text node. For instance, consider this very simple but well-formed XML document:

<GREETING>
  Hello
</GREETING>

Tree Structure

There are exactly three nodes and 13 distinct points in this document. In order the points are:

The exact details of the white space in the document are not considered here. XPointer collapses all runs of white space to a single space.


Point Expressions


Ranges

In some applications it may be important to specify a range across a document rather than a particular point in the document. For instance, the selection a user makes with a mouse is not necessarily going to match up with any one element or node. It may start in the middle of one paragraph, extend across a heading and a picture and then into the middle of another paragraph two pages down. Any such contiguous area of a document can be described with a range.


Range Expressions


Range Functions

range(location-set)
returns returns a location set containing one range for each location in the argument.

The range is the minimum range necessary to cover the entire location.

range-inside(location-set)

Returns a location set containing the interiors of each of the locations in the input.

start-point(location-set)

Returns a location set that contains one point representing the first point of each location in the input location set. For example, start-point(//PERSON[1]) Returns the point immediately before the first PERSON element. start-point(//PERSON) returns the set of points immediately before each PERSON element.

end-point(location-set)

The same as start-point() except that it returns the points immediately after each location in its input.


String Ranges

string-range(node-set,substring,index,length)


XPointers and Namespaces


Child Sequences


XPointer Summary


To Learn More



Part III: XML Base


What is XML Base?


The xml:base attribute

<slide xml:base="http://www.ibiblio.org/xml/slides/xmlonelondon2001/xlinks/">
  <title>The xml:base attribute</title>
  ...
  <previous xlink:type="simple" xlink:href="What_Is_XBase.xml"/>
  <next xlink:type="simple" xlink:href="xbaseexample.xml"/>
</slide>


XML Base Example

<COURSE xmlns:xlink="http://www.w3.org/1999/xlink"
         xml:base="http://www.ibiblio.org/javafaq/course/"
         xlink:type="extended">

  <TOC xlink:type="locator" xlink:href="index.html" xlink:label="index"/>

  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="week1.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="week2.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="week3.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="week4.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="week5.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="week6.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="week7.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="week8.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="week9.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="week10.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="week11.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="week12.xml"/>
  <CLASS xlink:type="locator" xlink:label="class"
         xlink:href="week13.xml"/>

  <CONNECTION xlink:type="arc" from="index" to="class"/>
  <CONNECTION xlink:type="arc" from="class" to="index"/>

</COURSE>

Open Issues


To Learn More


Part IV: XInclude

The problem is that we're not providing the tools. We're providing the specs. That's a whole different ball game. If tools existed for actually making really interesting use of RDF and XLink and XInclude then people would use them. If IE and/or Mozilla supported the full gamut of specs, from XSLT 1.0 to XLink and XInclude (OK, so they're not quite REC's, but with time...) then you would find people using them more.
--Matt Sergeant on the xml-dev mailing list


What is XInclude?


Alternatives (and why they don't work)


The include element

<book xmlns:xinclude="http://www.w3.org/1999/XML/xinclude">
  <title>Processing XML with Java</title>
  <chapter><xinclude:include href="dom.xml"/></chapter>
  <chapter><xinclude:include href="sax.xml"/></chapter>
  <chapter><xinclude:include href="jdom.xml"/></chapter>
</book>

The parse attribute

parse="xml"
The resource must be parsed as XML and the infosets merged. This is the default.
parse="text"
The resource must be treated as pure text and inserted as a text node. When serialized, this means that characters like < will change to &lt; and so forth.
<slide xmlns:xinclude="http://www.w3.org/1999/XML/xinclude">
  <title>The href attribute</title>

<ul>
  <li>Identifies the document to be included with a URI</li>
  <li>The document at the URI replaces the <code>include</code>
      element in the including document</li>
  <li>The <code>xinclude</code> prefix is bound to the http://www.w3.org/1999/XML/xinclude
  namespace URI.
  </li>
</ul>

<pre><code><xinclude:include parse="text" href="processing_xml_with_java.xml"/>
</code></pre>

  <description>
      A slide from Elliotte Rusty Harold's XML and Hypertext seminar at
      <host_ref/>, <date_ref/>
    </description>
  <last_modified>October 26, 2000</last_modified>
</slide>


Implementation as JDOM

/*--

 Copyright 2000 Elliotte Rusty Harold.
 All rights reserved.

 I haven't yet decided on a license.
 It will be some form of open source.

 THIS SOFTWARE IS PROVIDED "AS IS" AND ANY EXPRESSED OR IMPLIED
 WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
 OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
 DISCLAIMED.  IN NO EVENT SHALL ELLIOTTE RUSTY HAROLD OR ANY
 OTHER CONTRIBUTORS TO THIS PACKAGE
 BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
 SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
 LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
 USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
 ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
 OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT
 OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF
 SUCH DAMAGE.

 */

package com.macfaq.xml;

import java.net.URL;
import java.net.MalformedURLException;
import java.util.Stack;
import java.util.Iterator;
import java.util.List;
import java.io.File;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.BufferedInputStream;
import java.io.InputStream;
import org.jdom.Namespace;
import org.jdom.Comment;
import org.jdom.CDATA;
import org.jdom.JDOMException;
import org.jdom.Attribute;
import org.jdom.Element;
import org.jdom.ProcessingInstruction;
import org.jdom.Document;
import org.jdom.input.SAXBuilder;
import org.jdom.output.XMLOutputter;

/**
 * <p><code>XIncluder</code> provides methods to
 * resolve JDOM elements and documents to produce
 * a new Document or Element with all
 * XInclude references resolved.
 * </p>
 *
 *
 * @author Elliotte Rusty Harold
 * @version 1.0d2
 */
public class XIncluder {

  public final static Namespace XINCLUDE_NAMESPACE
    = Namespace.getNamespace("xinclude", "http://www.w3.org/1999/XML/xinclude");

  // No instances allowed
  private XIncluder() {}

  private static SAXBuilder builder = new SAXBuilder();

  /**
    * <p>
    * This method resolves a JDOM <code>Document</code>
    * and merges in all XInclude references.
    * If a referenced document cannot be found it is replaced with
    * an error message. The Document object returned is a new document.
    * The original <code>Document</code> is not changed.
    * </p>
    *
    * @param original <code>Document</code> that will be processed
    * @param base     <code>String</code> form of the base URI against which
    *                 relative URLs will be resolved. This can be null if the
    *                 document includes an <code>xml:base</code> attribute.
    * @return Document new <code>Document</code> object in which all
    *                  XInclude elements have been replaced.
    * @throws CircularIncludeException if this document possesses a cycle of
    *                                  XIncludes.
    * @throws MalformedURLException if Java cannot parse the base URI using the
    *                               the normal methods of java.net.URL.
    */
    public static Document resolve(Document original, String base)
      throws CircularIncludeException, MalformedURLException {

        if (original == null) throw new NullPointerException("Document must not be null");

        Element root = original.getRootElement();
        Element resolved = (Element) resolve(root, base);

        // catch a ClassCastException if a String is returned????
        // Is the root element allowed to be replaced by
        // an parse="text"

        Document result = new Document(resolved, original.getDocType());

        Iterator iterator = original.getMixedContent().iterator();
        while (iterator.hasNext()) {
          Object o = iterator.next();
          if (o instanceof Comment) {
            Comment c = (Comment) o;
            result.addContent((Comment) c.clone());
          }
          else if (o instanceof ProcessingInstruction) {
            ProcessingInstruction pi =(ProcessingInstruction) o;
            result.addContent((ProcessingInstruction) pi.clone());
          }
        }

        return result;
  }

  /**
    * <p>
    * This method resolves a JDOM <code>Element</code>
    * and merges in all XInclude references. This process is recursive.
    * The element returned contains no XInclude elements.
    * If a referenced document cannot be found it is replaced with
    * an error message. The <code>Element</code> object returned is a new element.
    * The original <code>Element</code> is not changed.
    * </p>
    *
    * @param original <code>Element</code> that will be processed
    * @param base     <code>String</code> form of the base URI against which
    *                 relative URLs will be resolved. This can be null if the
    *                 element includes an <code>xml:base</code> attribute.
    * @return Object  Either an <code>Element</code>
    *                 (<code>parse="text"</code>) or a <code>String</code>
    *                 (<code>parse="xml"</code>)
    * @throws CircularIncludeException if this <code>Element</code> contains an XInclude element
    *                                  that attempts to include a document in which
    *                                  this element is directly or indirectly included.
    */
    public static Object resolve(Element original, String base)
     throws CircularIncludeException, MalformedURLException {

        if (original == null) {
          throw new NullPointerException("You can't XInclude a null element.");
        }
        Stack bases = new Stack();
        if (base != null) bases.push(base);

        Object result = resolve(original, bases);
        bases.pop();
        return result;

    }

    private static boolean isIncludeElement(Element element) {

        if (element.getName().equals("include") &&
            element.getNamespace().equals(XINCLUDE_NAMESPACE)) {
          return true;
        }
        return false;

    }


  /**
    * <p>
    * This method resolves a JDOM <code>Element</code>
    * and merges in all XInclude references. This process is recursive.
    * The element returned contains no XInclude elements.
    * If a referenced document cannot be found it is replaced with
    * an error message. The <code>Element</code> object returned is a new element.
    * The original <code>Element</code> is not changed.
    * </p>
    *
    * @param original <code>Element</code> that will be processed
    * @param bases    <code>Stack</code> containing the string forms of
    *                 all the URIs of documents which contain this element
    *                 through XIncludes. This used to detect if a circular
    *                 reference is being used.
    * @return Object  Either an <code>Element</code>
    *                 (<code>parse="text"</code>) or a <code>String</code>
    *                 (<code>parse="xml"</code>)
    * @throws CircularIncludeException if this <code>Element</code> contains an XInclude element
    *                                  that attempts to include a document in which
    *                                  this element is directly or indirectly included.
    */
  protected static Object resolve(Element original, Stack bases)
   throws CircularIncludeException {

    Element result;
    String base = "";
    if (bases.size() != 0) base = (String) bases.peek();

    if (isIncludeElement(original)) {
      Attribute href = original.getAttribute("href");
      if (href == null) { // illegal, what kind of exception????
        throw new IllegalArgumentException("Missing href attribute");
      }
      Attribute baseAttribute
       = original.getAttribute("base", Namespace.XML_NAMESPACE);
      if (baseAttribute != null) base = baseAttribute.getValue();
      boolean parse = true;
      Attribute parseAttribute = original.getAttribute("parse");
      if (parseAttribute != null) {
        if (parseAttribute.getValue().equals("text")) parse = false;
      }

      URL remote;
      if (base != null) {
        try {
          URL context = new URL(base);
          remote = new URL(context, href.getValue());
        }
        catch (MalformedURLException ex) {
          return "Unresolvable URL " + base + "/" + href.getValue();
        }
      }
      else {
        try {
          remote = new URL(href.getValue());
        }
        catch (MalformedURLException ex) {
          return "Unresolvable URL " + href.getValue();
        }
      }

      if (parse) {
                 // checks for equality (OK) or identity (not OK)????
        if (bases.contains(remote.toExternalForm())) {
          // need to figure out how to get file and number where
          // bad include occurs
          throw new CircularIncludeException(
            "Circular XInclude Reference to "
           + remote.toExternalForm() + " in " );
        }

        try {
          Document doc = builder.build(remote);
          bases.push(remote.toExternalForm());
          result = (Element) resolve(doc.getRootElement(), bases);
          bases.pop();
        }
        // Make this configurable
        catch (JDOMException e) {
           return "Document not found: " + remote.toExternalForm()
            + "\r\n" + e.getMessage();
        }
      }
      else { // insert text
        return downloadTextDocument(remote);
      }

    }
    // not an include element
    else { // recursively process children
       result = new Element(original.getName(), original.getNamespace());
       Iterator attributes = original.getAttributes().iterator();
       while (attributes.hasNext()) {
         Attribute a = (Attribute) attributes.next();
         result.addAttribute((Attribute) a.clone());
       }
       List children = original.getMixedContent();

       Iterator iterator = children.iterator();
       while (iterator.hasNext()) {
         Object o = iterator.next();
         if (o instanceof Element) {
           Element e = (Element) o;
           Object resolved = resolve(e, bases);
           if (resolved instanceof String) {
               result.addContent((String) resolved);
           }
           else result.addContent((Element) resolved);
         }
         else if (o instanceof String) {
           result.addContent((String) o);
         }
         else if (o instanceof Comment) {
           result.addContent((Comment) o);
         }
         else if (o instanceof CDATA) {
           result.addContent((CDATA) o);
         }
         else if (o instanceof ProcessingInstruction) {
           result.addContent((ProcessingInstruction) o);
         }
       }
    }

    return result;

  }

  /**
    * <p>
    * This utility method reads a document at a specified URL
    * and returns the contents of that document as a <code>String</code>.
    * It's used to include files with <code>parse="text"</code>
    * </p>
    *
    * <p>
    * If the document cannot be located due to an IOException,
    * then an error message string is returned. I'm not yet convinced this
    * is the right behavior. Perhaps I should pass on the exception?
    * </p>
    *
    * @param source   <code>URL</code> of the document that will be stored in
    *                 <code>String</code>.
    * @return String  The document retrieved from the source <code>URL</code>
    *                 or an error message if the document can't be retrieved.
    *                 Note: throwing an exception might be better here. I should
    *                 at least allow the setting of the error message.
    */
    public static String downloadTextDocument(URL source) {

        StringBuffer s = new StringBuffer();
        try {
          InputStream in = new BufferedInputStream(source.openStream());
          // does XInclude give you anything to specify the character set????
          InputStreamReader reader = new InputStreamReader(in, "8859_1");
          int c;
          while ((c = in.read()) != -1) {
            if (c == '<') s.append("&lt;");
            else if (c == '&') s.append("&amp;");
            else s.append((char) c);
          }
          return s.toString();
        }
        catch (IOException e) {
          return "Document not found: " + source.toExternalForm();
        }

    }

    /**
      * <p>
      * The driver method for the XIncluder program.
      * I'll probably move this to a separate class soon.
      * </p>
      *
      * @param args  <code>args[0]</code> contains the URL or file name
      *              of the document to be processed.
      */
    public static void main(String[] args) {

        SAXBuilder builder = new SAXBuilder();
        XMLOutputter outputter = new XMLOutputter();
        for (int i = 0; i < args.length; i++) {
          try {
            Document input = builder.build(args[i]);
            // absolutize URL
            String base = args[i];
            if (base.indexOf(':') < 0) {
              File f = new File(base);
              base = f.toURL().toExternalForm();
            }
            Document output = resolve(input, base);
            // need to set encoding on this to Latin-1 and check what
            // happens to UTF-8 curly quotes
            outputter.output(output, System.out);
          }
          catch (Exception e) {
            System.err.println(e);
            e.printStackTrace();
          }
        }

    }

}

Implementation as DOM

/*--

 Copyright 2000 Elliotte Rusty Harold.
 All rights reserved.

 I haven't yet decided on a license.
 It will be some form of open source.

 THIS SOFTWARE IS PROVIDED "AS IS" AND ANY EXPRESSED OR IMPLIED
 WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
 OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
 DISCLAIMED.  IN NO EVENT SHALL ELLIOTTE RUSTY HAROLD OR ANY
 OTHER CONTRIBUTORS TO THIS PACKAGE
 BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
 SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
 LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
 USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
 ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
 OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT
 OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF
 SUCH DAMAGE.

 */

package com.macfaq.xml;

import java.net.URL;
import java.net.MalformedURLException;
import java.util.Stack;
import org.xml.sax.SAXException;
import java.io.File;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.BufferedInputStream;
import java.io.InputStream;
import org.w3c.dom.Element;
import org.w3c.dom.Document;
import org.w3c.dom.Attr;
import org.w3c.dom.Node;
import org.w3c.dom.NodeList;
import org.w3c.dom.DocumentType;
import org.w3c.dom.DOMImplementation;
import org.apache.xerces.parsers.DOMParser;
import org.apache.xml.serialize.OutputFormat;
import org.apache.xml.serialize.XMLSerializer;

/**
 * <p><code>DOMXIncluder</code> provides methods to
 * resolve DOM elements and documents to produce
 * a new <code>Document</code> or <code>Element</code> with all
 * XInclude references resolved.
 * </p>
 *
 *
 * @author Elliotte Rusty Harold
 * @version 1.0d1
 */
public class DOMXIncluder {

  public final static String XINCLUDE_NAMESPACE
   = "http://www.w3.org/1999/XML/xinclude";

  // No instances allowed
  private DOMXIncluder() {}

  private static DOMParser parser = new DOMParser();

  /**
    * <p>
    * This method resolves a DOM <code>Document</code>
    * and merges in all XInclude references.
    * If a referenced document cannot be found it is replaced with
    * an error message. The <code>Document</code>
    * object returned is a new document.
    * The original <code>Document</code> object is not changed.
    * </p>
    *
    * @param original <code>Document</code> that will be processed
    * @param base     <code>String</code> form of the base URI against which
    *                 relative URLs will be resolved. This can be null if the
    *                 document includes an <code>xml:base</code> attribute.
    * @return Document new <code>Document</code> object in which all
    *                  XInclude elements have been replaced.
    * @throws CircularIncludeException if this document possesses a cycle of
    *                                  XIncludes.
    * @throws NullPointerException  if the original argument is null.
    */
    public static Document resolve(Document original, String base)
      throws CircularIncludeException, NullPointerException {

        if (original == null) {
          throw new NullPointerException("Document must not be null");
        }

        Element root = original.getDocumentElement();

        // catch a ClassCastException if a Text is returned????
        // Is the root element allowed to be replaced by
        // an parse="text"

        DOMImplementation impl = original.getImplementation();

        DocumentType oldDoctype = original.getDoctype();
        DocumentType newDoctype = impl.createDocumentType(
         oldDoctype.getName(),
         oldDoctype.getPublicId(),
         oldDoctype.getSystemId());

        Document resultDocument
         = impl.createDocument(root.getNamespaceURI(),
           root.getTagName(),
           newDoctype);
        // check that tag name is qualified name

        NodeList children = original.getChildNodes();
        for (int i = 0; i < children.getLength(); i++) {
          Node n = children.item(i);
          if (n instanceof Element) { // root element
              resultDocument.replaceChild(
               resolve(root, base, resultDocument),
               resultDocument.getDocumentElement()
             );
          }
          else if (n instanceof DocumentType) {
              // skip it, already cloned
          }
          else {
              resultDocument.appendChild(n.cloneNode(true));
          }
        }

        return resultDocument;
  }

  /**
    * <p>
    * This method resolves a DOM <code>Element</code>
    * and merges in all XInclude references. This process is recursive.
    * The element returned contains no XInclude elements.
    * If a referenced document cannot be found it is replaced with
    * an error message. The <code>Element</code> object returned is a new element.
    * The original <code>Element</code> is not changed.
    * </p>
    *
    * @param original <code>Element</code> that will be processed
    * @param base     <code>String</code> form of the base URI against which
    *                 relative URLs will be resolved. This can be null if the
    *                 element includes an <code>xml:base</code> attribute.
    * @param resolved <code>Document</code> into which the resolved element will be placed.
    * @return Node    Either an <code>Element</code>
    *                 (<code>parse="text"</code>) or a <code>Text</code>
    *                 (<code>parse="xml"</code>)
    * @throws CircularIncludeException if this <code>Element</code> contains an XInclude element
    *                                  that attempts to include a document in which
    *                                  this element is directly or indirectly included.
    * @throws NullPointerException  if the original argument is null.
    */
    public static Node resolve(Element original, String base, Document resolved)
     throws CircularIncludeException,  NullPointerException {

        if (original == null) {
          throw new NullPointerException(
           "You can't XInclude a null element."
          );
        }
        Stack bases = new Stack();
        if (base != null) bases.push(base);

        Node result = resolve(original, bases, resolved);
        bases.pop();
        return result;

    }

    private static boolean isIncludeElement(Element element) {

        if (element.getLocalName().equals("include") &&
            element.getNamespaceURI().equals(XINCLUDE_NAMESPACE)) {
          return true;
        }
        return false;

    }


  /**
    * <p>
    * This method resolves a DOM <code>Element</code>
    * and merges in all XInclude references. This process is recursive.
    * The element returned contains no XInclude elements.
    * If a referenced document cannot be found it is replaced with
    * an error message. The <code>Element</code> object returned is a new element.
    * The original <code>Element</code> is not changed.
    * </p>
    *
    * @param original <code>Element</code> that will be processed
    * @param bases    <code>Stack</code> containing the string forms of
    *                 all the URIs of doucments which contain this element
    *                 through XIncludes. This used to detect if a circular
    *                 reference is being used.
    * @param resolved <code>Document</code> into which the resolved element will be placed.
    * @return Node  Either an <code>Element</code>
    *                 (<code>parse="text"</code>) or a <code>String</code>
    *                 (<code>parse="xml"</code>)
    * @throws CircularIncludeException if this <code>Element</code> contains an XInclude element
    *                                  that attempts to include a document in which
    *                                  this element is directly or indirectly included.
    * @throws IllegalArgumentException if the href attribute is missing from an include element.
    */
  private static Node resolve(Element original, Stack bases, Document resolved)
   throws CircularIncludeException, IllegalArgumentException {

    Element result;
    String base = "";
    if (bases.size() != 0) base = (String) bases.peek();

    if (isIncludeElement(original)) {
      String href = original.getAttribute("href");
      if (href == null || href.equals("")) { // illegal, what kind of exception????
        throw new IllegalArgumentException("Missing href attribute");
      }
      String baseAttribute
       = original.getAttributeNS("http://www.w3.org/XML/1998/namespace", "base");
      if (base != null && !base.equals("")) {
        base = baseAttribute;
      }
      boolean parse = true;
      String parseAttribute = original.getAttribute("parse");
      if (parseAttribute != null && parseAttribute.equals("text")) {
          parse = false;
      }

      String remote;
      if (base != null) {
        try {
          URL context = new URL(base);
          URL u = new URL(context, href);
          remote = u.toExternalForm();
        }
        catch (MalformedURLException ex) {
          return resolved.createTextNode("Unresolvable URL "
           + base + "/" + href);
        }
      }
      else {
          remote = href;
      }

      if (parse) {
                 // checks for equality (OK) or identity (not OK)????
        if (bases.contains(remote)) {
          // need to figure out how to get file and number where
          // bad include occurs
          throw new CircularIncludeException(
            "Circular XInclude Reference to "
           + remote + " in " );
        }

        try {
          parser.parse(remote);
          Document doc = parser.getDocument();
          bases.push(remote);
          result = (Element) resolve(doc.getDocumentElement(), bases, resolved);
          bases.pop();
        }
        // Make this configurable
        catch (SAXException e) {
           return resolved.createTextNode("Document "
            + remote + " is not well-formed.\r\n" + e.getMessage());
        }
        catch (IOException e) {
           return resolved.createTextNode("Document not found: "
            + remote + "\r\n" + e.getMessage());
        }
      }
      else { // insert text
        String s = downloadTextDocument(remote);
        return resolved.createTextNode(s);
      }

    }
    // not an include element
    else { // recursively process children
       // still need to adjust bases here????
       result = (Element) resolved.importNode(original, false);
       NodeList children = original.getChildNodes();
       for (int i = 0; i < children.getLength(); i++) {
         Node n = children.item(i);
         if (n instanceof Element) {
           Element e = (Element) n;
           result.appendChild(resolve(e, bases, resolved));
         }
         else {
           result.appendChild(resolved.importNode(n,true));
         }
       }
    }

    return result;

  }

  /**
    * <p>
    * This utility method reads a document at a specified URL
    * and returns the contents of that document as a <code>Text</code>.
    * It's used to include files with <code>parse="text"</code>
    * </p>
    *
    * <p>
    * If the document cannot be located due to an IOException,
    * then an error message string is returned. I'm not yet convinced this
    * is the right behavior. Perhaps I should pass on the exception?
    * </p>
    *
    * @param url      URL of the doucment that will be stored in
    *                 <code>String</code>.
    * @return Text  The document retrieved from the source <code>URL</code>
    *                 or an error message if the document can't be retrieved.
    *                 Note: throwing an exception might be better here. I should
    *                 at least allow the setting of the eror message.
    */
    public static String downloadTextDocument(String url) {

        URL source;
        try {
          source = new URL(url);
        }
        catch (MalformedURLException ex) {
          return "Unresolvable URL " + url;
        }
        StringBuffer s = new StringBuffer();
        try {
          InputStream in = new BufferedInputStream(source.openStream());
          // does XInclude give you anything to specify the character set????
          InputStreamReader reader = new InputStreamReader(in, "8859_1");
          int c;
          while ((c = in.read()) != -1) {
            if (c == '<') s.append("&lt;");
            else if (c == '&') s.append("&amp;");
            else s.append((char) c);
          }
          return s.toString();
        }
        catch (IOException e) {
          return "Document not found: " + source.toExternalForm();
        }

    }

    /**
      * <p>
      * The driver method for the XIncluder program.
      * I'll probably move this to a separate class soon.
      * </p>
      *
      * @param args  <code>args[0]</code> contains the URL or file name
      *              of the document to be procesed.
      */
    public static void main(String[] args) {

        DOMParser parser = new DOMParser();
        XMLSerializer outputter = new XMLSerializer();
        for (int i = 0; i < args.length; i++) {
          try {
            parser.parse(args[i]);
            Document input = parser.getDocument();
            // absolutize URL
            String base = args[i];
            if (base.indexOf(':') < 0) {
              File f = new File(base);
              base = f.toURL().toExternalForm();
            }
            Document output = resolve(input, base);
            // need to set encoding on this to Latin-1 and check what
            // happens to UTF-8 curly quotes

            OutputFormat format = new OutputFormat("XML", "ISO-8859-1", false);
            format.setPreserveSpace(true);
            XMLSerializer serializer
             = new XMLSerializer(System.out, format);
            serializer.serialize(output);
          }
          catch (Exception e) {
            System.err.println(e);
            e.printStackTrace();
          }
        }

    }

}

To Learn More


To Learn More


Index | Cafe con Leche

Copyright 2000, 2001 Elliotte Rusty Harold
elharo@metalab.unc.edu
Last Modified March 14, 2001
