XML Fundamentals

Elliotte Rusty Harold

Monday, March 19, 2007

elharo@metalab.unc.edu

http://www.cafeconleche.org/

Part I: XML Overview

XML succeeded, and in ways that weren't expected - at least not by many. Originally it was conceived as a document-oriented technology for robust quality publishing of documents over networks. the original workplan had three pillars - XML syntax, XML link, and XML stylesheets. Schemas were not high on the agenda and XML was not seen as an infrastructure for middleware or glueware. It was expected that at some stage it would be necessary to manage data but there was little activity in this area in 1997. When developing Chemical Markup Language (which must be one of the first published XML applications), I found the lack of datatypes very frustrating!

Well, XML is now a basic infrastructure of much modern information. I doubt that anyone now designs a protocol, or operating system without including XML. Although this list sometimes complains that XML isn't as clean as we would like, it works, and it works pretty well.

--Peter Murray-Rust on the xml-dev mailing list, Thursday, February 7, 2002

What is XML?

• Extensible Markup Language

• A syntax for documents

• A Meta-Markup Language

• A Structural and Semantic language, not a formatting language

XML is a Meta Markup Language

• Not like HTML, troff, LaTeX

• Make up the tags you need as you need them

• The tags you create can be documented in a schema in any of several schema languages

• A meta syntax for domain-specific markup languages like MusicML, MathML, and CML

Rule 1: Focus on Meaning, Not Appearance

• Describe semantics, not presentation

• Element and attribute names reflect the kind of the element

• Formatting can be added with a style sheet

A Song Description in HTML

<dt>Hot Cop
<dd> by Jacques Morali, Henri Belolo, and Victor Willis
<ul>
<li>Jacques Morali
<li>PolyGram Records
<li>6:20
<li>1978
<li>Village People
</ul>

A Song Description in XML

<?xml version="1.0"?>
<SONG>
  <TITLE>Hot Cop</TITLE>
  <COMPOSER>Jacques Morali</COMPOSER>
  <COMPOSER>Henri Belolo</COMPOSER>
  <COMPOSER>Victor Willis</COMPOSER>
  <PRODUCER>Jacques Morali</PRODUCER>
  <PUBLISHER>PolyGram Records</PUBLISHER>
  <LENGTH>6:20</LENGTH>
  <YEAR>1978</YEAR>
  <ARTIST>Village People</ARTIST>
</SONG>

Elements

• Documents are composed of elements

• An element is delimited by a start-tag and a matching end-tag:

  <COMPOSER>Jacques Morali</COMPOSER>

  • Start-tag <COMPOSER>

  • Contents "Jacques Morali"

  • End-tag </COMPOSER>

Nesting

• Elements can contain other elements:

  <SONG>
    <TITLE>Hot Cop</TITLE>
    <COMPOSER>Jacques Morali</COMPOSER>
    <COMPOSER>Henri Belolo</COMPOSER>
    <COMPOSER>Victor Willis</COMPOSER>
    <PRODUCER>Jacques Morali</PRODUCER>
    <PUBLISHER>PolyGram Records</PUBLISHER>
    <LENGTH>6:20</LENGTH>
    <YEAR>1978</YEAR>
    <ARTIST>Village People</ARTIST>
  </SONG>


Rule 2: Subdivide Elements Into the Smallest Units of Information

• Combine with parent elements

• The Dumpty-Humpty principle: It is easier to put things together than take them apart

• Elements can contain other elements:

  <SONG>
    <TITLE>Hot Cop</TITLE>
    <COMPOSER>
      <GIVEN>Jacques</GIVEN>
      <FAMILY>Morali</FAMILY>
    </COMPOSER>
    <COMPOSER>
      <GIVEN>Henri</GIVEN>
      <FAMILY>Belolo</FAMILY>
    </COMPOSER>
    <COMPOSER>
      <GIVEN>Victor</GIVEN>
      <FAMILY>Willis</FAMILY>
    </COMPOSER>
    <PRODUCER>
      <GIVEN>Jacques</GIVEN>
      <FAMILY>Morali</FAMILY>
    </PRODUCER>
    <PUBLISHER>PolyGram Records</PUBLISHER>
    <LENGTH>6:20</LENGTH>
    <YEAR>1978</YEAR>
    <ARTIST>Village People</ARTIST>
  </SONG>


• Is the length unitary?

Cascading Style Sheets

• A simple and straight-forward language for applying styles like bold and Helvetica to particular XML elements.

• Rather than being stored as part of the document itself, all the style information is placed in a separate document called a style sheet.

• Partially supported by Firefox, Mozilla, Netscape 6 and later, IE 5.0 and later, and Opera 4.0 and later

CSS Stylesheet for Songs

SONG     {display: block}
TITLE    {display: block;
          font-family: Helvetica, sans-serif;
          font-size: 20pt; font-weight: bold;}
COMPOSER {display: block;
          font-family: Times, "Times New Roman", serif;
          font-size: 14pt;
          font-style: italic;}
ARTIST   {display: block;
          font-family: Times, "Times New Roman", serif;
          font-size: 14pt; font-weight: bold;
          font-style: italic;}
PUBLISHER {display: block;
           font-family: Times, "Times New Roman", serif;
           font-size: 14pt;}
LENGTH    {display: block;
           font-family: Times, "Times New Roman", serif;
           font-size: 14pt;}
YEAR      {display: block;
           font-family: Times, "Times New Roman", serif;
           font-size: 14pt;}

Attaching style sheets to documents

<?xml version="1.0"?>
<?xml-stylesheet type="text/css" href="song1.css"?>
<SONG>
  <TITLE>Hot Cop</TITLE>
  <COMPOSER>Jacques Morali</COMPOSER>
  <COMPOSER>Henri Belolo</COMPOSER>
  <COMPOSER>Victor Willis</COMPOSER>
  <PRODUCER>Jacques Morali</PRODUCER>
  <PUBLISHER>PolyGram Records</PUBLISHER>
  <LENGTH>6:20</LENGTH>
  <YEAR>1978</YEAR>
  <ARTIST>Village People</ARTIST>
</SONG>

song.xsl

<?xml version="1.0"?>
<xsl:stylesheet version="1.0"
     xmlns:xsl="http://www.w3.org/1999/XSL/Transform">

  <xsl:template match="SONG">
    <html>
      <body>
       <h1>
        <xsl:value-of select="TITLE"/>
        by the
        <xsl:value-of select="ARTIST"/>
       </h1>
       <ul>
         <xsl:apply-templates select="COMPOSER"/>
         <li>Publisher: <xsl:value-of select="PUBLISHER"/></li>
         <li>Year: <xsl:value-of select="YEAR"/></li>
         <li>Producer: <xsl:value-of select="PRODUCER"/></li>
       </ul>
      </body>
    </html>
  </xsl:template>

  <xsl:template match="COMPOSER">
    <li>Composer: <xsl:value-of select="."/></li>
  </xsl:template>

</xsl:stylesheet>

Applying an XSLT Style Sheet

• Supported by Firefox, Mozilla, Safari 2, Opera 9, IE

• Can use third party tools like Xalan, Saxon, and NXSLT

• Let's use xsltproc to apply this stylesheet to compositions.xml:

  C:\> xsltproc song.xsl hotcop.xml > hotcop.html

Output

<html>
   <body>
      <h1>Hot Cop
         by the
         Village People
      </h1>
      <ul>
         <li>Composer: Jacques Morali</li>
         <li>Composer: Henri Belolo</li>
         <li>Composer: Victor Willis</li>
         <li>Publisher: PolyGram Records</li>
         <li>Year: 1978</li>
         <li>Producer: Jacques Morali</li>
      </ul>
   </body>
</html>

CSS or XSL?

• CSS has broader support.

• CSS is simpler.

• XSL is much more powerful.

• XSL can be used without browser support by transforming to HTML on the server side.

• XSL+CSS: best of both worlds

Editing and Saving XML Documents

• Plain ASCII or UTF-8 text

• .xml is customary file extension

• application/xml is MIME type

• Any plain text editor will work

Rule 3: Prefer UTF-8

• All XML processors must support it

• Supports all languages and scripts XML supports

• Broad external tool support; even with non-XML tools

• Robust against corruption

• Size has nothing to do with it

Well-formedness

• The minimum syntactic constraints all XML documents must adhere to

• If it's not well-formed, it's not XML

• Parsers check this automatically

• Draconian error handling

Well-formedness Rules

• Every start-tag has a matcing end-tag

• There is a unique root element

• Elements may not overlap

• Attribute values are quoted

• < and & are only used to start tags and entities

• Only the five predefined entity references are used

• Plus more...

Open and close all tags

• Good:

  • <p>The quick brown fox jumped over the lazy dog</p>

  • <li>A very <B>important</B> point</li>

  • Copyright 2007 Elliotte Rusty Harold<br></br>

• Bad:

  • The quick brown fox jumped over the lazy dog<p>

  • <li>A very <B>important point

  • Copyright 2007 Elliotte Rusty Harold<br>

There is a unique root element

• One element completely contains all other elements of the document

• This is HTML in HTML files

• The XML declaration and xml-stylesheet processing instruction are not elements

• A few processes produce well-balnced trees instead of well-formed documents

Elements may not overlap

• If an element contains a start tag for an element, it must also contain the corresponding end tag

• Empty elements may appear anywhere

• Every non-root element has a parent element

Attribute values are quoted

• <A HREF="http://www.cafeconleche.org/">

• <DIV ALIGN="CENTER">

• <A HREF="http://www.cafeconleche.org/">

• <EMBED SRC="minnesotaswale.aif" hidden="hidden">

Attribute values are quoted

• <A HREF=http://www.cafeconleche.org/>

• <DIV ALIGN=CENTER>

• <EMBED SRC=minnesotaswale.aif hidden=hidden>

• <EMBED SRC="minnesotaswale.aif" hidden>

< and & are only used to start tags and entities

• Good:


  <H1>O'Reilly &amp; Associates</H1>


• Bad:


  <H1>O'Reilly & Associates</H1>


• Good:

  <CODE>for (int i = 0; i &lt;= args.length; i++ ) { </CODE>


• Bad:

  <CODE>for (int i = 0; i <= args.length; i++ ) { </CODE>


Only the five predefined entity references are used

• &

• <

• >

• "

• '

Other entity references must be defined in a DTD

• &copy;

• &reg;

• &tm;

• &alpha;

• &eacute;

• &nbsp;

• etc.

Entity references must end with a semicolon.

• < is good

• &lt is bad

Numeric Character References

• Decimal:

  ¡	¡
  ¢	¢
  £	£
  ¤	¤
  ¥	¥
  ¦	¦

• Hexadecimal

  ¡	¡
  ¢	¢
  £	£
  ¤	¤
  ¥	¥
  ¦	¦

Rule 4: Never compromise on well-formedness

• Avoid MinML

• Avoid GMarkup

• Avoid fast "parsers" that skimp on necessary checks (Woodstox)

• It's a security issue

Validity

To be valid an XML document must be

1. Well-formed

2. Must have a DOCTYPE declaration specifying a Document Type Definition (DTD)

3. Must comply with the constraints specified in the DTD

A DTD for Songs

<!ELEMENT SONG (TITLE, COMPOSER+, PRODUCER*, PUBLISHER*,
                 LENGTH?, YEAR?, ARTIST+)>

<!ELEMENT TITLE (#PCDATA)>

<!ELEMENT COMPOSER (#PCDATA)>
<!ELEMENT PRODUCER (#PCDATA)>
<!ELEMENT PUBLISHER (#PCDATA)>
<!ELEMENT LENGTH (#PCDATA)>
<!-- This should be a four digit year like "1999",
     not a two-digit year like "99" -->
<!ELEMENT YEAR (#PCDATA)>

<!ELEMENT ARTIST (#PCDATA)>

A Valid Song Document

<?xml version="1.0"?>
<!DOCTYPE SONG SYSTEM "song.dtd">
<SONG>
  <TITLE>Hot Cop</TITLE>
  <COMPOSER>Jacques Morali</COMPOSER>
  <COMPOSER>Henri Belolo</COMPOSER>
  <COMPOSER>Victor Willis</COMPOSER>
  <PRODUCER>Jacques Morali</PRODUCER>
  <PUBLISHER>PolyGram Records</PUBLISHER>
  <LENGTH>6:20</LENGTH>
  <YEAR>1978</YEAR>
  <ARTIST>Village People</ARTIST>
</SONG>

Checking Validity

To check validity you pass the document through a validating parser which should report any errors it finds. For example,

$ xmllint --valid --noout invalidhotcop.xml
invalidhotcop.xml:10: element SONG: validity error : Element
SONG content does not follow the DTD, expecting
(TITLE , COMPOSER+ , PRODUCER* , PUBLISHER* , LENGTH? ,
YEAR? , ARTIST+), got (TITLE PRODUCER PUBLISHER LENGTH
YEAR ARTIST )
</SONG>
       ^

A valid document:

$ xmllint --valid --noout validhotcop.xml
$

Well-formedness vs. validity

• Well-formed documents are correct with or without a DTD. They adhere to the basic syntax rules of XML

• Valid documents also adhere to the constraints specified in a DTD

• All valid documents are well-formed; not all well-formed document are valid.

DTDs and Validity

• A Document Type Definition (DTD) describes the elements and attributes that may appear in a document

• Validation compares a particular document against a DTD

• Well-formedness is a prerequisite for validity

What is a DTD?

• A DTD lists the elements, attributes, and entities contained in a document

• A DTD for songs:

  <!ELEMENT SONG (TITLE, COMPOSER+, PRODUCER*, PUBLISHER*,
                   LENGTH?, YEAR?, ARTIST+)>

  <!ELEMENT TITLE (#PCDATA)>

  <!ELEMENT COMPOSER (#PCDATA)>
  <!ELEMENT PRODUCER (#PCDATA)>
  <!ELEMENT PUBLISHER (#PCDATA)>
  <!ELEMENT LENGTH (#PCDATA)>
  <!-- This should be a four digit year like "1999",
       not a two-digit year like "99" -->
  <!ELEMENT YEAR (#PCDATA)>

  <!ELEMENT ARTIST (#PCDATA)>

• Normally stored in a separate file

Internal DTD Subsets

<?xml version="1.0"?>
<!DOCTYPE SONG [
  <!ELEMENT SONG (TITLE, COMPOSER+, PRODUCER*,
                  PUBLISHER*, LENGTH?, YEAR?, ARTIST+)>

  <!ELEMENT TITLE (#PCDATA)>

  <!ELEMENT COMPOSER (#PCDATA)>
  <!ELEMENT PRODUCER (#PCDATA)>
  <!ELEMENT PUBLISHER (#PCDATA)>
  <!ELEMENT LENGTH (#PCDATA)>
  <!-- This should be a four digit year like "1999",
     not a two-digit year like "99" -->
  <!ELEMENT YEAR (#PCDATA)>

  <!ELEMENT ARTIST (#PCDATA)>
]>
<SONG>
  <TITLE>Hot Cop</TITLE>
  <COMPOSER>Jacques Morali</COMPOSER>
  <COMPOSER>Henri Belolo</COMPOSER>
  <COMPOSER>Victor Willis</COMPOSER>
  <PRODUCER>Jacques Morali</PRODUCER>
  <PUBLISHER>PolyGram Records</PUBLISHER>
  <LENGTH>6:20</LENGTH>
  <YEAR>1978</YEAR>
  <ARTIST>Village People</ARTIST>
</SONG>

Rule 5:

• Use internal DTD subsets for entity definitions

• Use external DTD subsets for validation

The importance of validation

• Ensures that data is correct before feeding it into a program

• Ensures that a format is followed

• Establishes what must be supported

• Not all documents need to be valid; sometimes well-formed is enough

Rule 6: Do compromise on validity

• Validity is optional.

• Ask, "Does this document contain the information I need?"

• Do not ask, "Does this document not contain anything I don't need?"

• Validation can determine which process should handle any given document.

• Humans count as processes for this purpose.

A More Complex Example

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<?xml-stylesheet type="text/css" href="song.css"?>
<!DOCTYPE SONG SYSTEM "intermediate_song.dtd">
<SONG CATEGORY="DISCO" ALBUM="The Best of the Village People">
  <TITLE>Hot Cop</TITLE>
  <COMPOSER>Jacques Morali</COMPOSER>
  <COMPOSER>Henri Belolo</COMPOSER>
  <COMPOSER>Victor Willis</COMPOSER>
  <PRODUCER>Jacques Morali</PRODUCER>
  <LYRICS_AVAILABLE/>
  <SHEET_MUSIC_AVAILABLE />
  <!-- The publisher is actually Polygram but I needed
       an example of a general entity reference. -->
  <PUBLISHER URL="http://www.amrecords.com/">
    A &amp; M Records
  </PUBLISHER>
  <LENGTH>6:20</LENGTH>
  <YEAR>1978</YEAR>
  <ARTIST URL="http://www.officialvillagepeople.com/">Village People</ARTIST>
  <!-- an empty element -->
  <PHOTO SRC="hotcop.jpg" ALT="Victor Willis in Cop Outfit"
         WIDTH="100" HEIGHT="200" />
  <DESCRIPTION>
    <!-- mixed content -->
    <PERSON>Victor Willis</PERSON>'s theme song is
    one of the lesser known of the <ARTIST>Village People</ARTIST>'s
    <IRONIC>hits</IRONIC>, and <OPINION>deservedly so</OPINION>.
    It never charted, <!-- need to verify this? -->
    but they didn't have enough genuine
    hits to fill a Best Of album, <OPINION>so some lesser numbers had
    to be <METAPHOR>pulled out of the recycle bin</METAPHOR></OPINION>.
  </DESCRIPTION>
</SONG>
<!-- You can tell what album I was
     listening to when I wrote this example -->

The XML Declaration

• At the top of the document, you normally find an XML declaration:

  <?xml version="1.0" encoding="ISO-8859-1" standalone="yes"?>

• version attribute

  • required

  • should have the value 1.0

• standalone attribute

  • yes

  • no

• encoding attribute

  • UTF-8

  • ISO-8859-1

  • etc.

Rule 7: Include an XML Declaration

• Helps identify XML files

• Helps humans

• Works in non-XML contexts such as text editors and XInclude parse="text"

• One caveat: don't include in XHTML

Empty-element Tags

  <LYRICS_AVAILABLE />
  <SHEET_MUSIC_AVAILABLE />

• Ends with /> instead of >

• <LYRICS_AVAILABLE/> is semantically the same as <LYRICS_AVAILABLE></LYRICS_AVAILABLE>

• Just syntax sugar

Empty-element tags in XHTML

• <BR/>, <HR/>, and <IMG/> instead of <BR>, <HR>, and <IMG>

• Web browsers deal inconsistently with these

• Can use <BR></BR> <HR></HR> <IMG></IMG> instead

• <BR CLASS="EMPTY"/> seems to work best.

• No semantic meaning

Attributes

<SONG CATEGORY="DISCO"
      ALBUM="The Best of the Village People">
...
  <ARTIST URL="http://www.officialvillagepeople.com/">
    Village People
  </ARTIST>
  <PHOTO SRC="hotcop.jpg"
         ALT="Victor Willis in Cop Outfit"
         WIDTH="100" HEIGHT="200" />

• name="value" same as in HTML

• or name='value' or name = 'value'

• Attribute order is not significant

Attribute values are quoted with either single or double quotes

• Good:

  • <A HREF="http://www.cafeconleche.org/">

  • <DIV ALIGN='CENTER'>

  • <A HREF="http://www.cafeconleche.org/">

  • <EMBED SRC="minnesotaswale.aif" hidden="true">

• Bad:

  • <A HREF=http://www.cafeconleche.org/>

  • <DIV ALIGN=CENTER>

  • <EMBED SRC=minnesotaswale.aif hidden=true>

  • <EMBED SRC="minnesotaswale.aif" hidden>

Rule 8: Use Attributes for Metadata; Elements for Content

• Attribute are for meta-data; elements are for data.

• Does the reader want to see the information? If yes, use element content; if no, use attributes.

• Attributes are good for ID numbers, URLs, references, and other information not directly relevant to the reader.

Rule 8.5: When not to use attributes

• Attributes can't hold structure well.

• Attributes cannot be duplicated on an element

• Elements allow you to include meta-meta-data (information about the information about the information)

• Not everyone always agrees on what is and isn't meta-data

• Elements are more extensible in the face of future changes

Comments

<!-- You can tell what album I was listening to when I wrote this example -->

• Essentially the same as in HTML

Comments in DTDs

• DTDs seem as obfuscated as C.

• Comments can improve this by giving example elements

• Comments are the same as in HTML; e.g. <!-- Comment -->

<!-- e.g. "1999 New York Women Composers",
     not "Copyright 1999 New York Women Composers" -->
<!ELEMENT copyright (#PCDATA)>

Rule 9: Don't Rely on Comments

• Comments are for humans, not programs.

• Some processes strip comments

• Some APIs ignore comments

• No JSP, PHP, ASP, script, style, etc. comments

• Use processing instructions or elements instead

• e.g. WordPress <!--more-->, Google AdSense section targetting

Processing Instructions

• Divided into a target and data for the target

• The target must be an XML name

• The data can have an effectively arbitrary format

• <?robots index="yes" follow="no"?>
  <?xml-stylesheet href="pelicans.css" type="text/css"?>
  <?php
    mysql_connect("database.unc.edu", "clerk", "password");
    $result = mysql("CYNW", "SELECT LastName, FirstName FROM Employees
      ORDER BY LastName, FirstName");
    $i = 0;
    while ($i < mysql_numrows ($result)) {
       $fields = mysql_fetch_row($result);
       echo "<person>$fields[1] $fields[0] </person>\r\n";
       $i++;
    }
    mysql_close();
  ?>


• These are for programs

Rule 10: Use processing instructions for prcess specific content

• xml-stylesheet

• PHP

• robots

Mixed Content

<DESCRIPTION>
  <PERSON>Victor Willis</PERSON>'s theme song is
  one of the lesser known of the
  <ARTIST>Village People</ARTIST>'s <IRONIC>hits</IRONIC>,
  and <OPINION>deservedly so</OPINION>. It never
  charted, <!-- need to verify this? -->
  but the group didn't have enough genuine
  hits to fill a Best Of album, <OPINION>so some
  lesser numbers had to be <METAPHOR>pulled out of the
  recycle bin</METAPHOR></OPINION>.
</DESCRIPTION>

Mixed Content

• Element order matters; an XML document is not a table

• White space is significant

• Applications may choose to ignore order and white space

• Narrative documents exist

A More Complex DTD

<!ELEMENT SONG (TITLE, PHOTO?, COMPOSER+, PRODUCER*,
              LYRICS_AVAILABLE?, SHEET_MUSIC_AVAILABLE?,
              PUBLISHER*, LENGTH?, YEAR?, ARTIST+,
              PHOTO?, DESCRIPTION)>

<!ATTLIST SONG CATEGORY (DISCO | POP | ROCK) #REQUIRED
               ALBUM CDATA #IMPLIED>
<!ATTLIST ARTIST URL CDATA #IMPLIED>
<!ATTLIST PUBLISHER URL CDATA #IMPLIED>

<!ELEMENT LYRICS_AVAILABLE EMPTY>
<!ELEMENT PHOTO EMPTY>
<!ELEMENT SHEET_MUSIC_AVAILABLE EMPTY>

<!ATTLIST PHOTO SRC    CDATA #REQUIRED
                ALT    CDATA #REQUIRED
                WIDTH  CDATA #REQUIRED
                HEIGHT CDATA #REQUIRED
>

<!ELEMENT ARTIST    (#PCDATA)>
<!ELEMENT METAPHOR  (#PCDATA)>
<!ELEMENT IRONIC    (#PCDATA)>
<!ELEMENT PERSON    (#PCDATA)>
<!ELEMENT TITLE     (#PCDATA)>
<!ELEMENT COMPOSER  (#PCDATA)>
<!ELEMENT PRODUCER  (#PCDATA)>
<!ELEMENT PUBLISHER (#PCDATA)>
<!ATTLIST PUBLISHER xlink:type CDATA #IMPLIED
                    xlink:href CDATA #IMPLIED
>

<!ELEMENT LENGTH (#PCDATA)>
<!-- This should be a four digit year like "1999",
     not a two-digit year like "99" -->
<!ELEMENT YEAR (#PCDATA)>

<!ELEMENT OPINION (#PCDATA | METAPHOR)*>
<!ELEMENT DESCRIPTION (#PCDATA | PERSON | IRONIC | OPINION
                               | METAPHOR | ARTIST | TITLE)*>

Namespaces

• Let you mix and match different XML vocabularies

• URIs identify elements and attributes that belong to different XML applications

• Prefixes can change if the URI stay the same

<SONG xmlns="http://www.cafeconleche.org/namespace/song"
      xmlns:xlink="http://www.w3.org/1999/xlink">
  <TITLE>Hot Cop</TITLE>
  <PHOTO  xlink:type="simple" xlink:show="onLoad"
    xlink:href="hotcop.jpg"
    ALT="Victor Willis in Cop Outfit"
    WIDTH="100" HEIGHT="200"/>
  <COMPOSER>Jacques Morali</COMPOSER>
  <PUBLISHER xlink:type="simple" xlink:href="http://www.amrecords.com/">
    A &amp; M Records
  </PUBLISHER>
  <ARTIST>Village People</ARTIST>
</SONG>

Raison d'etre

1. To distinguish between elements and attributes from different vocabularies with the same names.

2. To group all related elements and attributes together so that a parser can easily recognize them.

The Need for Namespaces

• The XLink specification defines an attribute with the name href. The XHTML specification also uses href attributes on some elements. And the XInclude specification uses href attributes.

• An XSLT style sheet that will transform XHTML documents containing both Scalable Vector Graphics (SVG) pictures and MathML equations into XSL-Formatting object documents.

  • The a, title, script, style and font elements in XHTML and SVG

  • The table element in XHTML and XSL-FO

  • The text element in XSLT and SVG

  • The set element in MathML and SVG

• An XSLT stylesheet that transforms a style sheet in an older version of the XSLT specification to a style sheet in a newer version of the XSLT specification.

Namespaces disambiguate elements

• Namespaces disambiguate elements with the same name from each other by attaching different prefixes to names from different XML applications.

• Each prefix is associated with a URI.

  • Names whose prefixes are associated with the same URI are in the same namespace.

  • Names whose prefixes are associated with different URIs are in different namespaces.

Qualified Names

• Elements and attributes that are in namespaces have names that contain exactly one colon. They look like this:

  rdf:description
  xlink:type
  xsl:template


• Everything before the colon is called the prefix

• Everything after the colon is called the local part.

• The complete name including the colon is called the qualified name.

Namespace URIs

• Each prefix in a qualified name is associated with a URI.

• For example, all elements in XSLT 1.0 style sheets are associated with the http://www.w3.org/1999/XSL/Transform URI.

• The customary prefix xsl is a shorthand for the longer URI http://www.w3.org/1999/XSL/Transform.

• You can't use the URI in the element name directly.

  {http://www.w3.org/1999/XSL/Transform}template

Binding Prefixes to Namespace URIs

• Prefixes are bound to namespace URIs by attaching an xmlns:prefix attribute to the prefixed element or one of its ancestors.

  <svg:svg xmlns:svg="http://www.w3.org/2000/svg"
   width="12cm" height="10cm">
    <svg:ellipse rx="110" ry="130" />
    <svg:rect x="4cm" y="1cm" width="3cm" height="6cm" />
  </svg:svg>


• Bindings have scope within the element where they're declared.

• An SVG processor can recognize all three of these elements as SVG elements because they all have prefixes bound to the particular URI defined by the SVG specification.

Binding Prefixes to Namespace URIs Example

<xhtml:html xmlns:xhtml="http://www.w3.org/1999/xhtml"
            xmlns:xlink="http://www.w3.org/1999/xlink">
  <xhtml:head>
        <xhtml:title>Three Namespaces</xhtml:title>
      </xhtml:head>
  <xhtml:body>
    <xhtml:h1 align="center">An Ellipse and a Rectangle</xhtml:h1>
    <svg:svg xmlns:svg="http://www.w3.org/2000/svg"
             width="12cm" height="10cm">
      <svg:ellipse rx="110" ry="130" />
      <svg:rect x="4cm" y="1cm"
                width="3cm" height="6cm" />
    </svg:svg>
    <xhtml:p xlink:type="simple"
      xlink:href="ellipses.html">
      More about ellipses
    </xhtml:p>
    <xhtml:p xlink:type="simple"
             xlink:href="rectangles.html">
      More about rectangles
    </xhtml:p>
    <xhtml:hr/>
    <xhtml:p>Last Modified February 13, 2000</xhtml:p>
  </xhtml:body>
</xhtml:html>

The Default Namespace

• Indicate that an unprefixed element and all its unprefixed descendant elements belong to a particular namespace by attaching an xmlns attribute with no prefix:

  <html xmlns="http://www.w3.org/1999/xhtml"
         xmlns:xlink="http://www.w3.org/1999/xlink">
    <head><title>Three Namespaces</title></head>
    <body>
      <h1 align="center">An Ellipse and a Rectangle</h1>
      <svg:svg xmlns:svg="http://www.w3.org/2000/svg"
               width="12cm" height="10cm">
        <svg:ellipse rx="110" ry="130" />
        <svg:rect x="4cm" y="1cm" width="3cm" height="6cm" />
      </svg:svg>
      <p xlink:type="simple"
        xlink:href="ellipses.html">
        More about ellipses
      </p>
      <p xlink:type="simple" xlink:href="rectangles.html">
        More about rectangles
      </p>
      <hr/>
      <p>Last Modified February 13, 2000</p>
    </body>
  </html>

• Both the html and head elements are in the http://www.w3.org/1999/xhtml namespace.

• Default namespaces apply only to elements, not to attributes. Thus in the above example the align, rx, ry, x, and y attributes are not in any namespace.

Default Namespaces Can Nest

• You can change the default namespace within a particular element by adding an xmlns attribute to the element:

  <html xmlns="http://www.w3.org/1999/xhtml"
              xmlns:xlink="http://www.w3.org/1999/xlink">
    <head><title>Three Namespaces</title></head>
    <body>
      <h1 align="center">An Ellipse and a Rectangle</h1>
      <svg xmlns="http://www.w3.org/2000/svg"
               width="12cm" height="10cm">
        <ellipse rx="110" ry="130" />
        <rect x="4cm" y="1cm" width="3cm" height="6cm" />
      </svg>
      <p xlink:type="simple"
        xlink:href="ellipses.html">
        More about ellipses
      </p>
      <p xlink:type="simple" xlink:href="rectangles.html">
        More about rectangles
      </p>
      <hr/>
      <p>Last Modified February 13, 2000</p>
    </body>
  </html>

Unprefixed attributes are never in any namespace

• Being an attribute of an element in the http://www.w3.org/1999/xhtml namespace is not sufficient to put the attribute in the http://www.w3.org/1999/xhtml namespace.

• The only way an attribute belongs to a namespace is if it has a declared prefix, like xlink:type and xlink:href.

Rule 11: URIs matter; not prefixes

• Many XML applications have recommended prefixes. For example, SVG elements often use the prefix svg and Resource Description Framework (RDF) elements often have the prefix rdf. However, these prefixes are simply conventions, and can be changed based on necessity, convenience, or whim.

• Before a prefix can be used, it must be bound to a URI.

• These URIs are standardized, not the prefixes.

• The prefix can change as long as the URI stays the same.

Namespace URIs do not necessarily point to a document, page, or schema

• Purely formal

• Can point somewhere but do not have to

• Parsers compare namespace URIs on a character by character basis. These are three different namespaces:

  • http://www.w3.org/1999/XSL/Transform

  • http://www.w3.org/1999/XSL/Transform/

  • http://www.w3.org/1999/XSL/Transform/index.html

•

Namespaces and DTDs

• DTDs must declare the qualified names

  <!ELEMENT svg:text (#PCDATA)>

• If the prefix changes, the DTD needs to change too.

• Parameter entity references can help when the prefix changes or is removed:

  <!ENTITY % mathml-colon      ''>
  <!ENTITY % mathml-prefix     ''>

  <!ENTITY % mathml-exp        '%mathml-prefix;%mathml-colon;exp' >
  <!ENTITY % mathml-abs        '%mathml-prefix;%mathml-colon;abs' >
  <!ENTITY % mathml-arg        '%mathml-prefix;%mathml-colon;arg' >
  <!ENTITY % mathml-real       '%mathml-prefix;%mathml-colon;real' >
  <!ENTITY % mathml-imaginary  '%mathml-prefix;%mathml-colon;imaginary' >


• DTDs need to declare the xmlns and xmlns:prefix attributes too:

  <!ATTLIST svg xmlns (CDATA) #FIXED "http://www.w3.org/2000/svg">

  <!ATTLIST svg:svg xmlns:svg (CDATA) #FIXED "http://www.w3.org/2000/svg">

  However, you should not rely on this. Always explicitly specify the namespace declaration in the instance documents.

Why Use XML?

• Domain-Specific (Vertical) Markup Languages

• Self-Describing Data

• Interchange of Data Among Applications

• Structured and Integrated Data

Domain-Specific Markup Languages

• Markup language for a vertical market

• Non-proprietary format

• Don't pay for what you don't use

Self-Describing Data

• Much data is lost due to format problems

• XML is very simple

• XML is self-describing

• XML is well documented

An XML Fragment

<PERSON ID="p1100" SEX="M">
  <NAME>
    <GIVEN>Judson</GIVEN>
    <SURNAME>McDaniel</SURNAME>
  </NAME>
  <BIRTH>
    <DATE>21 Feb 1834</DATE>
  </BIRTH>
  <DEATH>
    <DATE>9 Dec 1905</DATE>
  </DEATH>
</PERSON>

Interchange of Data Among Applications

• E-commerce

• Syndication

• EAI and EDI

Can assemble data from multiple sources

• A document can be assembled from multiple physical storage entities

• These may be files, database queries, or anything that can be referred to by a URI

• Can even include non-XML content

XML Applications

• A specific markup language that uses the XML meta-syntax is called an XML application

• Different XML applications have their own more constricted syntaxes and vocabularies within the broader XML syntax

• Further syntax can be layered on top of this; e.g. data typing through schemas

Example XML Applications

• Web Pages

• Mathematical Equations

• Music Notation

• Vector Graphics

• Web Services

• and more...

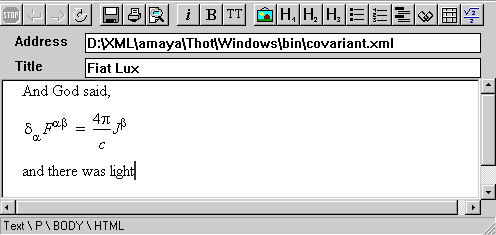

Mathematical Markup Language

<?xml version="1.0"?>
<!DOCTYPE html
     PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
            "../xhtml1/transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>Fiat Lux</title>
</head>
<body>

<p>
And God said,
</p>

<math xmlns="http://www.w3.org/1998/Math/MathML">
  <mrow>
    <msub>
      <mi>&delta;</mi>
      <mi>&alpha;</mi>
    </msub>
    <msup>
      <mi>F</mi>
      <mi>&alpha;&beta;</mi>
    </msup>
    <mo>=</mo>
    <mfrac>
      <mrow>
        <mn>4</mn>
        <mi>&pi;</mi>
      </mrow>
      <mi>c</mi>
    </mfrac>
    <msup>
      <mi>J</mi>
      <mrow>
        <mi>&beta;</mi>
      </mrow>
    </msup>
  </mrow>
</math>

<p>
and there was light.
</p>
</body>
</html>

RSS

<?xml version="1.0"?>
<rss version="0.92">
  <channel>
    <title>Cafe con Leche XML News and Resources</title>
    <link>http://www.cafeconleche.org/</link>
    <description>Cafe con Leche is the preeminent independent source of XML information on the net. Cafe con Leche is neither beholden to specific companies nor to advertisers. At Cafe con Leche you'll find many resources to help you develop your XML skills here including daily news summaries, examples, book reviews, mailing lists and more.</description>
    <language>en-us</language>
    <copyright>Copyright 2005 Elliotte Rusty Harold</copyright>
    <webMaster>elharo@metalab.unc.edu</webMaster>
    <image>
      <title>Cafe con Leche</title>
      <url>http://www.cafeconleche.org/cup.gif</url>
      <link>http://www.cafeconleche.org/</link>
      <width>89</width>
      <height>67</height>
      <description>Cafe con Leche is the preeminent independent source of XML information on the net. Cafe con Leche is neither beholden to specific companies nor to advertisers. At Cafe con Leche you'll find many resources to help you develop your XML skills here including daily news summaries, examples, book reviews, mailing lists and more.</description>
    </image>
    <item>
      <title>IBM developerWorks has published my latest article, Encode your XML documents in UTF-8.
          </title>
      <description>IBM developerWorks has published my latest article, Encode your XML documents in UTF-8. In this article inspired by Google's Sitemaps service, I explain why I think it's time to stop bothering with other encodings and just choose UTF-8 once and for all.</description>
      <link>http://www.cafeconleche.org/#news2005September2</link>
    </item>
    <item>
      <title>The Apache XML Project has released version 2.7.0 of Xerces-C, an open source schema validating XML parser written in reasonably cross-platform C++.
          </title>
      <description>The Apache XML Project has released version 2.7.0 of Xerces-C, an open source schema validating XML parser written in reasonably cross-platform C++. Version 2.7.0 includes a number of small improvements: More...</description>
      <link>http://www.cafeconleche.org/#news2005September2</link>
    </item>
  </channel>
</rss>

Books

DocBook

• Processing XML with Java

• DocBook: The Definitive Guide

OpenOffice

• XML Fundamentals

TEI

Over 100 different corpora including:

• NYPL African American Women Writers of the 19th Century

• African Languages Lexicon Project (ALLEX)

• American Memory from the Library of Congress

• American Sunday School Books Digitization Project

• Boccaccio's Decameron

• Brown University Women Writers Project

• The Canterbury Tales Project

• Chinese/Japanese/Korean (CJK)-English Dictionary

• Mark Twain Project

• New Left Review

• Newton Manuscript Project

• Perseus Project

• Voltaire Foundation

Vector Graphics

• Scalable Vector Graphics (SVG)

  • Adobe SVG Plug-In

  • Apache Batik

  • Firefox 1.5

SOAP

WSDL

Database interchange and export

Narrative vs. Record-Like

XML is not:

• Objects

• Tables

XML for XML

• XSL: The Extensible Stylesheet Language

• The W3C XML Schema Language

• XLink: The Extensible Linking Language

XSL: The Extensible Stylesheet Language

• XSL Transformations

• XSL Formatting Objects

Schemas

• Data typing in XML is weak

• DTDs use a strange non-XML syntax

• Limited compatibility with namespaces

• Limited extensibility

• Schemas fix all these problems

• There are multiple schema languages including:

  • Rick Jelliffe's Schematron

  • Murato Makoto's and James Clark's RELAX NG

  • The W3C XML Schema Language

W3C XML Schema Language Example

<?xml version="1.0"?>
<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema">

  <xsd:element name="SONG" type="SongType"/>

  <xsd:complexType name="SongType">
    <xsd:sequence>
      <xsd:element name="TITLE" type="xsd:string"
                   minOccurs="1" maxOccurs="1"/>
      <xsd:element name="COMPOSER"  type="xsd:string"
                   minOccurs="1" maxOccurs="unbounded"/>
      <xsd:element name="PRODUCER"  type="xsd:string"
                   minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element name="PUBLISHER" type="xsd:string"
                   minOccurs="0" maxOccurs="1"/>

      <xsd:element name="LENGTH" type="xsd:duration"
                   minOccurs="0" maxOccurs="1"/>
      <xsd:element name="YEAR"   type="xsd:gYear"
                   minOccurs="1" maxOccurs="1"/>

      <xsd:element name="ARTIST" type="xsd:string"
                   minOccurs="1" maxOccurs="unbounded"/>
    </xsd:sequence>
  </xsd:complexType>

</xsd:schema>

XLinks

• Any element can be a link

• Links can be bi-directional

• Links can be separated from the documents they connect

<footnote xlink:type="simple" xlink:href="footnote7.xml">7</footnote>

File Formats, in-house applications, and other behind the scenes uses

• Microsoft Office 12

• OpenOffice

• Netscape What's Related

When should you not use XML?

• JPEG

• MP3

• Quicktime

Processing XML

Processing XML with Java is easy

• You need a JDK

• You need some free class libraries

• You need a text editor

• You need some data to process

XML API Styles

• Push: SAX, XNI

• Tree: DOM, JDOM, XOM, dom4j, Sparta

• Data binding: Castor, Zeus, JAXB

• Pull: XMLPULL, StAX, NekoPull

• Transform: XSLT, TrAX, XQuery

Parser APIs

• SAX, the Simple API for XML

  • SAX1

  • SAX2

• DOM, the Document Object Model

  • DOM Level 0

  • DOM Level 1

  • DOM Level 2

  • DOM Level 3

• JDOM

• dom4j

• XOM

• TrAX

• XMLPULL

• StAX

• Proprietary APIs

  • Parser specific APIs

  • Sun's Java API for XML Parsing = SAX1 + DOM1 + a few factory classes

  • JSR-000031 XML Data Binding Specification from Bluestone, Sun, webMethods et al.

    The proposed specification will define an XML data-binding facility for the JavaTM Platform. Such a facility compiles an XML schema into one or more Java classes. These automatically-generated classes handle the translation between XML documents that follow the schema and interrelated instances of the derived classes. They also ensure that the constraints expressed in the schema are maintained as instances of the classes are manipulated.

XML Infoset

• A data model for the information content of an XML document

• Says what counts and what doesn't

• Can be represented in ways other than real XML

• Not always well-formed!

What Counts in the Infoset

• Element and attribute names

• All PCDATA including whitespace

• Normalized attribute values

• Processing instructions

• DOCTYPE

• Element order

What Doesn't Count

• White space in tags

• Attribute quotes

• CDATA sections vs. entity references vs. numeric character references

• Element and attribute declarations

Entities

• An XML document is made up of one or more physical storage units called entities

• Entity references:

  • Parsed internal general entity references like &

  • Parsed external general entity references

  • Unparsed external general entity references

  • External parameter entity references

  • Internal parameter entity references

• Reading an XML document is not the same thing as reading an XML file

• The file contains entity references.

• The document contains the entities' replacement text.

• When you use a parser to read a document you'll get the text including characters like <. You will not see the entity references.

Parsed Character Data

• Character data left after entity references are replaced with their text

• Given the element

  <PUBLISHER>A &amp; M Records</PUBLISHER>

  The parsed character data is

  A & M Records

CDATA sections

• Used to include large blocks of text with lots of normally illegal literal characters like < and &, typically XML or HTML.

  <p>You can use a default <code>xmlns</code>
  attribute to avoid having to add the svg prefix to all
  your elements:</p>
  <![CDATA[
    <svg xmlns="http://www.w3.org/2000/svg"
         width="12cm" height="10cm">
      <ellipse rx="110" ry="130" />
      <rect x="4cm" y="1cm" width="3cm" height="6cm" />
    </svg>
  ]]>


• CDATA is for human authors, not for programs!

The Five Layers of XML Processing

Writing XML Documents with Java

I have learned to be even more skeptical than before about the slew of APIs doing the rounds in the XML development community. An XML instance is just a documents, guys; you need to understand the document structure and document interchange choreography of your systems. Don't let some API get in the way of your understanding of XML systems at the document level. If you do, you run the risk becoming a slave to the APIs and hitting a wall when the APIs fail you.

--Sean McGrath
Read the rest in ITworld.com - XML IN PRACTICE - APIs Considered Harmful

You don't always need a new API

• XML documents are text

• Any Writer can produce an XML document

Unicode

• XML documents and APIs are Unicode

• Unicode encodings:

  • UTF-8

  • UTF-16 big endian

  • UCS-4 big endian

  • UTF-16 little endian

  • UCS-4 little endian

• Non-Unicode encodings:

  • ASCII (subset of UTF-8)

  • MacRoman

  • Windows ANSI

  • Latin 1 through Latin 15

  • SJIS Japanese

  • Big-5 Chinese

  • K0I8R Cyrillic

  • Many others...

Readers and Writers

• Java's InputStreamReader and OutputStreamWriter classes are very helpful

  URL u = new URL(
   "http://www.ascc.net/xml/test/wfdtd/utf-8/application_xml/zh-utf8-8.xml");
  InputStream in = u.openStream();
  InputStreamReader reader = new InputStreamReader(in, "UTF-8");
  int c;
  while ((c = in.read()) != -1) System.out.write(c);


A Java program that writes Fibonacci numbers into a text file

import java.math.BigInteger;
import java.io.*;

public class FibonacciText {

  public static void main(String[] args) {

    try {
      OutputStream fout = new FileOutputStream("fibonacci.txt");
      Writer out = new OutputStreamWriter(fout, "8859_1");

      BigInteger low  = BigInteger.ONE;
      BigInteger high = BigInteger.ONE;

      for (int i = 1; i <= 25; i++) {
        out.write(low.toString() + "\r\n");
        BigInteger temp = high;
        high = high.add(low);
        low = temp;
      }
      out.write(high.toString() + "\r\n");

      out.close();
    }
    catch (IOException ex) {
      System.err.println(ex);
    }
  }
}

fibonacci.txt

1
1
2
3
5
8
13
21
34
55
89
144
233
377
610
987
1597
2584
4181
6765
10946
17711
28657
46368
75025
121393
317811

A Java program to write Fibonacci numbers into an XML file

import java.math.BigInteger;
import java.io.*;

public class FibonacciXML {

  public static void main(String[] args) {

    try {
      OutputStream  fout = new FileOutputStream("fibonacci.xml");
      Writer out = new OutputStreamWriter(fout, "UTF-8");

      BigInteger low  = BigInteger.ONE;
      BigInteger high = BigInteger.ONE;

      out.write("<?xml version=\"1.0\"?>\r\n");
      out.write("<Fibonacci_Numbers>\r\n");
      for (int i = 1; i <= 25; i++) {
        out.write("  <fibonacci index=\"" + i + "\">");
        out.write(low.toString());
        out.write("</fibonacci>\r\n");
        BigInteger temp = high;
        high = high.add(low);
        low = temp;
      }
      out.write("</Fibonacci_Numbers>");

      out.close();
    }
    catch (IOException ex) {
      System.err.println(ex);
    }
  }
}

fibonacci.xml

<?xml version="1.0"?>
<Fibonacci_Numbers>
  <fibonacci index="1">1</fibonacci>
  <fibonacci index="2">1</fibonacci>
  <fibonacci index="3">2</fibonacci>
  <fibonacci index="4">3</fibonacci>
  <fibonacci index="5">5</fibonacci>
  <fibonacci index="6">8</fibonacci>
  <fibonacci index="7">13</fibonacci>
  <fibonacci index="8">21</fibonacci>
  <fibonacci index="9">34</fibonacci>
  <fibonacci index="10">55</fibonacci>
  <fibonacci index="11">89</fibonacci>
  <fibonacci index="12">144</fibonacci>
  <fibonacci index="13">233</fibonacci>
  <fibonacci index="14">377</fibonacci>
  <fibonacci index="15">610</fibonacci>
  <fibonacci index="16">987</fibonacci>
  <fibonacci index="17">1597</fibonacci>
  <fibonacci index="18">2584</fibonacci>
  <fibonacci index="19">4181</fibonacci>
  <fibonacci index="20">6765</fibonacci>
  <fibonacci index="21">10946</fibonacci>
  <fibonacci index="22">17711</fibonacci>
  <fibonacci index="23">28657</fibonacci>
  <fibonacci index="24">46368</fibonacci>
  <fibonacci index="25">75025</fibonacci>
</Fibonacci_Numbers>

Single quoted attribute values are a little cleaner

import java.math.BigInteger;
import java.io.*;

public class FibonacciApos {

  public static void main(String[] args) {

    try {
      OutputStream  fout = new FileOutputStream("fibonacci_apos.xml");
      Writer out = new OutputStreamWriter(fout);

      BigInteger low  = BigInteger.ONE;
      BigInteger high = BigInteger.ONE;

      out.write("<?xml version='1.0'?>\r\n");
      out.write("<Fibonacci_Numbers>\r\n");
      for (int i = 1; i <= 25; i++) {
        out.write("  <fibonacci index='" + i + "'>");
        out.write(low.toString());
        out.write("</fibonacci>\r\n");
        BigInteger temp = high;
        high = high.add(low);
        low = temp;
      }
      out.write("</Fibonacci_Numbers>");

      out.close();
    }
    catch (IOException ex) {
      System.err.println(ex);
    }
  }
}

Suppose you want to include a DTD

import java.math.BigInteger;
import java.io.*;

public class FibonacciDTD {

  public static void main(String[] args) {

    try {
      OutputStream fout = new FileOutputStream("valid_fibonacci.xml");
      Writer out = new OutputStreamWriter(fout, "UTF-8");

      BigInteger low  = BigInteger.ONE;
      BigInteger high = BigInteger.ONE;

      out.write("<?xml version=\"1.0\"?>\r\n");
      out.write("<!DOCTYPE Fibonacci_Numbers [\r\n");
      out.write("  <!ELEMENT Fibonacci_Numbers (fibonacci*)>\r\n");
      out.write("  <!ELEMENT fibonacci (#PCDATA)>\r\n");
      out.write("  <!ATTLIST fibonacci index CDATA #IMPLIED>\r\n");
      out.write("]>\r\n");
      out.write("<Fibonacci_Numbers>\r\n");
      for (int i = 1; i <= 25; i++) {
        out.write("  <fibonacci index=\"" + i + "\">");
        out.write(low.toString());
        out.write("</fibonacci>\r\n");

        BigInteger temp = high;
        high = high.add(low);
        low = temp;
      }
      out.write("</Fibonacci_Numbers>");

      out.close();
    }
    catch (IOException ex) {
      System.err.println(ex);
    }
  }
}

valid_fibonacci.xml

<?xml version="1.0"?>
<!DOCTYPE Fibonacci_Numbers [
  <!ELEMENT Fibonacci_Numbers (fibonacci*)>
  <!ELEMENT fibonacci (#PCDATA)>
  <!ATTLIST fibonacci index CDATA #IMPLIED>
]>
<Fibonacci_Numbers>
  <fibonacci index="0">0</fibonacci>
  <fibonacci index="1">1</fibonacci>
  <fibonacci index="2">1</fibonacci>
  <fibonacci index="3">2</fibonacci>
  <fibonacci index="4">3</fibonacci>
  <fibonacci index="5">5</fibonacci>
  <fibonacci index="6">8</fibonacci>
  <fibonacci index="7">13</fibonacci>
  <fibonacci index="8">21</fibonacci>
  <fibonacci index="9">34</fibonacci>
  <fibonacci index="10">55</fibonacci>
  <fibonacci index="11">89</fibonacci>
  <fibonacci index="12">144</fibonacci>
  <fibonacci index="13">233</fibonacci>
  <fibonacci index="14">377</fibonacci>
  <fibonacci index="15">610</fibonacci>
  <fibonacci index="16">987</fibonacci>
  <fibonacci index="17">1597</fibonacci>
  <fibonacci index="18">2584</fibonacci>
  <fibonacci index="19">4181</fibonacci>
  <fibonacci index="20">6765</fibonacci>
  <fibonacci index="21">10946</fibonacci>
  <fibonacci index="22">17711</fibonacci>
  <fibonacci index="23">28657</fibonacci>
  <fibonacci index="24">46368</fibonacci>
</Fibonacci_Numbers>

To Learn More

• Processing XML with Java

  • Elliotte Rusty Harold

  • Addison Wesley, 2002

  • Chapters 3-4:

    • Chapter 3, Writing XML with Java: http://www.cafeconleche.org/books/xmljava/chapters/ch03.html

    • Chapter 4, Converting Flat Files to XML: http://www.cafeconleche.org/books/xmljava/chapters/ch04.html




Reading XML Documents with SAX

Actually, SAX2 has ** MUCH ** better infoset support than DOM does. Yes, I've done the detailed analysis.

--David Brownell on the xml-dev mailing list

Reading XML Documents

• The stereotypical "Desperate Perl Hacker" (DPH) is supposed to be able to write an XML parser in a weekend.

• The parser does the hard work for you.

• Your code reads the document through the parser's API.

SAX

• Public domain, developed on xml-dev mailing list

• Maintained by David Megginson

• org.xml.sax package

• http://www.saxproject.org/

• http://sax.sourceforge.net/

• Event based

SAX Parsers for Java

The Horrors of the CLASSPATH

• Java 1.4.x bundle Crimson and Xalan

• These are loaded before anything in the CLASSPATH or jre/lib/ext directory

• Use jre/lib/endorsed to override (You must create this directory.)

• Saxon is incompatible with Ant.

The SAX2 Process

1. Use the factory method XMLReaderFactory.createXMLReader() to retrieve a parser-specific implementation of the XMLReader interface

2. Your code registers a ContentHandler with the parser

3. An InputSource feeds the document into the parser

4. As the document is read, the parser calls back to the methods of the ContentHandler to tell it what it's seeing in the document.

Making an XMLReader

• The XMLReaderFactory.createXMLReader() method instantiates an XMLReader subclass named by the org.xml.sax.driver system property:

  try {
    XMLReader parser = XMLReaderFactory.createXMLReader();
  }
  catch (SAXException e) {
    System.err.println(e);
  }

  or

  System.setProperty("org.xml.sax.driver", "org.apache.xerces.parsers.SAXParser");
  try {
    XMLReader parser = XMLReaderFactory.createXMLReader();
  }
  catch (SAXException e) {
    System.err.println(e);
  }

• The XMLReaderFactory.createXMLReader(String className) method instantiates an XMLReader subclass named by its argument:

  try {
    XMLReader parser
     = XMLReaderFactory.createXMLReader(
        "org.apache.xerces.parsers.SAXParser");
  }
  catch (SAXException e) {
    System.err.println(e);
  }

• Or you can use the constructor in the package-specific class:

  XMLReader parser = new org.apache.xerces.parsers.SAXParser();


• Or all three:

      XMLReader parser;
      try {
        parser = XMLReaderFactory.createXMLReader();
      }
      catch (SAXException ex) {
        try {
          parser = XMLReaderFactory.createXMLReader(
           "org.apache.xerces.parsers.SAXParser");
        }
        catch (SAXException ex2) {
          parser = new org.apache.xerces.parsers.SAXParser();
        }
      }

Parsing a Document with XMLReader

import org.xml.sax.*;
import org.xml.sax.helpers.*;
import java.io.*;

public class SAX2Checker {

  public static void main(String[] args) {

    XMLReader parser;
    try {
      parser = XMLReaderFactory.createXMLReader();
    }
    catch (SAXException ex) {
      try {
        parser = XMLReaderFactory.createXMLReader(
         "org.apache.xerces.parsers.SAXParser");
      }
      catch (SAXException ex2) {
        System.out.println("Could not locate a parser."
         + "Please set the the org.xml.sax.driver property.");
        return;
      }
    }

    if (args.length == 0) {
      System.out.println("Usage: java SAX2Checker URL1 URL2...");
    }

    // start parsing...
    for (int i = 0; i < args.length; i++) {

      // command line should offer URIs or file names
      try {
        parser.parse(args[i]);
        // If there are no well-formedness errors
        // then no exception is thrown
        System.out.println(args[i] + " is well formed.");
      }
      catch (SAXParseException ex) { // well-formedness error
        System.out.println(args[i] + " is not well formed.");
        System.out.println(ex.getMessage()
         + " at line " + ex.getLineNumber()
         + ", column " + ex.getColumnNumber());
      }
      catch (SAXException ex) { // some other kind of error
        System.out.println(ex.getMessage());
      }
      catch (IOException ex) {
        System.out.println("Could not check " + args[i]
         + " because of the IOException " + ex);
      }
    }
  }
}

Sample Output from SAX2Checker

C:\>java SAX2Checker http://www.cafeconleche.org/
http://www.cafeconleche.org/ is not well formed.
The element type "dt" must be terminated by the
matching end-tag "</dt>".
at line 186, column 5

JAXP Brain Damage

• Under no circumstances, should you ever use javax.xml.parsers.SAXParser or SAXParserFactory

• These classes were designed to fill holes in SAX1. They are unnecessary and actively harmful when working with SAX2.

• Use XMLReader and XMLReaderFactory instead

The ContentHandler interface

package org.xml.sax;

public interface ContentHandler {

    public void setDocumentLocator(Locator locator);

    public void startDocument() throws SAXException;

    public void endDocument() throws SAXException;

    public void startPrefixMapping(String prefix, String uri)
     throws SAXException;

    public void endPrefixMapping(String prefix) throws SAXException;

    public void startElement(String namespaceURI, String localName,
     String qualifiedName, Attributes atts) throws SAXException;

    public void endElement(String namespaceURI, String localName,
     String qualifiedName) throws SAXException;

    public void characters(char[] text, int start, int length)
     throws SAXException;

    public void ignorableWhitespace(char[] text, int start, int length)
     throws SAXException;

    public void processingInstruction(String target, String data)
     throws SAXException;

    public void skippedEntity(String name) throws SAXException;
}

A Sample Application

• UserLand's RSS based list of Web logs at http://static.userland.com/weblogMonitor/logs.xml:

  <?xml version="1.0"?>
  <!-- <!DOCTYPE foo SYSTEM "http://msdn.microsoft.com/xml/general/htmlentities.dtd"> -->
  <weblogs>
    <log>
      <name>MozillaZine</name>
      <url>http://www.mozillazine.org</url>
      <changesUrl>http://www.mozillazine.org/contents.rdf</changesUrl>
      <ownerName>Jason Kersey</ownerName>
      <ownerEmail>kerz@en.com</ownerEmail>
      <description>THE source for news on the Mozilla Organization.  DevChats, Reviews, Chats, Builds, Demos, Screenshots, and more.</description>
      <imageUrl></imageUrl>
      <adImageUrl>http://static.userland.com/weblogMonitor/ads/kerz@en.com.gif</adImageUrl>
      </log>
    <log>
      <name>SalonHerringWiredFool</name>
      <url>http://www.salonherringwiredfool.com/</url>
      <ownerName>Some Random Herring</ownerName>
      <ownerEmail>salonfool@wiredherring.com</ownerEmail>
      <description></description>
      </log>
    <log>
      <name>Scripting News</name>
      <url>http://www.scripting.com/</url>
      <ownerName>Dave Winer</ownerName>
      <ownerEmail>dave@userland.com</ownerEmail>
      <description>News and commentary from the cross-platform scripting community.</description>
      <imageUrl>http://www.scripting.com/gifs/tinyScriptingNews.gif</imageUrl>
      <adImageUrl>http://static.userland.com/weblogMonitor/ads/dave@userland.com.gif</adImageUrl>
      </log>
    <log>
      <name>SlashDot.Org</name>
      <url>http://www.slashdot.org/</url>
      <ownerName>Simply a friend</ownerName>
      <ownerEmail>afriendofweblogs@weblogs.com</ownerEmail>
      <description>News for Nerds, Stuff that Matters.</description>
      </log>
    </weblogs>


Goal: Return a list of all the URLs in this list as java.net.URL objects

Design Decisions

• Should we return an array, an Enumeration, a List, or what?

• Perhaps we should use multiple threads?

SAX Design

• We do not know how many URLs there will be when we start parsing so let's use a Vector

• Single threaded for simplicity but a real program would use multiple threads

  • One to load and parse the data

  • Another thread (probably the main thread) to serve the data

  • Early data could be provided before the entire document had been read

• The character data of each url element needs to be stored. Everything else can be ignored.

• A startElement() with the name url indicates that we need to start storing this data.

• An endElement() with the name url indicates that we need to stop storing this data, convert it to a URL and put it in the Vector

• Should we hide the XML parsing inside a non-public class to avoid accidentally calling the methods from unexpected places or threads?

User Interface Class

import org.xml.sax.*;
import org.xml.sax.helpers.XMLReaderFactory;
import java.util.*;
import java.io.*;


public class WeblogsSAX {

  public static List listChannels()
   throws IOException, SAXException {
    return listChannels(
     "http://static.userland.com/weblogMonitor/logs.xml");
  }

  public static List listChannels(String uri)
   throws IOException, SAXException {

    XMLReader parser;
    try {
      parser = XMLReaderFactory.createXMLReader();
    }
    catch (SAXException ex) {
      parser = XMLReaderFactory.createXMLReader(
       "org.apache.xerces.parsers.SAXParser"
      );
    }
    Vector urls = new Vector(1000);
    ContentHandler handler = new URIGrabber(urls);
    parser.setContentHandler(handler);
    parser.parse(uri);
    return urls;

  }

  public static void main(String[] args) {

    try {
      List urls;
      if (args.length > 0) urls = listChannels(args[0]);
      else urls = listChannels();
      Iterator iterator = urls.iterator();
      while (iterator.hasNext()) {
        System.out.println(iterator.next());
      }
    }
    catch (IOException e) {
      System.err.println(e);
    }
    catch (SAXParseException e) {
      System.err.println(e);
      System.err.println("at line " + e.getLineNumber()
       + ", column " + e.getColumnNumber());
    }
    catch (SAXException e) {
      System.err.println(e);
    }
    catch (/* Unexpected */ Exception e) {
      e.printStackTrace();
    }

  }

}

ContentHandler Class

import org.xml.sax.*;
import java.net.*;
import java.util.Vector;

             // conflicts with java.net.ContentHandler
class URIGrabber implements org.xml.sax.ContentHandler {

  private Vector urls;

  URIGrabber(Vector urls) {
    this.urls = urls;
  }

  // do nothing methods
  public void setDocumentLocator(Locator locator) {}
  public void startDocument() throws SAXException {}
  public void endDocument() throws SAXException {}
  public void startPrefixMapping(String prefix, String uri)
   throws SAXException {}
  public void endPrefixMapping(String prefix) throws SAXException {}
  public void skippedEntity(String name) throws SAXException {}
  public void ignorableWhitespace(char[] text, int start, int length)
   throws SAXException {}
  public void processingInstruction(String target, String data)
   throws SAXException {}


  // Remember, there's no guarantee all the text of the
  // url element will be returned in a single call to characters
  private StringBuffer urlBuffer;
  private boolean collecting = false;

  public void startElement(String namespaceURI, String localName,
   String qualifiedName, Attributes atts) throws SAXException {

    if (qualifiedName.equals("url")) {
      collecting = true;
      urlBuffer = new StringBuffer();
    }

  }

  public void characters(char[] text, int start, int length)
   throws SAXException {

    if (collecting) {
      urlBuffer.append(text, start, length);
    }

  }

  public void endElement(String namespaceURI, String localName,
   String qualifiedName) throws SAXException {

    if (qualifiedName.equals("url")) {
      collecting = false;
      String url = urlBuffer.toString();
      try {
        urls.addElement(new URL(url));
      }
      catch (MalformedURLException e) {
        // skip this url
      }
    }
  }
}

Weblogs Output

% java Weblogs shortlogs.xml
http://www.mozillazine.org
http://www.salonherringwiredfool.com/
http://www.slashdot.org/

Event Based API Caveats

• You do not always have all the information you need at the time of a given callback

• You may need to store information in various data structures (stacks, queues,vectors, arrays, etc.) and act on it at a later point

• For example the characters() method is not guaranteed to give you the maximum number of contiguous characters. It may split a single run of characters over multiple method calls.

To Learn More

• Processing XML with Java

  • Elliotte Rusty Harold

  • Addison Wesley, 2002

  • Chapters 6-8:

    • Chapter 6, SAX: http://www.cafeconleche.org/books/xmljava/chapters/ch06.html

    • Chapter 7, The XMLReader Interface: http://www.cafeconleche.org/books/xmljava/chapters/ch07.html

    • Chapter 8, SAX Filters: http://www.cafeconleche.org/books/xmljava/chapters/ch08.html




• XML in a Nutshell, third edition

  • Elliotte Rusty Harold and W. Scott Means

  • O'Reilly & Associates, 2004

  • ISBN 0-596-00764-7

  • http://www.cafeconleche.org/books/xian3/


• SAX website: http://www.saxproject.org/

DOM, The Document Object Model

The DOM (like XML) is not a triumph of elegance; it's a triumph of "if we do not hang together, we shall hang separately." At least the Browser Wars were not followed by API Wars. Better a common API that we all love to hate than a bazillion contending APIs that carve the Web up into contending enclaves of True Believers.

--Mike Champion on the xml-dev mailing list, Thursday, September 27, 2001

Trees

• An XML document can be represented as a tree.

• It has a root.

• It has nodes.

• It is amenable to recursive processing.

• Not all applications agree on what the root is.

• Not all applications agree on what is and isn't a node.

Document Object Model

• Defines how XML and HTML documents are represented as objects in programs

• W3C Standard

• Defined in IDL; thus language independent

• HTML as well as XML

• Writing as well as reading

• Covers everything except internal and external DTD subsets

• DOM focuses more on the document; SAX focuses more on the parser.

DOM Evolution

• DOM Level 0:

• DOM Level 1, a W3C Standard

• DOM Level 2, a W3C Standard

• DOM Level 3: Several specs:

  • Document Object Model (DOM) Level 3 Core Specification

  • Document Object Model (DOM) Level 3 XPath Specification Version 1.0

  • Document Object Model (DOM) Level 3 Load and Save Specification

  • Document Object Model (DOM) Level 3 Validation Specification

  • Document Object Model (DOM) Level 3 Views and Formatting Specification

  • Document Object Model (DOM) Level 3 Events Specification Version 1.0

DOM Implementations for Java

• Apache XML Project's Xerces Java: http://xml.apache.org/xerces-j/index.html

• IBM's XML for Java: http://www.alphaworks.ibm.com/formula/xml

• Sun's Java API for XML http://java.sun.com/products/xml

• Oracle: http://technet.oracle.com/tech/xml

• GNU JAXP: http://www.gnu.org/software/classpathx/jaxp/jaxp.html

Eight Modules:

• Eight Modules:

  • Core: org.w3c.dom *

  • HTML: org.w3c.dom.html

  • Views: org.w3c.dom.views

  • StyleSheets: org.w3c.dom.stylesheets

  • CSS: org.w3c.dom.css

  • Events: org.w3c.dom.events *

  • Traversal: org.w3c.dom.traversal *

  • Range: org.w3c.dom.range

• Only the core and traversal modules really apply to XML. The other six are for HTML.

• * indicates Xerces support

DOM Trees

• Entire document is represented as a tree.

• A tree contains nodes.

• Some nodes may contain other nodes (depending on node type).

• Each document node contains:

  • zero or one doctype nodes

  • one root element node

  • zero or more comment and processing instruction nodes

org.w3c.dom

• 17 interfaces:

  • Attr

  • CDATASection

  • CharacterData

  • Comment

  • Document

  • DocumentFragment

  • DocumentType

  • DOMImplementation

  • Element

  • Entity

  • EntityReference

  • NamedNodeMap

  • Node

  • NodeList

  • Notation

  • ProcessingInstruction

  • Text

• plus one exception: DOMException

• Plus a bunch of HTML stuff in org.w3c.dom.html and other packages we will ignore

The DOM Process

1. Library specific code creates a parser

2. The parser parses the document and returns a DOM org.w3c.dom.Document object.

3. The entire document is stored in memory.

4. DOM methods and interfaces are used to extract data from this object

Parsing with a DOM Parser Example

import org.apache.xerces.parsers.*;
import org.w3c.dom.*;
import org.xml.sax.*;
import java.io.*;

public class DOMParserMaker {

  public static void main(String[] args) {

    // This is simpler but less flexible than the SAX approach.
    // Perhaps a good creational design pattern is needed here?

    DOMParser parser = new DOMParser();

    for (int i = 0; i < args.length; i++) {
      try {
        // Read the entire document into memory
        parser.parse(args[i]);

        Document d = parser.getDocument();
        // work with the document...
      }
      catch (SAXException ex) {
        System.err.println(ex);
      }
      catch (IOException ex) {
        System.err.println(ex);
      }
    }
  }
}

The JAXP Process

1. javax.xml.parsers.DocumentBuilderFactory.newInstance() creates a DocumentBuilderFactory

2. Configure the factory

3. The factory's newBuilder() method creates a DocumentBuilder

4. Configure the builder

5. The builder parses the document and returns a DOM org.w3c.dom.Document object.

6. The entire document is stored in memory.

7. DOM methods and interfaces are used to extract data from this object

Parsing documents with a JAXP DocumentBuilder

import javax.xml.parsers.*;
import org.w3c.dom.*;
import org.xml.sax.*;
import java.io.*;

public class JAXPParserMaker {

  public static void main(String[] args) {

    try {
      DocumentBuilderFactory builderFactory
       = DocumentBuilderFactory.newInstance();
      builderFactory.setNamespaceAware(true);
      DocumentBuilder parser
       = builderFactory.newDocumentBuilder();

      for (int i = 0; i < args.length; i++) {
        try {
          // Read the entire document into memory
          Document d = parser.parse(args[i]);
          // work with the document...
        }
        catch (SAXException ex) {
        System.err.println(ex);
        }
        catch (IOException ex) {
          System.err.println(ex);
        }

      } // end for

    }
    catch (ParserConfigurationException ex) {
      System.err.println("You need to install a JAXP aware parser.");
    }
  }
}

The Node Interface

package org.w3c.dom;

public interface Node {

  // NodeType
  public static final short ELEMENT_NODE                = 1;
  public static final short ATTRIBUTE_NODE              = 2;
  public static final short TEXT_NODE                   = 3;
  public static final short CDATA_SECTION_NODE          = 4;
  public static final short ENTITY_REFERENCE_NODE       = 5;
  public static final short ENTITY_NODE                 = 6;
  public static final short PROCESSING_INSTRUCTION_NODE = 7;
  public static final short COMMENT_NODE                = 8;
  public static final short DOCUMENT_NODE               = 9;
  public static final short DOCUMENT_TYPE_NODE          = 10;
  public static final short DOCUMENT_FRAGMENT_NODE      = 11;
  public static final short NOTATION_NODE               = 12;

  public String       getNodeName();
  public String       getNodeValue() throws DOMException;
  public void         setNodeValue(String nodeValue) throws DOMException;
  public short        getNodeType();
  public Node         getParentNode();
  public NodeList     getChildNodes();
  public Node         getFirstChild();
  public Node         getLastChild();
  public Node         getPreviousSibling();
  public Node         getNextSibling();
  public NamedNodeMap getAttributes();
  public Document     getOwnerDocument();
  public Node         insertBefore(Node newChild, Node refChild) throws DOMException;
  public Node         replaceChild(Node newChild, Node oldChild) throws DOMException;
  public Node         removeChild(Node oldChild) throws DOMException;
  public Node         appendChild(Node newChild) throws DOMException;
  public boolean      hasChildNodes();
  public Node         cloneNode(boolean deep);
  public void         normalize();
  public boolean      supports(String feature, String version);
  public String       getNamespaceURI();
  public String       getPrefix();
  public void         setPrefix(String prefix) throws DOMException;
  public String       getLocalName();

}

The NodeList Interface

package org.w3c.dom;

public interface NodeList {
  public Node item(int index);
  public int  getLength();
}

Now we're really ready to read a document

Node Reporter

import javax.xml.parsers.*;
import org.w3c.dom.*;
import org.xml.sax.*;
import java.io.*;

public class NodeReporter {

  public static void main(String[] args) {

    try {
      DocumentBuilderFactory builderFactory
       = DocumentBuilderFactory.newInstance();
      DocumentBuilder parser
       = builderFactory.newDocumentBuilder();
      NodeReporter iterator = new NodeReporter();

      for (int i = 0; i < args.length; i++) {
        try {
          // Read the entire document into memory
          Document doc = parser.parse(args[i]);
          iterator.followNode(doc);
        }
        catch (SAXException ex) {
          System.err.println(args[i] + " is not well-formed.");
        }
        catch (IOException ex) {
          System.err.println(ex);
        }
      }
    }
    catch (ParserConfigurationException ex) {
      System.err.println("You need to install a JAXP aware parser.");
    }

  } // end main

  // note use of recursion
  public void followNode(Node node) {

    processNode(node);
    if (node.hasChildNodes()) {
      NodeList children = node.getChildNodes();
      for (int i = 0; i < children.getLength(); i++) {
        followNode(children.item(i));
      }
    }

  }

  public void processNode(Node node) {
    String name = node.getNodeName();
    String type = getTypeName(node.getNodeType());
    System.out.println("Type " + type + ": " + name);
  }

  public static String getTypeName(int type) {

    switch (type) {
      case Node.ELEMENT_NODE:
        return "Element";
      case Node.ATTRIBUTE_NODE:
        return "Attribute";
      case Node.TEXT_NODE:
        return "Text";
      case Node.CDATA_SECTION_NODE:
        return "CDATA Section";
      case Node.ENTITY_REFERENCE_NODE:
        return "Entity Reference";
      case Node.ENTITY_NODE:
        return "Entity";
      case Node.PROCESSING_INSTRUCTION_NODE:
        return "Processing Instruction";
      case Node.COMMENT_NODE :
        return "Comment";
      case Node.DOCUMENT_NODE:
        return "Document";
      case Node.DOCUMENT_TYPE_NODE:
        return "Document Type Declaration";
      case Node.DOCUMENT_FRAGMENT_NODE:
        return "Document Fragment";
      case Node.NOTATION_NODE:
        return "Notation";
      default:
        return "Unknown Type";
    }
  }
}

Node Reporter Output

% java NodeReporter hotcop.xml
Type Document: #document
Type Processing Instruction: xml-stylesheet
Type Document Type Declaration: SONG
Type Element: SONG
Type Text: #text
Type Element: TITLE
Type Text: #text
Type Text: #text
Type Element: PHOTO
Type Text: #text
Type Element: COMPOSER
Type Text: #text
Type Text: #text
Type Element: COMPOSER
Type Text: #text
Type Text: #text
Type Element: COMPOSER
Type Text: #text
Type Text: #text
Type Element: PRODUCER
Type Text: #text
Type Text: #text
Type Comment: #comment
Type Text: #text
Type Element: PUBLISHER
Type Text: #text
Type Text: #text
Type Element: LENGTH
Type Text: #text
Type Text: #text
Type Element: YEAR
Type Text: #text
Type Text: #text
Type Element: ARTIST
Type Text: #text
Type Text: #text
Type Comment: #comment

Attributes are missing from this output. They are not nodes. They are properties of nodes.

Node Values as returned by getNodeValue()

The Document Node

• The root node representing the entire document; not the same as the root element

• Contains:

  • one element node

  • zero or more processing instruction nodes

  • zero or more comment nodes

  • zero or one document type nodes

The Document Interface

package org.w3c.dom;

  public interface Document extends Node {

    public DocumentType      getDoctype();
    public DOMImplementation getImplementation();
    public Element           getDocumentElement();

    public NodeList        getElementsByTagName(String tagname);
    public NodeList        getElementsByTagNameNS(String namespaceURI, String localName);
    public Element         getElementById(String elementId);

    // Factory methods
    public Element           createElement(String tagName) throws DOMException;
    public Element           createElementNS(String namespaceURI, String qualifiedName) throws DOMException;
    public DocumentFragment  createDocumentFragment();
    public Text              createTextNode(String data);
    public Comment           createComment(String data);
    public CDATASection      createCDATASection(String data) throws DOMException;
    public ProcessingInstruction createProcessingInstruction(String target, String data)
     throws DOMException;
    public Attr            createAttribute(String name) throws DOMException;
    public Attr            createAttributeNS(String namespaceURI, String qualifiedName) throws DOMException;
    public EntityReference createEntityReference(String name) throws DOMException;

    public Node            importNode(Node importedNode, boolean deep) throws DOMException;

}

A Sample Application

• UserLand's RSS based list of Web logs at http://static.userland.com/weblogMonitor/logs.xml:

  <?xml version="1.0"?>
  <!-- <!DOCTYPE foo SYSTEM "http://msdn.microsoft.com/xml/general/htmlentities.dtd"> -->
  <weblogs>
    <log>
      <name>MozillaZine</name>
      <url>http://www.mozillazine.org</url>
      <changesUrl>http://www.mozillazine.org/contents.rdf</changesUrl>
      <ownerName>Jason Kersey</ownerName>
      <ownerEmail>kerz@en.com</ownerEmail>
      <description>THE source for news on the Mozilla Organization.  DevChats, Reviews, Chats, Builds, Demos, Screenshots, and more.</description>
      <imageUrl></imageUrl>
      <adImageUrl>http://static.userland.com/weblogMonitor/ads/kerz@en.com.gif</adImageUrl>
      </log>
    <log>
      <name>SalonHerringWiredFool</name>
      <url>http://www.salonherringwiredfool.com/</url>
      <ownerName>Some Random Herring</ownerName>
      <ownerEmail>salonfool@wiredherring.com</ownerEmail>
      <description></description>
      </log>
    <log>
      <name>Scripting News</name>
      <url>http://www.scripting.com/</url>
      <ownerName>Dave Winer</ownerName>
      <ownerEmail>dave@userland.com</ownerEmail>
      <description>News and commentary from the cross-platform scripting community.</description>
      <imageUrl>http://www.scripting.com/gifs/tinyScriptingNews.gif</imageUrl>
      <adImageUrl>http://static.userland.com/weblogMonitor/ads/dave@userland.com.gif</adImageUrl>
      </log>
    <log>
      <name>SlashDot.Org</name>
      <url>http://www.slashdot.org/</url>
      <ownerName>Simply a friend</ownerName>
      <ownerEmail>afriendofweblogs@weblogs.com</ownerEmail>
      <description>News for Nerds, Stuff that Matters.</description>
      </log>
    </weblogs>


DOM Design

• We can easily find out how many URLs there will be when we finish parsing, since they're all in memory.

• Single threaded by nature; no benefit to multiple threads since no data will be available until the entire document has been read and parsed.

• The character data of each url element needs to be read. Everything else can be ignored.

• The getElementsByTagName() method in Document gives us a quick list of all the url elements.

• The XML parsing is so straight-forward it can be done inside one method. No extra class is required.

Weblogs with DOM

import org.w3c.dom.*;
import org.xml.sax.SAXException;
import java.io.IOException;
import java.util.*;
import java.net.*;


public class WeblogsDOM {

  public static String DEFAULT_URL
   = "http://static.userland.com/weblogMonitor/logs.xml";

  public static List listChannels() throws DOMException {
    return listChannels(DEFAULT_URL);
  }

  public static List listChannels(String uri) throws DOMException {

    if (uri == null) {
      throw new NullPointerException("URL must be non-null");
    }

    org.apache.xerces.parsers.DOMParser parser
     = new org.apache.xerces.parsers.DOMParser();

    Vector urls = null;

    try {
      // Read the entire document into memory
      parser.parse(uri);
      Document doc = parser.getDocument();
      NodeList logs = doc.getElementsByTagName("url");

      urls = new Vector(logs.getLength());

      for (int i = 0; i < logs.getLength(); i++) {
        try {
          Node element = logs.item(i);
          Node text = element.getFirstChild();
          String content = text.getNodeValue();
          URL u = new URL(content);
          urls.addElement(u);
        }
        catch (MalformedURLException e) {
          // bad input data from one third party; just ignore it
        }
      }
    }
    catch (SAXException e) {
      System.err.println(e);
    }
    catch (IOException e) {
      System.err.println(e);
    }

    return urls;

  }

  public static void main(String[] args) {

    try {
      List urls;
      if (args.length > 0) {
        try {
          URL url = new URL(args[0]);
          urls = listChannels(args[0]);
        }
        catch (MalformedURLException e) {
          System.err.println("Usage: java WeblogsDOM url");
          return;
        }
      }
      else {
        urls = listChannels();
      }
      Iterator iterator = urls.iterator();
      while (iterator.hasNext()) {
        System.out.println(iterator.next());
      }
    }
    catch (/* Unexpected */ Exception e) {
      e.printStackTrace();
    }

  } // end main

}

Weblogs Output

% java WeblogsDOM
http://2020Hindsight.editthispage.com/
http://www.sff.net/people/mitchw/weblog/weblog.htp
http://nate.weblogs.com/
http://plugins.launchpoint.net
http://404.psistorm.net
http://home.att.net/~geek9000
http://daubnet.tzo.com/weblog
several hundred more...

Element Nodes

• Represents a complete element including its start-tag, end-tag, and content

• Contains:

  • Element nodes

  • ProcessingInstruction nodes

  • Comment nodes

  • Text nodes

  • CDATASection nodes

  • EntityReference nodes

The Element Interface

package org.w3c.dom;

public interface Element extends Node {

  public String   getTagName();

  public NodeList getElementsByTagName(String name);
  public NodeList getElementsByTagNameNS(String namespaceURI,
   String localName);

  public String   getAttribute(String name);
  public String   getAttributeNS(String namespaceURI,
   String localName);
  public void     setAttribute(String name, String value)
   throws DOMException;
  public void     setAttributeNS(String namespaceURI,
   String qualifiedName, String value) throws DOMException;
  public void     removeAttribute(String name) throws DOMException;
  public void     removeAttributeNS(String namespaceURI,
   String localName) throws DOMException;
  public Attr     getAttributeNode(String name);
  public Attr     getAttributeNodeNS(String namespaceURI, String localName);
  public Attr     setAttributeNode(Attr newAttr) throws DOMException;
  public Attr     setAttributeNodeNS(Attr newAttr) throws DOMException;
  public Attr     removeAttributeNode(Attr oldAttr) throws DOMException;

}

IDTagger

import org.apache.xerces.parsers.DOMParser;
import org.w3c.dom.*;
import org.xml.sax.*;
import java.io.IOException;
import org.apache.xml.serialize.*;

public class IDTagger {

  int id = 1;

  public void processNode(Node node) {

    if (node.getNodeType() == Node.ELEMENT_NODE) {

      Element element = (Element) node;
      String currentID = element.getAttribute("ID");
      if (currentID == null || currentID.equals("")) {
        element.setAttribute("ID", "_" + id);
        id = id + 1;
      }
    }

  }

  // note use of recursion
  public void followNode(Node node) {

    processNode(node);
    if (node.hasChildNodes()) {
      NodeList children = node.getChildNodes();
      for (int i = 0; i < children.getLength(); i++) {
        followNode(children.item(i));
      }
    }

  }

  public static void main(String[] args) {

    DOMParser parser  = new DOMParser();
    IDTagger iterator = new IDTagger();

    for (int i = 0; i < args.length; i++) {
      try {
        // Read the entire document into memory
        parser.parse(args[i]);

        Document document = parser.getDocument();
        iterator.followNode(document);

        // now we serialize the document...
        OutputFormat format = new OutputFormat(document);
        XMLSerializer serializer
         = new XMLSerializer(System.out, format);
        serializer.serialize(document);

      }
      catch (SAXException ex) {
        System.err.println(ex);
      }
      catch (IOException ex) {
        System.err.println(ex);
      }

    }
  } // end main
}

Output from IDTagger

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE SONG SYSTEM "song.dtd">
<?xml-stylesheet type="text/css" href="song.css"?><!-- This should be a four digit year like "1999",
     not a two-digit year like "99" --><SONG xmlns="http://www.cafeconleche.org/namespace/song" ID="_1" xmlns:xlink="http://www.w3.org/1999/xlink">   <TITLE ID="_2">Hot Cop</TITLE>   <PHOTO ALT="Victor Willis in Cop Outfit" HEIGHT="200" ID="_3" WIDTH="100" xmlns:xlink="http://www.w3.org/1999/xlink" xlink:href="hotcop.jpg" xlink:show="onLoad" xlink:type="simple"/>   <COMPOSER ID="_4">Jacques Morali</COMPOSER>   <COMPOSER ID="_5">Henri Belolo</COMPOSER>   <COMPOSER ID="_6">Victor Willis</COMPOSER>   <PRODUCER ID="_7">Jacques Morali</PRODUCER>   <!-- The publisher is actually Polygram but I needed
       an example of a general entity reference. -->   <PUBLISHER ID="_8" xmlns:xlink="http://www.w3.org/1999/xlink" xlink:href="http://www.amrecords.com/" xlink:type="simple">     A &amp; M Records   </PUBLISHER>   <LENGTH ID="_9">6:20</LENGTH>   <YEAR ID="_10">1978</YEAR>   <ARTIST ID="_11">Village People</ARTIST> </SONG><!-- You can tell what album I was
     listening to when I wrote this example -->

Namespaces in DOM

Writing XML Documents with DOM

• DOM is for both input and output

• New documents are created with a parser-specific API or JAXP

• A serializer + output format converts the DOM to a byte stream

The DOMImplementation interface

• Creates new Document objects

• Creates new DocType objects

• Tests features supported by this implementation

package org.w3c.dom;

public interface DOMImplementation {

  public boolean hasFeature(String feature, String version)

  public DocumentType createDocumentType(
   String qualifiedName,
   String publicID, String systemID,
   String internalSubset)

  public Document createDocument(String namespaceURI,
   String qualifiedName, DocumentType doctype)
   throws DOMException

}

org.apache.xerces.dom.DOMImplementationImpl

• The Xerces-specific class that implements DOMImplementation

package org.apache.xerces.dom;

public class DOMImplementationImpl implements DOMImplementation {

  public boolean hasFeature(String feature, String version)

  public static DOMImplementation getDOMImplementation()

  public DocumentType createDocumentType(String qualifiedName,
   String publicID, String systemID, String internalSubset)

  public Document createDocument(String namespaceURI,
   String qualifiedName, DocumentType doctype)
   throws DOMException

}

A Xerces/DOM program that writes Fibonacci numbers into an XML document

import java.math.BigInteger;
import java.io.*;
import org.w3c.dom.*;
import org.apache.xerces.dom.*;

public class FibonacciDOM {

  public static void main(String[] args) {

    try {

      DOMImplementation impl
       = DOMImplementationImpl.getDOMImplementation();

      Document fibonacci
       = impl.createDocument(null, "Fibonacci_Numbers", null);

      BigInteger low  = BigInteger.ONE;
      BigInteger high = BigInteger.ONE;

      Element root = fibonacci.getDocumentElement();

      for (int i = 1; i <= 25; i++) {
        Element number = fibonacci.createElement("fibonacci");
        number.setAttribute("index", Integer.toString(i));
        Text text = fibonacci.createTextNode(low.toString());
        number.appendChild(text);
        root.appendChild(number);

        BigInteger temp = high;
        high = high.add(low);
        low = temp;
      }

      // Now the document has been created and exists in memory
    }
    catch (DOMException ex) {
      ex.printStackTrace();
    }

  }

}

A JAXP/DOM program that writes Fibonacci numbers into an XML document

import java.math.BigInteger;
import java.io.*;
import org.w3c.dom.*;
import javax.xml.parsers.*;

public class FibonacciJAXP {

  public static void main(String[] args) {

    try {
      DocumentBuilderFactory factory
       = DocumentBuilderFactory.newInstance();
      DocumentBuilder builder = factory.newDocumentBuilder();
      DOMImplementation impl = builder.getDOMImplementation();

      Document fibonacci
       = impl.createDocument(null, "Fibonacci_Numbers", null);

      BigInteger low  = BigInteger.ONE;
      BigInteger high = BigInteger.ONE;

      Element root = fibonacci.getDocumentElement();

      for (int i = 1; i <= 25; i++) {
        Element number = fibonacci.createElement("fibonacci");
        number.setAttribute("index", Integer.toString(i));
        Text text = fibonacci.createTextNode(low.toString());
        number.appendChild(text);
        root.appendChild(number);

        BigInteger temp = high;
        high = high.add(low);
        low = temp;
      }

      // Now the document has been created and exists in memory
    }
    catch (DOMException ex) {
      ex.printStackTrace();
    }
    catch (ParserConfigurationException ex) {
      System.err.println("You need to install a JAXP aware DOM implementation.");
    }
  }
}

Serialization

• The process of taking an in-memory DOM tree and converting it to a stream of characters that can be written onto an output stream

• Not a standard part of DOM Level 2

• The org.apache.xml.serialize package:

  • public interface DOMSerializer

  • public interface Serializer

  • public abstract class BaseMarkupSerializer extends Object implements DocumentHandler, org.xml.sax.misc.LexicalHandler, DTDHandler, org.xml.sax.misc.DeclHandler, DOMSerializer, Serializer

  • public class HTMLSerializer extends BaseMarkupSerializer

  • public final class TextSerializer extends BaseMarkupSerializer

  • public final class XHTMLSerializer extends HTMLSerializer

  • public final class XMLSerializer extends BaseMarkupSerializer

A DOM program that writes Fibonacci numbers onto System.out

import java.math.BigInteger;
import java.io.*;
import org.w3c.dom.*;
import org.apache.xerces.dom.*;
import org.apache.xml.serialize.*;

public class FibonacciDOMSerializer {

  public static void main(String[] args) {

    try {

      DOMImplementation impl
       = DOMImplementationImpl.getDOMImplementation();

      Document fibonacci
       = impl.createDocument(null, "Fibonacci_Numbers", null);

      BigInteger low  = BigInteger.ONE;
      BigInteger high = BigInteger.ONE;

      Element root = fibonacci.getDocumentElement();

      for (int i = 1; i <= 25; i++) {
        Element number = fibonacci.createElement("fibonacci");
        number.setAttribute("index", Integer.toString(i));
        Text text = fibonacci.createTextNode(low.toString());
        number.appendChild(text);
        root.appendChild(number);

        BigInteger temp = high;
        high = high.add(low);
        low = temp;
      }

      try {
        // Now that the document is created we need to *serialize* it
        OutputFormat format = new OutputFormat(fibonacci);
        XMLSerializer serializer
         = new XMLSerializer(System.out, format);
        serializer.serialize(fibonacci);
      }
      catch (IOException ex) {
        System.err.println(ex);
      }
    }
    catch (DOMException ex) {
      ex.printStackTrace();
    }

  }

}

fibonacci.xml

<?xml version="1.0" encoding="UTF-8"?>
<Fibonacci_Numbers><fibonacci index="0">0</fibonacci><fibonacci index="1">1</fibonacci><fibonacci index="2">1</fibonacci><fibonacci index="3">2</fibonacci><fibonacci index="4">3</fibonacci><fibonacci index="5">5</fibonacci><fibonacci index="6">8</fibonacci><fibonacci index="7">13</fibonacci><fibonacci index="8">21</fibonacci><fibonacci index="9">34</fibonacci><fibonacci index="10">55</fibonacci><fibonacci index="11">89</fibonacci><fibonacci index="12">144</fibonacci><fibonacci index="13">233</fibonacci><fibonacci index="14">377</fibonacci><fibonacci index="15">610</fibonacci><fibonacci index="16">987</fibonacci><fibonacci index="17">1597</fibonacci><fibonacci index="18">2584</fibonacci><fibonacci index="19">4181</fibonacci><fibonacci index="20">6765</fibonacci><fibonacci index="21">10946</fibonacci><fibonacci index="22">17711</fibonacci><fibonacci index="23">28657</fibonacci><fibonacci index="24">46368</fibonacci><fibonacci index="25">75025</fibonacci></Fibonacci_Numbers>

OutputFormat

package org.apache.xml.serialize;

public class OutputFormat extends Object {

  public OutputFormat()
  public OutputFormat(String method,
   String encoding, boolean indenting)
  public OutputFormat(Document doc)
  public OutputFormat(Document doc,
   String encoding, boolean indenting)

  public String   getMethod()
  public void     setMethod(String method)
  public String   getVersion()
  public void     setVersion(String version)
  public int      getIndent()
  public boolean  getIndenting()
  public void     setIndent(int indent)
  public void     setIndenting(boolean on)
  public String   getEncoding()
  public void     setEncoding(String encoding)
  public String   getMediaType()
  public void     setMediaType(String mediaType)
  public void     setDoctype(String publicID, String systemID)
  public String   getDoctypePublic()
  public String   getDoctypeSystem()
  public boolean  getOmitXMLDeclaration()
  public void     setOmitXMLDeclaration(boolean omit)
  public boolean  getStandalone()
  public void     setStandalone(boolean standalone)
  public String[] getCDataElements()
  public boolean  isCDataElement(String tagName)
  public void     setCDataElements(String[] cdataElements)
  public String[] getNonEscapingElements()
  public boolean  isNonEscapingElement(String tagName)
  public void     setNonEscapingElements(String[] nonEscapingElements)
  public String   getLineSeparator()
  public void     setLineSeparator(String lineSeparator)
  public boolean  getPreserveSpace()
  public void     setPreserveSpace(boolean preserve)
  public int      getLineWidth()
  public void     setLineWidth(int lineWidth)
  public char     getLastPrintable()

  public static String whichMethod(Document doc)
  public static String whichDoctypePublic(Document doc)
  public static String whichDoctypeSystem(Document doc)
  public static String whichMediaType(String method)

}

Better formatted output

• Latin-1 encoding

• Indentation

• Word wrapping

• Document type declaration

 try {
  // Now that the document is created we need to *serialize* it
  OutputFormat format = new OutputFormat(fibonacci, "8859_1", true);
  format.setLineSeparator("\r\n");
  format.setLineWidth(72);
  format.setDoctype(null, "fibonacci.dtd");
  XMLSerializer serializer = new XMLSerializer(System.out, format);
  serializer.serialize(root);
}
catch (IOException ex) {
  System.err.println(ex);
}

• Question: Why won't this let us add an xml-stylesheet directive?

formatted_fibonacci.xml

<?xml version="1.0" encoding="8859_1"?>
<!DOCTYPE Fibonacci_Numbers SYSTEM "fibonacci.dtd">
<Fibonacci_Numbers>
    <fibonacci index="0">0</fibonacci>
    <fibonacci index="1">1</fibonacci>
    <fibonacci index="2">1</fibonacci>
    <fibonacci index="3">2</fibonacci>
    <fibonacci index="4">3</fibonacci>
    <fibonacci index="5">5</fibonacci>
    <fibonacci index="6">8</fibonacci>
    <fibonacci index="7">13</fibonacci>
    <fibonacci index="8">21</fibonacci>
    <fibonacci index="9">34</fibonacci>
    <fibonacci index="10">55</fibonacci>
    <fibonacci index="11">89</fibonacci>
    <fibonacci index="12">144</fibonacci>
    <fibonacci index="13">233</fibonacci>
    <fibonacci index="14">377</fibonacci>
    <fibonacci index="15">610</fibonacci>
    <fibonacci index="16">987</fibonacci>
    <fibonacci index="17">1597</fibonacci>
    <fibonacci index="18">2584</fibonacci>
    <fibonacci index="19">4181</fibonacci>
    <fibonacci index="20">6765</fibonacci>
    <fibonacci index="21">10946</fibonacci>
    <fibonacci index="22">17711</fibonacci>
    <fibonacci index="23">28657</fibonacci>
    <fibonacci index="24">46368</fibonacci>
    <fibonacci index="25">75025</fibonacci>
</Fibonacci_Numbers>

The point is this:

• Using the DOM to write documents automatically maintains well-formedness constraints

• Validity is not automatically maintained.

To Learn More about DOM

• Processing XML with Java

  • Elliotte Rusty Harold

  • Addison Wesley, 2002

  • Chapters 9-13:

    • Chapter 9, The Document Object Model: http://www.cafeconleche.org/books/xmljava/chapters/ch09.html

    • Chapter 10, Creating New XML Documents with DOM: http://www.cafeconleche.org/books/xmljava/chapters/ch10.html

    • Chapter 11, The Document Object Model Core: http://www.cafeconleche.org/books/xmljava/chapters/ch11.html

    • Chapter 12, The DOM Traversal Module: http://www.cafeconleche.org/books/xmljava/chapters/ch12.html

    • Chapter 13, Output from DOM: http://www.cafeconleche.org/books/xmljava/chapters/ch13.html




• DOM Level 2 Core Specification: http://www.w3.org/TR/DOM-Level-2-Core/

• DOM Level 2 Traversal and Range Specification: http://www.w3.org/TR/DOM-Level-2-Traversal-Range/

To Learn More About All things XML

• This presentation: http://www.cafeconleche.org/slides/sd2007west/xmlfundamentals

• XML in a Nutshell, third edition

  • Elliotte Rusty Harold and W. Scott Means

  • O'Reilly & Associates, 2004

  • ISBN 0-596-00764-7

  • http://www.cafeconleche.org/books/xian3/




• XML 1.1 Bible

  • Elliotte Rusty Harold

  • Wiley, 2004

  • ISBN 0-7645-4986-3

  • http://www.cafeconleche.org/books/bible3/
