Chapter 19 of the XML Bible, Second Edition : XLinks

In This Chapter

Linking in XML is divided into two parts, XLink and XPointers. XLink, the XML Linking Language, defines how one document links to another document. XPointer, the XML Pointer Language, defines how individual parts of a document are addressed. An XLink points to a URI (in practice, a URL) that specifies a particular resource. This URI may include an XPointer part that more specifically identifies the desired part or section of the targeted resource or document. This chapter explores XLinks. The next chapter explores XPointers.

XLinks versus HTML Links

The Web conquered the more established gopher protocol for one main reason: HTML made it possible to embed hypertext links in documents. These links could insert images or let the user to jump from inside one document to another document or another part of the same document. To the extent that XML is rendered into HTML for viewing, the same syntax that HTML uses for linking can be used in XML documents. Alternate syntaxes can be converted into HTML syntax using XSLT.

Cross-Reference

XSLT, including several examples of converting XML markup to HTML links, is discussed in Chapter 17.

However, HTML linking has limits. For one thing, URLs are limited to pointing at a single document. More granularity than that, such as linking to the third sentence of the seventeenth paragraph in a document, requires you to manually insert named anchors in the targeted file. It can't be done without write access to the document to which you're linking.

Furthermore, HTML links don't maintain any sense of history or relations between documents. Although browsers may track the path you've followed through a series of documents, such tracking isn't very reliable. From inside the HTML, there's no way to know from where a reader came. Links are purely one-way. The linking document knows to whom it's linking, but the linked document doesn’t know who's linking to it.

XLink is a proposal for more powerful links between documents designed especially for use with XML documents. XLink achieves everything possible with HTML's URL-based hyperlinks and anchors. Beyond this, however, it supports multidirectional links where the links run in more than one direction. Any element can become a link, not just the A element. Links do not even have to be stored in the same file as the documents they connect. These features make XLinks more suitable not only for new uses, but for things that can be done only with considerable effort in HTML, such as cross-references, footnotes, end notes, interlinked data, and more.

Caution

I should warn you that at the time of this writing (April 2001), XLink is still undergoing significant development and modification. Although it is beginning to stabilize, some bits and pieces likely will change by the time you're reading this. This chapter is based on the December 20, 2000 Proposed Recommendation of XLink. I'm hopeful that this won't be too far removed from the final specification. Nonetheless, if you do encounter inconsistencies, you should compare the examples in this book against the most current specification at http://www.w3.org/TR/xlink/.

To make matters worse, only Mozilla and Netscape 6.0 have any support for XLinks, and that support is incomplete. Internet Explorer 5.5 and Opera 5.0 and earlier have absolutely no support for any kind of XLink. There are no general-purpose applications that support arbitrary XLinks. That's because XLinks have a much broader base of applicability than HTML links. XLinks are not just used for hypertext connections and embedding images in documents. They can be used by any custom application that needs to establish connections between documents and parts of documents, for any reason. Thus, even when XLinks are fully implemented in browsers they may not always be blue underlined text that you click to jump to another page. They can be that, but they can also be both more and less, depending on your needs.

Linking Elements

In HTML, a link is defined with the <A> tag. However, just as XML is more flexible with tags that describe elements, it is more flexible with tags that refer to external resources. In XML, any element can be a link or part of a link. XLink elements are identified by an xlink:type attribute with one of these seven values:

The xlink prefix must be bound to the http://www.w3.org/1999/xlink namespace URI. As usual, the prefix can change as long as the URI remains the same. The xlink prefix is customary and should be used unless you've got a really good reason to change it. In this chapter, I assume that the prefix xlink has been bound to the http://www.w3.org/1999/xlink URI.

XLinks elements whose xlink:type attribute has the value simple or extended are called linking elements. For example, these are three linking elements:

<COMPOSER xmlns:xlink="http://www.w3.org/1999/xlink"
          xlink:type="simple"
          xlink:href="http://www.users.interport.net/~beand/">
    Beth Anderson
</COMPOSER>
<FOOTNOTE xmlns:xlink="http://www.w3.org/1999/xlink"
          xlink:type="simple"
          xlink:href="footnote7.xml">7</FOOTNOTE>
<IMAGE xmlns:xlink="http://www.w3.org/1999/xlink"
       xlink:type="simple" xlink:href="logo.gif"
       xlink:actuate="onLoad" xlink:show="embed"/>

Notice that the elements have semantic names that describe the content they contain rather than how the elements behave. The information that these elements are links is included in the attributes, not the element names. Attributes define the linking behavior.

These three examples are simple XLinks. Simple XLinks are similar to standard HTML links and are the only kind of link supported by application software, so I'll begin with them. Later, we'll talk about the more complex (and more powerful) extended links.

In the COMPOSER example above, the xlink:href attribute defines the target of the link. The value of this attribute is the absolute URL http://www.users.interport.net/~beand/. This linking element describes a connection from the COMPOSER element in the current document with the content "Beth Anderson" to the remote document at http://www.users.interport.net/~beand/. If you were to include this element in an XML document and load that document into an XLink-aware Web browser such as Mozilla or Netscape 6, then the browser would underline the link, color it blue, and let the user click on it to jump to the page http://www.users.interport.net/~beand/.

However, you can also interpret this link more abstractly, as simply defining a one-way connection from one resource, the COMPOSER element, to another resource, the Web page at http://www.users.interport.net/~beand/. Figure 19-1 diagrams this connection. This connection does not truly imply any particular semantics or behavior. It's up to the application reading the document to decide what this abstract link means to it.

Image: 19\picture1.jpg

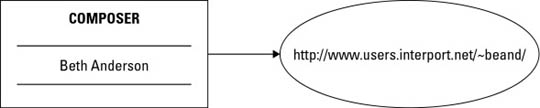

Figure 19-1: A link from the COMPOSER element to http://www.users.interport.net/~beand/

In the FOOTNOTE example, the link target attribute's name is xlink:href. Its value is the relative URL footnote7.xml. This describes a connection from the FOOTNOTE element in the current document with the content "7" to the document named footnote7.xml on the same server in the same directory as the document in which this link appears.

In the third example above, the value of the xlink:href attribute is the relative URL logo.gif. Again, the protocol, host, and directory of this document are taken from the protocol, host, and directory of the document in which this link appears. However, this element requests slightly different behavior. Instead of waiting for the user to activate the link, the xlink:actuate attribute asks that the link be activated automatically as soon as the document is loaded. The xlink:show attribute requests that the result be embedded in the current document instead of replacing the current document.

Declaring XLink attributes in document type definitions

If the document has a DTD, these attributes should be declared like any other. For example, declarations of the FOOTNOTE, COMPOSER, and IMAGE elements might look like this:

<!ELEMENT FOOTNOTE (#PCDATA)>
<!ATTLIST FOOTNOTE
    xmlns:xlink CDATA  #FIXED "http://www.w3.org/1999/xlink"
    xlink:type  CDATA  #FIXED "simple"
    xlink:href  CDATA  #REQUIRED
>
<!ELEMENT COMPOSER (#PCDATA)>
<!ATTLIST COMPOSER
    xmlns:xlink CDATA  #FIXED "http://www.w3.org/1999/xlink"
    xlink:type  CDATA  #FIXED "simple"
    xlink:href  CDATA  #REQUIRED
>
<!ELEMENT IMAGE EMPTY>
<!ATTLIST IMAGE
    xmlns:xlink   CDATA  #FIXED "http://www.w3.org/1999/xlink"
    xlink:type    CDATA  #FIXED "simple"
    xlink:href    CDATA  #REQUIRED
    xlink:show    CDATA  #FIXED "onLoad"
    xlink:actuate CDATA  #FIXED "embed"
>

With these declarations, the xlink:type, xmlns:xlink, xlink:show, and xlink:actuate attributes have fixed values. Therefore they do not need to be included in the instances of the elements, which you may now write more compactly like this:

<FOOTNOTE xlink:href="footnote7.xml">7</FOOTNOTE>
<COMPOSER xlink:href="http://www.users.interport.net/~beand/">
  Beth Anderson
</COMPOSER>
<IMAGE xlink:href="logo.gif"/>

Making an element a link doesn't impose any restriction on other attributes or contents of the element. An XLink element may contain arbitrary children or other attributes, always subject to the restrictions of the DTD, of course. For example, a more realistic IMAGE element would look like this:

<IMAGE ALT="Cafe con Leche Logo of a coffee cup"
       WIDTH="89" HEIGHT="67"
       xmlns:xlink="http://www.w3.org/1999/xlink"
       xlink:type="simple" xlink:href="logo.gif"
       xlink:actuate="onLoad" xlink:show="embed"/>

Half of the attributes don't have anything to do with linking. The declaration in the DTD would then look like this:

<!ELEMENT IMAGE EMPTY>
<!ATTLIST IMAGE
    xmlns:xlink   CDATA  #FIXED "http://www.w3.org/1999/xlink"
    xlink:type    CDATA  #FIXED "simple"
    xlink:href    CDATA  #REQUIRED
    xlink:show    CDATA  #FIXED "onLoad"
    xlink:actuate CDATA  #FIXED "embed"
    ALT           CDATA  #REQUIRED
    ALIGN         CDATA  #IMPLIED
    HEIGHT        CDATA  #REQUIRED
    WIDTH         CDATA  #REQUIRED
>

In fact, a linking element may even have children that are themselves linking elements! That is, a linking element may contain another linking element or elements. This doesn't have any special meaning. As far as links go, each linking element is treated in isolation.

Descriptions of the Remote Resource

A linking element may have optional xlink:role and xlink:title attributes that describe the remote resource; that is, the document or other resource to which the link points. The title contains plain text that describes the resource. The role contains a URI pointing to a document that more fully describes the resource. For example, the title might describe what a page does and the role might point to a help page for the page:

<SEARCH xlink:type="simple"
 xlink:href="http://www.google.com/advanced_search"
 xlink:title="Search with Google"
 xlink:role="http://www.google.com/help.html">
   Search the Web with Google
</SEARCH>

Both the role and title describe the remote resource, not the local element. The remote resource in the above example is the document at http://www.google.com/advanced_search. It's not uncommon, though it's not required, for the xlink:title to be the same as the contents of the TITLE element of the page to which you are linking.

XLink does not define the user interface by which link roles and titles are presented to users. For instance, Mozilla shows the user the title of the link in a tool tip when the cursor is hovering over the link, and does nothing with the role. A different application might choose to put the title in the status bar of the browser window, or do both, or neither. How or whether any particular application makes use of the role and title is completely up to it.

As with all other attributes, the xlink:title and xlink:role attributes should be declared in the DTD for all the elements to which they belong. For example, this is a reasonable declaration for the above SEARCH element:

<!ELEMENT SEARCH (#PCDATA)>
<!ATTLIST SEARCH
    xmlns:xlink CDATA  #FIXED "http://www.w3.org/1999/xlink"
    xlink:type  CDATA  #FIXED "simple"
    xlink:href  CDATA  #REQUIRED
    xlink:title CDATA  #IMPLIED
    xlink:role  CDATA  #IMPLIED
>

Link Behavior

Linking elements can contain two more optional attributes that suggest to applications how the link behaves when activated. These are:

The xlink:show attribute suggests how the content should be displayed when the link is activated, for example, by opening a new window to hold the target content or by loading the target into the current window. The xlink:actuate attribute suggests when the link should be activated; for instance, as soon as the document is loaded or only after a specific user request. Behavior is application dependent, however, and applications are free to ignore the suggestions.

The xlink:show attribute

The xlink:show attribute has five possible values:

If the value of xlink:show is replace, then when the link is activated (generally by clicking on it, at least in GUI browsers), the target of the link replaces the current document in the same window. This is the default behavior of HTML links. For example:

<COMPOSER xlink:type="simple"
          xlink:show="replace"
          xlink:href="http://www.users.interport.net/~beand/">
    Beth Anderson
</COMPOSER>

If the value of xlink:show is new, activating the link opens a new window in which the targeted resource is displayed. This is similar to the behavior of HTML links when the target attribute is set to _blank. For example:

<WEBSITE xlink:type="simple"
         xlink:show="new"
         xlink:href="http://www.quackwatch.com/">
  Check this out, but don't leave our site completely!
</WEBSITE>

Caution

Readers do not expect a new window to open after clicking a link. They expect that when they click a link, the new page will load into the current window, unless they specifically ask that the link open in a new window.

Some Web sites are so self-important that they find it impossible to believe that any user would ever want to leave. Thus they "help" the readers by opening new windows. Most of the time this only serves to confuse and annoy. Don't change the behavior users expect without a very good reason. The thin hope that a reader might spend an additional two seconds on your site or view one more page and see one more ad is not a good enough reason.

If the value of xlink:show is embed, activating the link inserts the targeted resource into the existing document. Exactly what this means is application dependent. Mostly, it implies that the application should somehow render the linked content and display it as part of the finished document. This is how the IMG, APPLET, and OBJECT elements behave in HTML. For example, an element like this one might be used to indicate that a JPEG image should be embedded in the document:

<PHOTO xlink:type="simple"
       xlink:href="images/nypride.jpg"
       xlink:show="embed"
       ALT="Marchers on 5th Avenue, June 2000"/>

If the value of xlink:show is other, then the application is supposed to look for other markup in the document that explains what to do. Generally this would be used when a particular XML application used different, non-XLink elements or attributes to describe the link behavior. For example, many Web pages have a LINK element in their header that references a style sheet and looks similar to this:

<LINK REL="stylesheet" TYPE="text/css"
      HREF="http://www.w3.org/StyleSheets/TR/W3C-WD" />

This is a link, but what's at the end of the link does not replace the existing document; it does not embed itself into the existing document; it is not displayed in a new window. In XML documents, you might agree that this behavior was implied whenever a STYLESHEET element was encountered. Because this is not one of the three predetermined link behaviors, you'd set xlink:show to other.

<STYLESHEET xlink:show="other"
           xlink:href="http://www.w3.org/StyleSheets/TR/W3C-WD"
/>

Finally, you can set xlink:show to none to indicate that the document contains no information to help the application decide what, if anything, to do with the link. It's completely up to the application reading the document to make its own choices.

Regardless of what behavior xlink:show suggests, the browser or other application reading the document is free to do whatever it wants when the link is activated, including nothing at all. For instance, a browser with "Automatically load images" turned off might well choose to ignore xlink:show="embed".

Like all attributes in valid documents, the xlink:show attribute must be declared in a <!ATTLIST> declaration for the linking element. For example:

<!ELEMENT WEBSITE (#PCDATA)>
<!ATTLIST WEBSITE
    xmlns:xlink CDATA  #FIXED "http://www.w3.org/1999/xlink"
    xlink:type  CDATA  #FIXED "simple"
    xlink:href  CDATA  #REQUIRED
    xlink:show (new | replace | embed) #IMPLIED "replace"
>

This particular DTD fragment doesn't allow the xlink:show attribute to have the value other or none. That's OK, too. Not all linking elements necessarily support all possible values of xlink:show.

The xlink:actuate attribute

A linking element's xlink:actuate attribute has four possible values:

The value onRequest specifies that the link should be traversed only when and if the user requests it. This is the behavior of a normal HTML link. For example, this link jumps to the FatBrain bookstore when the user specifically requests that action:

<PURCHASE xlink:type="simple" xlink:actuate="onRequest"
          xlink:href="http://www.fatbrain.com/">
  Buy from FatBrain
</PURCHASE>

On the other hand, if the linking element's xlink:actuate attribute is set to onLoad, the link is traversed once the document containing the link is loaded. For example, you might set the actuate attribute to onLoad for an image or other piece of external content that's to be embedded in the linking document. This way the user doesn't have to click the link to follow it. The code might look like this:

<IMAGE xlink:type="simple" xlink:href="logo.gif"
       xlink:actuate="onLoad" xlink:show="embed"/>

If the linking element's xlink:actuate attribute value is other, then the application should look at other markup, not defined by XLink, to decide when to traverse the link. For instance, a browser might define a PRELOAD element as indicating that a document or image is not used on this page, but will likely soon be used. For example,

<PRELOAD xlink:type="simple"   xlink:href="logo.gif"
         xlink:actuate="other" xlink:show="none"/>

Therefore, if the browser has extra bandwidth available while the user is reading the page, it should load the document and cache it. Otherwise, it waits until the user actually actuates the link. Applications that don't recognize the PRELOAD element would simply ignore it. (I should warn you that this is a purely hypothetical example that is not yet and probably never will be implemented by any actual browser.)

Finally, setting xlink:actuate to none leaves it completely up to the application to decide when or if to traverse the link.

Like all attributes in valid documents, the xlink:actuate attribute must be declared in the DTD in an <!ATTLIST> declaration for the linking elements in which it appears. For example:

<!ELEMENT IMAGE EMPTY>
<!ATTLIST IMAGE
    xmlns:xlink CDATA  #FIXED "http://www.w3.org/1999/xlink"
    xlink:type  CDATA  #FIXED "simple"
    xlink:href  CDATA  #REQUIRED
    xlink:show    (new | replace | embed) #IMPLIED "embed"
    xlink:actuate (onLoad)                #FIXED "onLoad"
>

This particular DTD fragment doesn't allow the xlink:actuate attribute to have the values onRequest, other, or none. That's OK, too. Not all linking elements necessarily support all possible values of xlink:actuate.

A Shortcut for the DTD

Because the attribute names and types are standardized, it's often convenient to make the attribute declarations a parameter entity reference and simply repeat that in the declaration of each linking element if there is more than one linking element in a document. For example:

<!ENTITY % link-attributes
"xlink:type    CDATA  #FIXED 'simple'
 xlink:role    CDATA  #IMPLIED
 xlink:title   CDATA  #IMPLIED
 xmlns:xlink   CDATA  #FIXED 'http://www.w3.org/1999/xlink'
 xlink:href    CDATA  #REQUIRED
 xlink:show    (new|replace|embed|other|none) #IMPLIED 'replace'
 xlink:actuate (onRequest|onLoad|other|none) #IMPLIED 'onRequest'
"
>
<!ELEMENT COMPOSER (#PCDATA)>
<!ATTLIST COMPOSER
    %link-attributes;
>
<!ELEMENT AUTHOR (#PCDATA)>
<!ATTLIST AUTHOR
    %link-attributes;
>
<!ELEMENT WEBSITE (#PCDATA)>
<!ATTLIST WEBSITE
    %link-attributes;
>

Extended Links

Simple links behave more or less like the standard links you're accustomed to from HTML. A simple link connects one element in the linking document to one target document. Furthermore, the link is one-way, from the source to the target.

Extended links, however, go substantially beyond HTML links to include multidirectional links between many documents and out-of-line links. An extended link consists of a set of resources and a set of the connections between them. The resources may be local (part of the extended link element) or remote (not part of the extended link element, and generally, though not necessarily, in another document). Each resource may be either a target or a source of a link or both. If a link does not contain any local resources, only remote resources, then it's called an out-of-line link.

In computer science terms, an extended link is a directed, labeled graph in which the resources are vertices and the links between resources are edges. Thought of abstractly like this, an extended link is really just an XML format for a directed graph. The tricky part comes in deciding exactly what any particular application is supposed to do with such a data structure. For now, I can only speculate about what applications might do with extended links and what sort of user interfaces they might provide.

An extended link is included in an XML document as an element of some arbitrary type such as COMPOSER or TEAM that has an xlink:type attribute with the value extended. As usual the xlink prefix is associated with the http://www.w3.org/1999/xlink namespace URI. For example,

<WEBSITE xmlns:xlink="http://www.w3.org/1999/xlink"
         xlink:type="extended">
 ...
</WEBSITE>

Extended Link Syntax

Extended links generally point to more than one target and from more than one source. Both sources and targets are called by the more generic word resource. In fact, whether a resource is a source or a target can change depending on which link is being followed and in which direction.

Resources are divided into remote resources and local resources. A local resource is actually contained inside the extended link element. It is the content of an element of arbitrary type that has an xlink:type attribute with the value resource.

A remote resource exists outside the extended link element, very possibly in another document. The extended link element contains locator child elements that point to the remote resource. These are elements with any name that have an xlink:type attribute with the value locator. Each locator element has an xlink:href attribute whose value is a URI locating the remote resource.

Caution

The terminology is unnecessarily confusing here. Both xlink:type="locator" and xlink:type="resource" elements locate resources. An xlink:type="locator" element locates a remote resource. An xlink:type="resource" element locates a local resource. Personally, I think xlink:type="local" and xlink:type="remote" would be better choices here, but xlink:type="resource" and xlink:type="locator" are what the standard has given us.

For example, suppose you're writing a page of links to Java sites. One of the sites you want to link to is Cafe au Lait at http://ibiblio.org/javafaq/. However, there are also three mirrors of that site in three other countries. Some people coming to your site will want to access the home site while others will want to go to one of the mirror sites. With HTML links or simple XLinks you have to write four different links, one for the home site and one for each mirror and let the user pick. However with an extended XLink you can provide one link that connects all four sites as well as the page you're linking from. The browser can choose the one closest to the user when the link is activated (though I feel compelled to reiterate here that browser support for this is strictly hypothetical). The four remote sites are identified by locator elements. The text that will be shown to the user on your page is identified by a resource element. Here's the XML:

<WEBSITE xmlns:xlink="http://www.w3.org/1999/xlink"
         xlink:type="extended">
  <NAME xlink:type="resource">Cafe au Lait</NAME>
  <HOMESITE xlink:type="locator"
            xlink:href="http://ibiblio.org/javafaq/"/>
  <MIRROR xlink:type="locator"
          xlink:href="http://sunsite.kth.se/javafaq"/>
  <MIRROR xlink:type="locator"
          xlink:href="http://sunsite.informatik.rwth-aachen.de/javafaq/"/>
  <MIRROR xlink:type="locator"
          xlink:href="http://sunsite.cnlab-switch.ch/javafaq/"/>
</WEBSITE>

This WEBSITE element describes an extended link with five resources:

Figure 19-2 shows the WEBSITE extended link element and five resources. The WEBSITE element contains one resource and refers to the other four by URLs. However, this just describes these resources. No connections are implied between them.

Image: 19\picture3.jpg

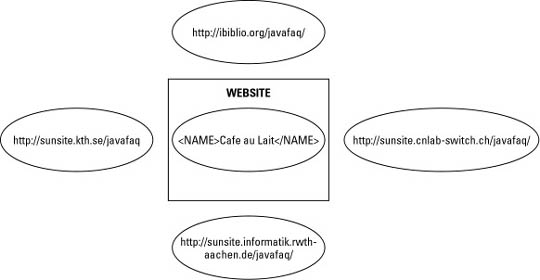

Figure 19-2: An extended link with one local and four remote resources

Both the extended link element itself and the individual locator children may have descriptive attributes such as xlink:role and xlink:title. The xlink:role and xlink:title attributes of the extended link element provide default roles and titles for each of the individual locator child elements. Individual resource and locator elements may override these defaults with xlink:role and xlink:title attributes of their own. Listing 19-1 demonstrates:

Listing 19-1: An extended link with one local and four remote resources

<WEBSITE xmlns:xlink="http://www.w3.org/1999/xlink"
         xlink:type="extended" xlink:title="Cafe au Lait">
  <NAME xlink:type="resource"
        xlink:role="http://ibiblio.org/javafaq/">
    Cafe au Lait
  </NAME>
  <HOMESITE xlink:type="locator"
          xlink:href="http://ibiblio.org/javafaq/"
          xlink:role="http://ibiblio.org/"/>
  <MIRROR xlink:type="locator"
         xlink:title="Cafe au Lait Swedish Mirror"
         xlink:role="http://sunsite.kth.se/"
         xlink:href="http://sunsite.kth.se/javafaq"/>
  <MIRROR xlink:type="locator"
         xlink:title="Cafe au Lait German Mirror"
         xlink:role="http://sunsite.informatik.rwth-aachen.de/"
         xlink:href=
          "http://sunsite.informatik.rwth-aachen.de/javafaq/"/>
  <MIRROR xlink:type="locator"
         xlink:title="Cafe au Lait Swiss Mirror"
         xlink:role="http://sunsite.cnlab-switch.ch/"
         xlink:href="http://sunsite.cnlab-switch.ch/javafaq/"/>
</WEBSITE>

As always, in valid documents, the XLink elements and all their possible attributes must be declared in the DTD. For example, Listing 19-2 is a DTD that declares the WEBSITE, HOMESITE, NAME, and MIRROR elements as used in the example above, as well as their attributes:

Listing 19-2: A DTD that declares the WEBSITE, NAME, HOMESITE, and MIRROR elements

<!ELEMENT WEBSITE (NAME, HOMESITE, MIRROR*) >
<!ATTLIST WEBSITE
  xmlns:xlink  CDATA     #FIXED  "http://www.w3.org/1999/xlink"
  xlink:type  (extended) #FIXED  "extended"
  xlink:title  CDATA     #IMPLIED
  xlink:role   CDATA     #IMPLIED
>
<!ELEMENT NAME (#PCDATA)>
<!ATTLIST NAME
   xlink:type  (resource) #FIXED    "resource"
   xlink:role   CDATA     #IMPLIED
   xlink:title  CDATA     #IMPLIED
>
<!ELEMENT HOMESITE (#PCDATA)>
<!ATTLIST HOMESITE
   xlink:type  (locator)  #FIXED    "locator"
   xlink:href   CDATA     #REQUIRED
   xlink:role   CDATA     #IMPLIED
   xlink:title  CDATA     #IMPLIED
>
<!ELEMENT MIRROR (#PCDATA)>
<!ATTLIST MIRROR
   xlink:type  (locator)  #FIXED    "locator"
   xlink:href   CDATA     #REQUIRED
   xlink:role   CDATA     #IMPLIED
   xlink:title  CDATA     #IMPLIED
>

Another Shortcut for the DTD

If you have many extended link, resource, and locator elements, it may be advantageous to define the common attributes in parameter entities in the DTD, which you can reuse in different elements. For example:

<!ENTITY % extended.att
  "xlink:type   CDATA    #FIXED 'extended'
   xmlns:xlink  CDATA    #FIXED 'http://www.w3.org/1999/xlink'
   xlink:role   CDATA    #IMPLIED
   xlink:title  CDATA    #IMPLIED"
>
<!ENTITY % resource.att
  "xlink:type (resource) #FIXED  'resource'
   xlink:href    CDATA   #REQUIRED
   xlink:role    CDATA   #IMPLIED
   xlink:title   CDATA   #IMPLIED"
>
<!ENTITY % locator.att
  "xlink:type (locator)  #FIXED  'locator'
   xlink:href    CDATA   #REQUIRED
   xlink:role    CDATA   #IMPLIED
   xlink:title   CDATA   #IMPLIED"
>
<!ELEMENT WEBSITE (HOMESITE, MIRROR*) >
<!ATTLIST WEBSITE
   %extended.att;
>
<!ELEMENT NAME (#PCDATA)>
<!ATTLIST NAME
   %resource.att;
>
<!ELEMENT HOMESITE (#PCDATA)>
<!ATTLIST HOMESITE
   %locator.att;
>
<!ELEMENT MIRROR (#PCDATA)>
<!ATTLIST MIRROR
   %locator.att;
>

Arcs

The xlink:show and xlink:actuate attributes of a simple link define how and when a link is traversed. Extended links are a little more complicated because they provide many different possible traversal paths. For example in an extended link with three resources, A, B, and C; there are nine different possible traversals. These are:

Each of these possible paths between resources can have different rules for when the link is traversed and what happens when it's traversed. These potential traversals are called arcs, and they're represented in XML by elements that have an xlink:type attribute with the value arc. Traversal rules are specified by attaching xlink:actuate and xlink:show attributes to arc elements. These attributes have the same values and meanings as they do for simple links. Applications can use arc elements to determine which traversals are and are not allowed and when a link is traversed.

An arc element also has an xlink:from attribute and an xlink:to attribute. The xlink:from attribute says which resource or resources the arc comes from. The xlink:to attribute says which resource or resources the arc goes to. They do this by matching the value of the xlink:label attributes on the various resources in the extended link. For instance, if the xlink:from attribute has the value A, and the xlink:to attribute has the value B, then the arc goes from the resource whose xlink:label has the value A to the resource whose xlink:label has the value B. Listing 19-3 demonstrates.

Listing 19-3: An extended link with arcs

<WEBSITE xmlns:xlink="http://www.w3.org/1999/xlink"
         xlink:type="extended" xlink:title="Cafe au Lait">
  <NAME xlink:type="resource" xlink:label="source">
    Cafe au Lait
  </NAME>
  <HOMESITE xlink:type="locator"
           xlink:href="http://ibiblio.org/javafaq/"
           xlink:label="us"/>
  <MIRROR xlink:type="locator"
         xlink:title="Cafe au Lait Swedish Mirror"
         xlink:label="se"
         xlink:href="http://sunsite.kth.se/javafaq"/>
  <MIRROR xlink:type="locator"
         xlink:title="Cafe au Lait German Mirror"
         xlink:label="sk"
         xlink:href="http://sunsite.informatik.rwth-aachen.de/javafaq/"/>
  <MIRROR xlink:type="locator"
         xlink:title="Cafe au Lait Swiss Mirror"
         xlink:label="ch"
         xlink:href="http://sunsite.cnlab-switch.ch/javafaq/"/>
  <CONNECTION xlink:type="arc" xlink:from="source"
              xlink:to="ch"    xlink:show="replace"
              xlink:actuate="onRequest"/>
  <CONNECTION xlink:type="arc" xlink:from="source"
              xlink:to="us"    xlink:show="replace"
              xlink:actuate="onRequest"/>
  <CONNECTION xlink:type="arc" xlink:from="source"
              xlink:to="se"    xlink:show="replace"
              xlink:actuate="onRequest"/>
  <CONNECTION xlink:type="arc" xlink:from="source"
              xlink:to="sk"    xlink:show="replace"
              xlink:actuate="onRequest"/>
</WEBSITE>

The first CONNECTION element above defines an arc from the resource with the label "source" to the resource with the label "ch". The second CONNECTION element defines an arc from the resource with the label "source" to the resource with the label "us", and so on. Figure 19-3 diagrams this link with ovals representing the resources and arrows representing the arcs. This is the same as Figure 19-2, but now connections have been added between resources as specified by the arc elements.

Image: 19\picture5.jpg

Figure 19-3: An extended link with one local and four remote resources and arcs going from the local resource to each of the remote resources

In this case, each xlink:arc element defines exactly one connection because the target and source labels aren't shared by multiple resources. However, this isn't necessarily the case. Each arc goes from exactly one resource to exactly one other resource. However, a single arc element may actually describe multiple arcs. If more than one resource has the xlink:label A, then xlink:from="A" and xlink:to="B" defines multiple arcs from all resources with the label A to the resource with label B. If more than one resource has the label B, then arcs go from all resources with the label A to all resources with label B. For instance, consider the WEBSITE element in Listing 19-4:

Listing 19-4: Labels can be shared between resources

<WEBSITE xmlns:xlink="http://www.w3.org/1999/xlink"
         xlink:type="extended" xlink:title="Cafe au Lait">
  <NAME xlink:type="resource" xlink:label="source">
    Cafe au Lait
  </NAME>
  <HOMESITE xlink:type="locator"
            xlink:href="http://ibiblio.org/javafaq/"
            xlink:label="home"/>
  <MIRROR xlink:type="locator"
          xlink:title="Cafe au Lait Swedish Mirror"
          xlink:label="mirror"
          xlink:href="http://sunsite.kth.se/javafaq"/>
  <MIRROR xlink:type="locator"
          xlink:title="Cafe au Lait Slovakian Mirror"
          xlink:label="mirror"
          xlink:href="http://sunsite.informatik.rwth-aachen.de/javafaq/"/>
  <MIRROR xlink:type="locator"
         xlink:title="Cafe au Lait Swiss Mirror"
         xlink:label="mirror"
         xlink:href="http://sunsite.cnlab-switch.ch/javafaq/"/>
  <CONNECTION xlink:type="arc"  xlink:from="source"
              xlink:to="mirror" xlink:show="replace"
              xlink:actuate="onRequest"/>
</WEBSITE>

Here, the "mirror" label is shared by three different elements and the single arc element defines three arcs: One from the source to the Swedish mirror, one from the source to the Swiss mirror, and one from the source to the German mirror. Figure 19-4 diagrams this. It's very similar to Figure 19-3 except that the link between the NAME element and the home site at http://ibiblio.org/javafaq/ is missing. Because the HOMESITE has a different label, it isn't connected by the single arc element.

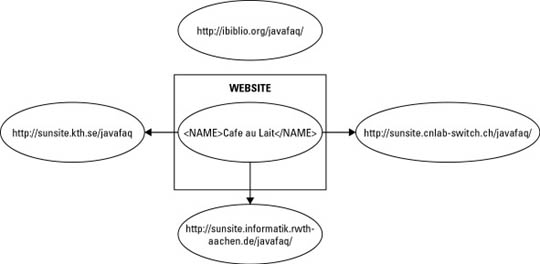

Image: 19\picture7.jpg

Figure 19-4: An extended link with one local and four remote resources and three arcs going from the local resource to each of the mirror resources

Although I don't recommend it, you can omit either the xlink:from attribute, the xlink:to attribute, or both from an arc element. In this case, all resources participating in the link, both local and remote, take the place of the missing attribute. For instance, consider the WEBSITE element in Listing 19-5.

Listing 19-5: An omitted to attribute

<WEBSITE xmlns:xlink="http://www.w3.org/1999/xlink"
         xlink:type="extended" xlink:title="Cafe au Lait">
  <NAME xlink:type="resource" xlink:label="source">
    Cafe au Lait
  </NAME>
  <HOMESITE xlink:type="locator"
            xlink:href="http://ibiblio.org/javafaq/"
            xlink:label="us"/>
  <MIRROR xlink:type="locator"
          xlink:title="Cafe au Lait Swedish Mirror"
          xlink:label="se"
          xlink:href="http://sunsite.kth.se/javafaq"/>
  <MIRROR xlink:type="locator"
          xlink:title="Cafe au Lait Slovakian Mirror"
          xlink:label="sk"
          xlink:href="http://sunsite.informatik.rwth-aachen.de/javafaq/"/>
  <MIRROR xlink:type="locator"
          xlink:title="Cafe au Lait Swiss Mirror"
          xlink:label="ch"
         xlink:href="http://sunsite.cnlab-switch.ch/javafaq/"/>
  <xlink:arc from="source" show="new" actuate="onRequest"/>
  <CONNECTION xlink:type="arc" xlink:from="source"
              xlink:show="replace" xlink:actuate="onRequest"/>
</WEBSITE>

Its single arc element is missing the xlink:to attribute. Consequently this extended link includes five arcs — one from the source to us, three from the source to each of the mirrors, and one from the source to itself. All arcs start at the NAME element because the xlink:from attribute is present and so specifies. Figure 19-5 diagrams this. It's very similar to Figure 19-3 except that there's now an extra circular arc from the NAME element to itself.

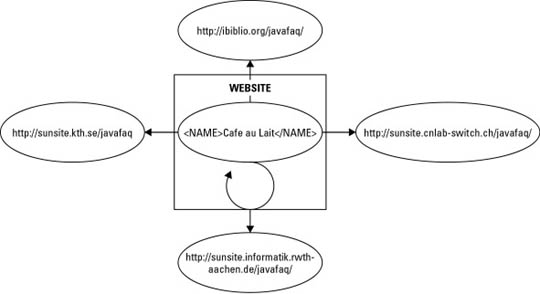

Image: 19\picture9.jpg

Figure 19-5: An extended link with one local and four remote resources and five arcs going from the local resource to each of the resources, including to itself

As usual, if the document has a DTD, then to be valid all the attributes and elements must be fully declared. Listing 19-6 is a DTD fragment that describes the above WEBSITE element.

Listing 19-6: A DTD for the WEBSITE extended link

<!ELEMENT WEBSITE (HOMESITE, MIRROR*, xlink:arc*) >
<!ATTLIST WEBSITE
  xmlns:xlink  CDATA  #FIXED "http://www.w3.org/1999/xlink"
  xlink:type  (extended) #FIXED  "extended"
  xlink:title  CDATA     #IMPLIED
  xlink:role   CDATA     #IMPLIED
>
<!ELEMENT HOMESITE (#PCDATA)>
<!ATTLIST HOMESITE
   xlink:type     (locator) #FIXED  "locator"
   xlink:href      CDATA    #REQUIRED
   xlink:label     CDATA    #IMPLIED
   xlink:role      CDATA    #REQUIRED
   xlink:title     CDATA    #IMPLIED
>
<!ELEMENT MIRROR (#PCDATA)>
<!ATTLIST MIRROR
   xlink:type     (locator) #FIXED  "locator"
   xlink:href      CDATA    #REQUIRED
   xlink:label     CDATA    #IMPLIED
   xlink:role      CDATA    #REQUIRED
   xlink:title     CDATA    #IMPLIED
>
<!ELEMENT xlink:arc EMPTY>
<!ATTLIST CONNECTION
  xlink:type    (arc)                #FIXED   "arc"
  xlink:from     CDATA               #IMPLIED
  xlink:to       CDATA               #IMPLIED
  xlink:show    (replace)            #IMPLIED "replace"
  xlink:actuate (onRequest | onLoad) #IMPLIED "onRequest"
>

Out-of-Line Links

Inline links, such as the familiar A element from HTML, are themselves part of the source or target of the link. Generally, they link from the document that they're part of to some other document. However, they can also link to a different part of the same document. The source of the link, that is the blue underlined text, is included inside the A element that defines the link. Most simple links are inline.

Extended links can also be out-of-line. An out-of-line link does not contain any part of any of the resources it connects. Instead, the links are stored in a separate document called the linkbase. For example, you might use a linkbase to maintain a slide show where each slide requires next and previous links. By changing the order of the slides in the linkbase, you can change the targets of the previous and next links on each page without having to edit the slides themselves.

Out-of-line links also allow you to add links to and from documents that can't be modified, such as a page on someone else's Web site. For instance, media watchdog groups such as FAIR (http://www.fair.org/) and AIM (http://www.aim.org/) could put out-of-line links from the New York Times editorial page to analyses of those editorials. The links would only be visible to users who loaded the right linkbase, however.

Finally, out-of-line links allow you to add links to different parts of non-XML content. For instance, you could link to the third minute of a QuickTime movie, even though the movie doesn't contain any attributes or elements that would normally be used to identify the linked position.

For example, a list of mirror sites for a document such as Listing 19-6 might be stored in a separate file on a Web server in a known location where browsers can find and query it to determine the nearest mirror of a page they're looking for. The out-of-line-ness, however, is that this element does not appear in the document from which the link is activated.

This expands the abstraction of style sheets into the linking domain. A style sheet is completely separate from the document it describes and yet provides rules that modify how the document is presented to the reader. A linkbase containing out-of-line links is separated from the documents it connects, yet it provides the necessary links to the reader. This has several advantages, including keeping more presentation-oriented markup separate from the document and allowing the linking of read-only documents.

Caution

I feel compelled to note that application support for out-of-line links is at best hypothetical at the time of this writing. Although I can show you how to write such links, their actual implementation and support is almost certainly some time away. Some of the details remain to be defined and likely will be implemented in vendor-specific fashions, at least initially. Still, they hold the promise of enabling more sophisticated linking than can be achieved with HTML.

For example, I've put the notes for a Java course I teach on my Web site. Figure 19-6 shows the introductory page. This particular course consists of 13 classes, each of which contains between 30 and 60 individual pages of notes. A table of contents page for each class is then provided that links to each note page used in that class. Each of the several hundred pages making up the entire site has links to the previous document (Previous link), the next document (Next link), and the table of contents (Top link) for the week, as shown in Figure 19-7. Putting it all together, this amounts to more than a thousand interconnections among this set of documents.

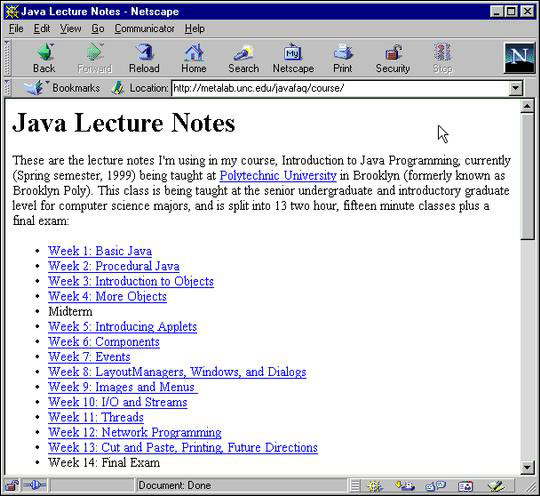

Image: 19\picture11.jpg

Figure 19-6: The introductory page for my class Web site shows 13 weeks of lecture notes.

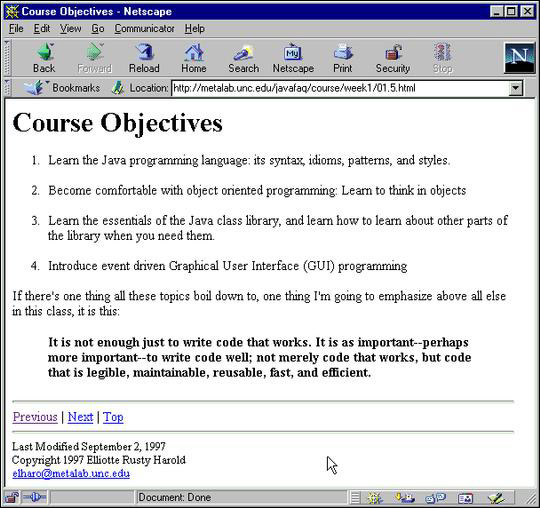

Image: 19\picture13.jpg

Figure 19-7: One page of lecture notes displaying the Previous, Next, and Top links

The possible interconnections grow exponentially with the number of documents. Every time a document is moved, renamed, or divided into smaller pieces, the links need to be adjusted on that page, on the page before it and after it in the set, and on the table of contents for the week. Quite frankly, this is a lot more work than it should be, and it tends to discourage necessary modifications and updates to the course notes.

The sensible thing to do, if HTML supported it, would be to store the connections in a separate document. Pages could then be reorganized by editing that one document. HTML links don't support this, but extended XLinks do. Listing 19-7 demonstrates one such a document. This document describes links from the main index page to the individual classes and vice versa.

Listing 19-7: An out-of-line extended link

<COURSE xmlns:xlink="http://www.w3.org/1999/xlink"
        xlink:type="extended">
  <TOC xlink:type="locator" xlink:href="index.xml"
       xlink:label="index"/>
  <CLASS xlink:type="locator" xlink:href="week1.xml"
         xlink:label="class"/>
  <CLASS xlink:type="locator" xlink:href="week2.xml"
         xlink:label="class"/>
  <CLASS xlink:type="locator" xlink:href="week3.xml"
         xlink:label="class"/>
  <CLASS xlink:type="locator" xlink:href="week4.xml"
         xlink:label="class"/>
  <CLASS xlink:type="locator" xlink:href="week5.xml"
         xlink:label="class"/>
  <CLASS xlink:type="locator" xlink:href="week6.xml"
         xlink:label="class"/>
  <CLASS xlink:type="locator" xlink:href="week7.xml"
         xlink:label="class"/>
  <CLASS xlink:type="locator" xlink:href="week8.xml"
         xlink:label="class"/>
  <CLASS xlink:type="locator" xlink:href="week9.xml"
         xlink:label="class"/>
  <CLASS xlink:type="locator" xlink:href="week10.xml"
         xlink:label="class"/>
  <CLASS xlink:type="locator" xlink:href="week11.xml"
         xlink:label="class"/>
  <CLASS xlink:type="locator" xlink:href="week12.xml"
         xlink:label="class"/>
  <CLASS xlink:type="locator" xlink:href="week13.xml"
         xlink:label="class"/>
  <CONNECTION xlink:type="arc" from="index" to="class"/>
  <CONNECTION xlink:type="arc" from="class" to="index"/>
</COURSE>

Listing 19-8 demonstrates another possible out-of-line extended link. This one provides previous and next links between the 13 classes.

Listing 19-8: An out-of-line extended link

<COURSE xmlns:xlink="http://www.w3.org/1999/xlink"
         xlink:type="extended">
  <CLASS xlink:type="locator" xlink:href="week1.xml"
         xlink:label="1"/>
  <CLASS xlink:type="locator" xlink:href="week2.xml"
         xlink:label="2"/>
  <CLASS xlink:type="locator" xlink:href="week3.xml"
         xlink:label="3"/>
  <CLASS xlink:type="locator" xlink:href="week4.xml"
         xlink:label="4"/>
  <CLASS xlink:type="locator" xlink:href="week5.xml"
         xlink:label="5"/>
  <CLASS xlink:type="locator" xlink:href="week6.xml"
         xlink:label="6"/>
  <CLASS xlink:type="locator" xlink:href="week7.xml"
         xlink:label="7"/>
  <CLASS xlink:type="locator" xlink:href="week8.xml"
         xlink:label="8"/>
  <CLASS xlink:type="locator" xlink:href="week9.xml"
         xlink:label="9"/>
  <CLASS xlink:type="locator" xlink:href="week10.xml"
         xlink:label="10"/>
  <CLASS xlink:type="locator" xlink:href="week11.xml"
         xlink:label="11"/>
  <CLASS xlink:type="locator" xlink:href="week12.xml"
         xlink:label="12"/>
  <CLASS xlink:type="locator" xlink:href="week13.xml"
         xlink:label="13"/>
  <!-- Previous Links -->
  <CONNECTION xlink:type="arc" xlink:from="2"  xlink:to="1"/>
  <CONNECTION xlink:type="arc" xlink:from="3"  xlink:to="2"/>
  <CONNECTION xlink:type="arc" xlink:from="4"  xlink:to="3"/>
  <CONNECTION xlink:type="arc" xlink:from="5"  xlink:to="4"/>
  <CONNECTION xlink:type="arc" xlink:from="6"  xlink:to="5"/>
  <CONNECTION xlink:type="arc" xlink:from="7"  xlink:to="6"/>
  <CONNECTION xlink:type="arc" xlink:from="8"  xlink:to="7"/>
  <CONNECTION xlink:type="arc" xlink:from="9"  xlink:to="8"/>
  <CONNECTION xlink:type="arc" xlink:from="10" xlink:to="9"/>
  <CONNECTION xlink:type="arc" xlink:from="11" xlink:to="10"/>
  <CONNECTION xlink:type="arc" xlink:from="12" xlink:to="11"/>
  <CONNECTION xlink:type="arc" xlink:from="13" xlink:to="12"/>
  <!-- Next Links -->
  <CONNECTION xlink:type="arc" xlink:from="1"  xlink:to="2"/>
  <CONNECTION xlink:type="arc" xlink:from="2"  xlink:to="3"/>
  <CONNECTION xlink:type="arc" xlink:from="3"  xlink:to="4"/>
  <CONNECTION xlink:type="arc" xlink:from="4"  xlink:to="5"/>
  <CONNECTION xlink:type="arc" xlink:from="5"  xlink:to="6"/>
  <CONNECTION xlink:type="arc" xlink:from="6"  xlink:to="7"/>
  <CONNECTION xlink:type="arc" xlink:from="7"  xlink:to="8"/>
  <CONNECTION xlink:type="arc" xlink:from="8"  xlink:to="9"/>
  <CONNECTION xlink:type="arc" xlink:from="9"  xlink:to="10"/>
  <CONNECTION xlink:type="arc" xlink:from="10" xlink:to="11"/>
  <CONNECTION xlink:type="arc" xlink:from="11" xlink:to="12"/>
  <CONNECTION xlink:type="arc" xlink:from="12" xlink:to="13"/>
</COURSE>

Now the topics can be reordered simply by rearranging what's connected to what in the out-of-line extended link. The course notes themselves don't have to be touched. However, there are a couple of pieces missing from this puzzle. The first is some notion of how or where in the individual week documents the links will be displayed. It would be easy enough to add <PREVIOUS/> and <NEXT/> tags to the individual week pages. The XPointers you'll learn about in the next chapter would allow you to select these elements in particular as the sources of outgoing links rather than the entire document.

A single XML document may contain multiple out-of-line extended links. Listings 19-7 and 19-8 could be combined into a single document. However, the XLink specification is relatively silent on exactly what the format of such a compound document should look like. About all it says is that such a document must be a well-formed XML document. An XLink processor would presumably read the entire document and extract and store any extended links it found there.

The final thing that's missing is some way for a browser or other application that's reading the individual pages to be informed that there is a separate linkbase elsewhere that it should read and parse so that it can show the links to the user. This is probably the area in which the specification is weakest. Ideally, it would be handled through some external mechanism such as HTTP headers. However, the only currently defined way to do this (which still isn't supported by any browsers or other software) is to add an extended link inside the documents the out-of-line link connects.

One of the arcs in this extended link has an xlink:arcrole attribute with the value http://www.w3.org/1999/xlink/properties/linkbase. The xlink:to attribute of this arc should identify a locator element that gives the URL of the linkbase. The xlink:actuate attribute of the arc determines whether the links are loaded automatically or whether a user request is required. For example, if Listing 19-7 and Listing 19-8 were found in a file at the URL http://ibiblio.org/javafaq/course/courselinks.xml, then this element might be included in the main page for the Java course notes:

<LINKBASE xlink:type="xlink:extended"
          xmlns:xlink="http://www.w3.org/1999/xlink">
  <SOURCE xlink:type="resource" xlink:label="source"/>
  <LINKS xlink:type="locator" xlink:label="linkbase"
         xlink:href=
          "http://ibiblio.org/javafaq/course/courselinks.xml"/>
  <LOAD  xlink:type="arc"
         xlink:arcrole=
          "http://www.w3.org/1999/xlink/properties/linkbase"
         xlink:from="source" xlink:to="linkbase"
         xlink:actuate="onLoad" />
</LINKBASE>

Of course, the problem with this approach is that it again requires that you be able to modify the documents before you can link them. At least in this case, however, it may be enough for the browser to load one such document to find the linkbase, so you may not need to modify every document the linkbase connects.

Summary

In this chapter, you learned about XLinks. In particular, you learned that:

In the next chapter, you learn how XPointers can be used to link not only to remote documents, but also to very specific elements in remote documents.


From XML Bible, Gold Edition by Elliotte Rusty Harold. Copyright © 2001 by Wiley Publishing, Inc. All rights reserved. Reproduced here by permission of the publisher.
[ Cafe con Leche | XML Bible Home Page | Order from amazon.com | Publisher Page ]
Copyright 2001, 2002 Elliotte Rusty Harold
elharo@metalab.unc.edu
Last Modified SEptember 19, 2003
